Timing Chain Guides No. 1 & No. 2

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check shoe for excessive wear or damage. If any malfunction is found, replace it.

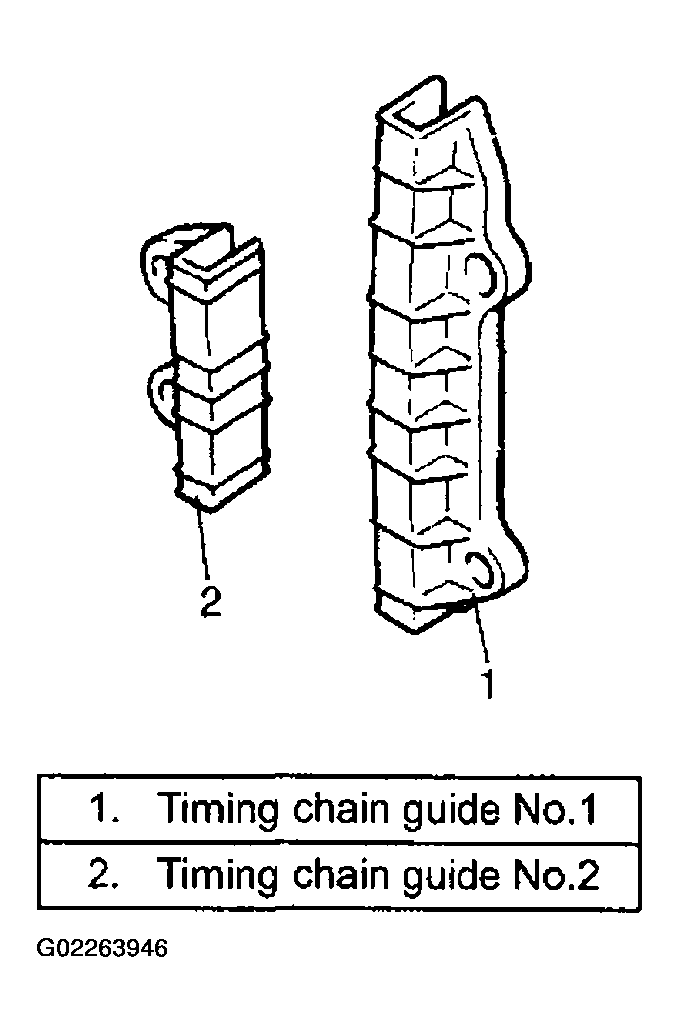

Fig 1: Checking Timing Chain Guides No. 1 & No. 2 Shoe

Courtesy of SUZUKI OF AMERICA CORP.
