1st Timing Chain Crankshaft Sprocket

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check teeth of sprocket for wear or damage. If any malfunction is found, replace it.

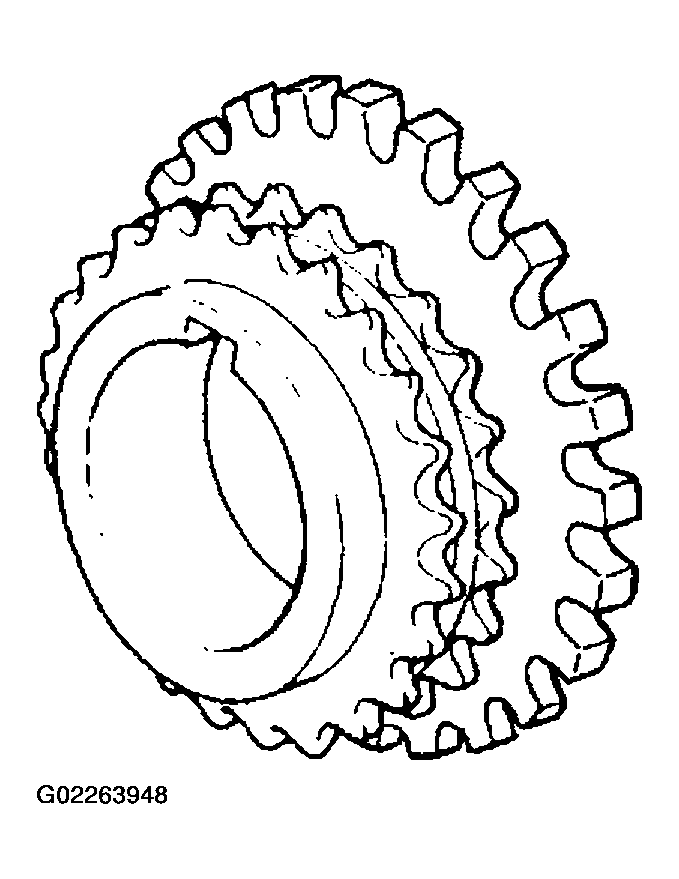

Fig 1: Checking 1st Timing Chain Crankshaft Sprocket

Courtesy of SUZUKI OF AMERICA CORP.
