Tie-Rod End Boot Check

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check boot for crack and damage and if any, replace it with a new one.

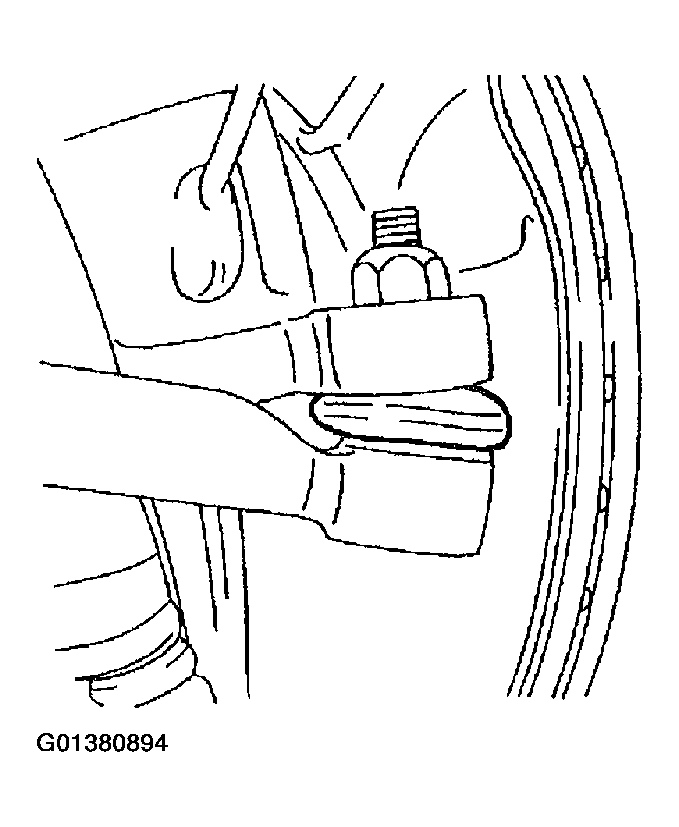

Fig 1: Identifying Tie-Rod End Boot
G01380894Courtesy of SUZUKI OF AMERICA CORP.
