Clutch Master Cylinder Disassembly & Assembly: Assembly

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Apply brake fluid to inside of piston assembly and cylinder body.
Install piston assembly into cylinder.

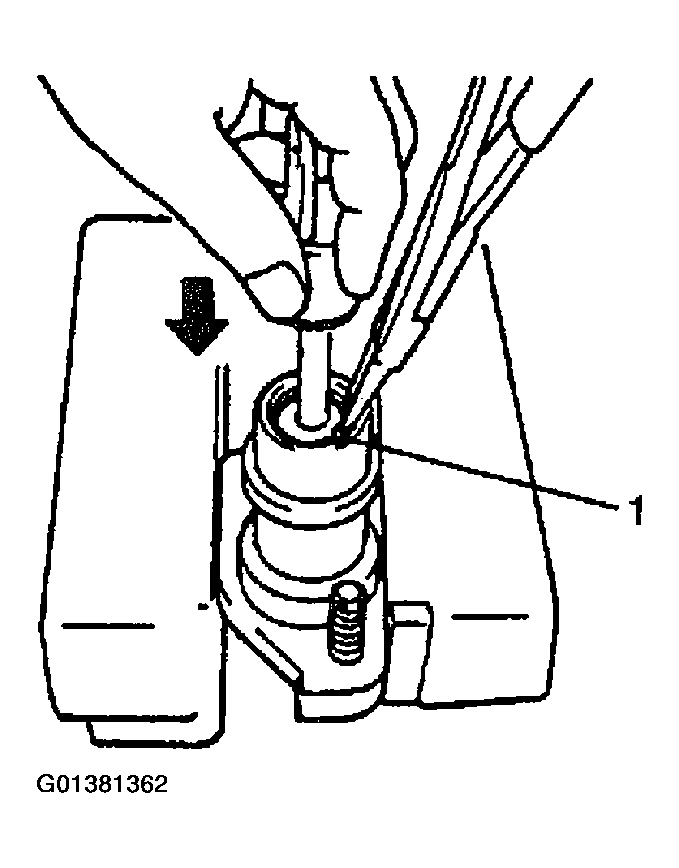

With piston pushed down, install circlip (1) as shown. And install boot.

Fig 1: Assembling Clutch Master Cylinder
Courtesy of SUZUKI OF AMERICA CORP.
Tighten lock nut to specified torque.
Tightening torque

Clevis lock nut (a): 10 N-m (1.0 kg-m, 7.5 Lb-ft)

Fig 2: Identifying Master Cylinder Push Rod / Clevis Assembly
Courtesy of SUZUKI OF AMERICA CORP.
For installation of master cylinder to vehicle, see CLUTCH MASTER CYLINDER REMOVAL & INSTALLATION .
