Clutch Disc

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Measure depth of rivet head depression, i.e. distance between rivet head and facing surface. If depression is found to have reached service limit at any of holes, replace disc assembly.

Rivet head depth

Standard: 1.6 mm (0.06 in.)
Service limit: 0.5 mm (0.02 in.)

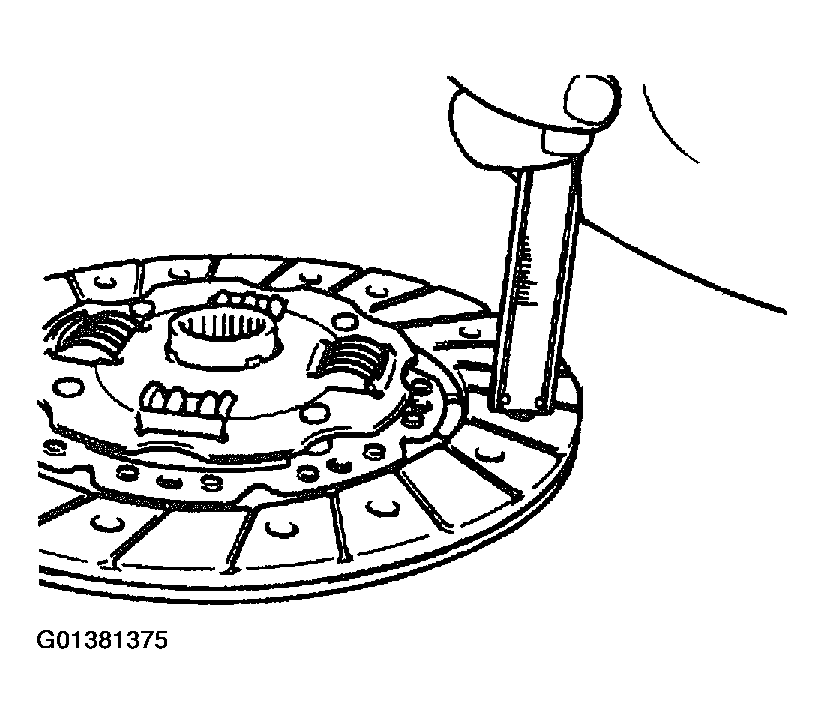

Fig 1: Measuring Depth Of Clutch Disc Rivet Head
Courtesy of SUZUKI OF AMERICA CORP.
