Cooling Fan Belt Removal & Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable at battery.
  2. Loosen adjusting bolt (1) and pivot bolt (2).
  3. Slacken belt by displacing fan pulley.
  4. Remove cooling fan. Just detach the fan / clutch from fan pulley.
  5. Remove cooling fan belt (3).

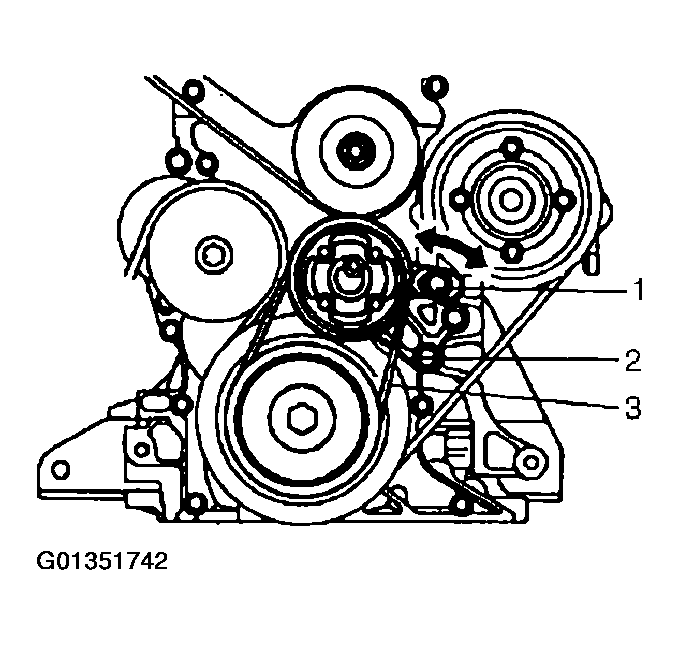

    Fig 1: Identifying Adjusting Bolt, Pivot Bolt & Cooling Fan Belt
    G01351742Courtesy of SUZUKI OF AMERICA CORP.
