Cooling Fan & Fan Clutch Inspection

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Inspect fluid coupling for oil leakage.

If necessary, replace fan clutch assembly. Do not disassemble clutch assembly.

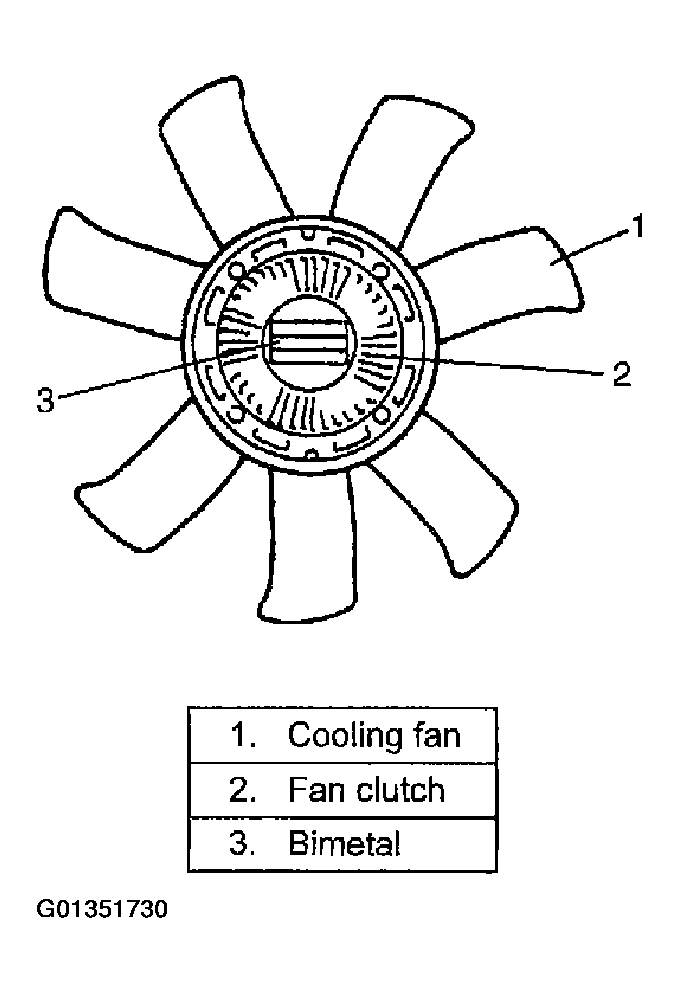

Fig 1: Identifying Cooling Fan & Cooling Fan Components
G01351730Courtesy of SUZUKI OF AMERICA CORP.
