Engine Symptom Diagnosis

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Perform troubleshooting referring to the followings when ECM has detected no DTC and no abnormality has been found in VISUAL INSPECTION  and ENGINE BASIC CHECK  .

Fig 1: Engine Symptom Diagnosis Chart (1 Of 6)
G02263330Courtesy of SUZUKI OF AMERICA CORP.

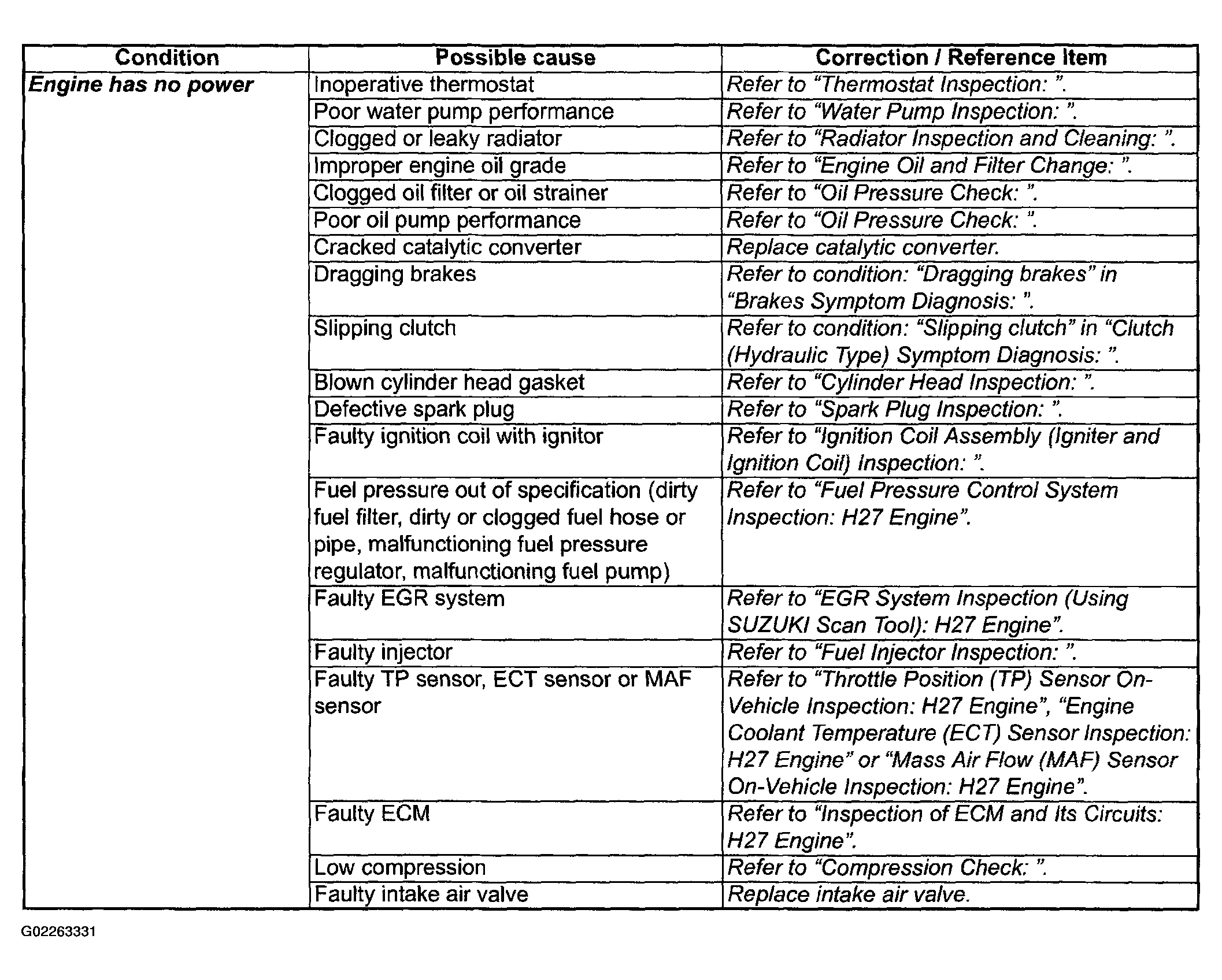

Fig 2: Engine Symptom Diagnosis Chart (2 Of 6)
G02263331Courtesy of SUZUKI OF AMERICA CORP.

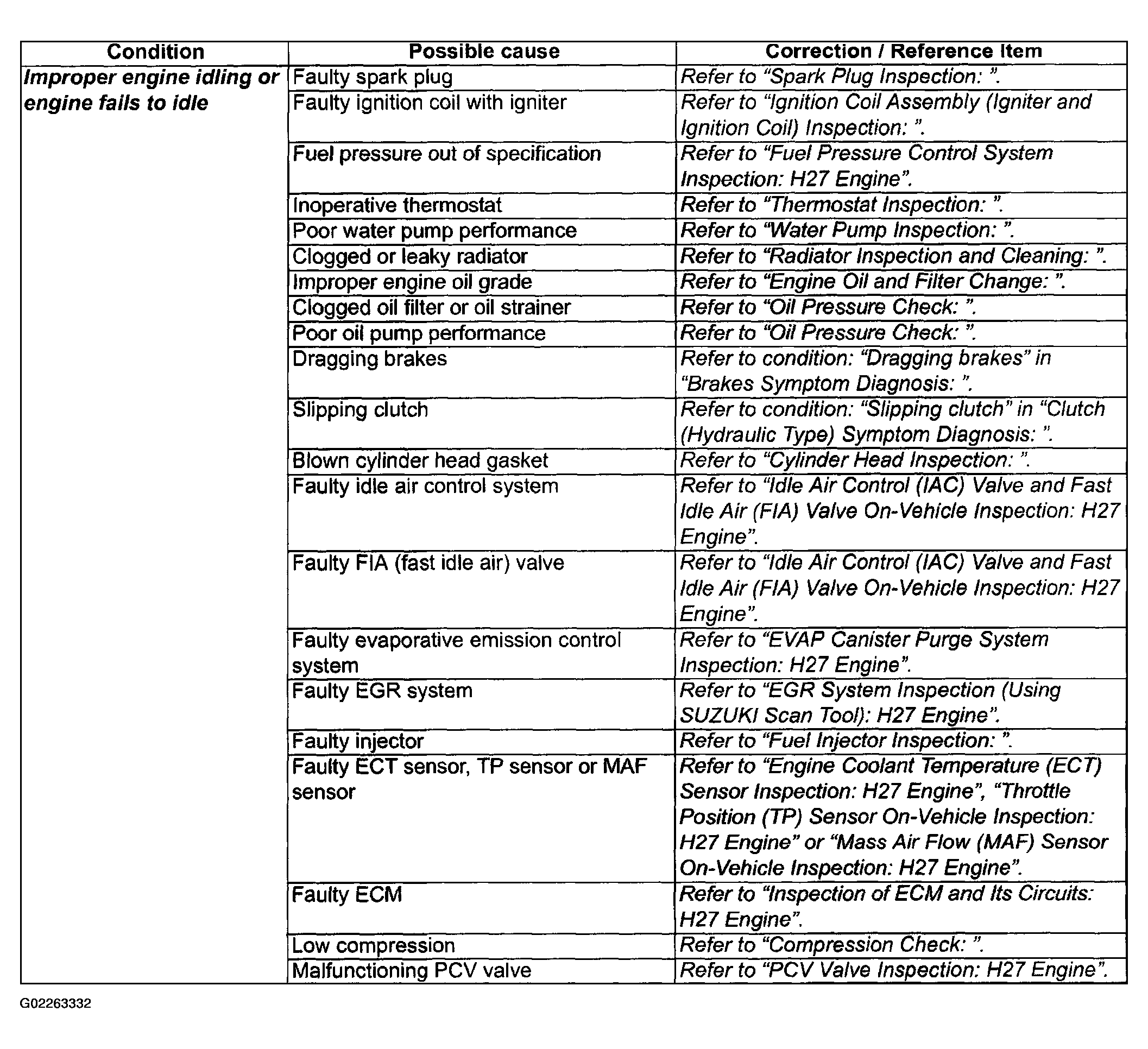

Fig 3: Engine Symptom Diagnosis Chart (3 Of 6)
G02263332Courtesy of SUZUKI OF AMERICA CORP.
Fig 4: Engine Symptom Diagnosis Chart (4 Of 6)
G02263333Courtesy of SUZUKI OF AMERICA CORP.
Fig 5: Engine Symptom Diagnosis Chart (5 Of 6)
G02263334Courtesy of SUZUKI OF AMERICA CORP.

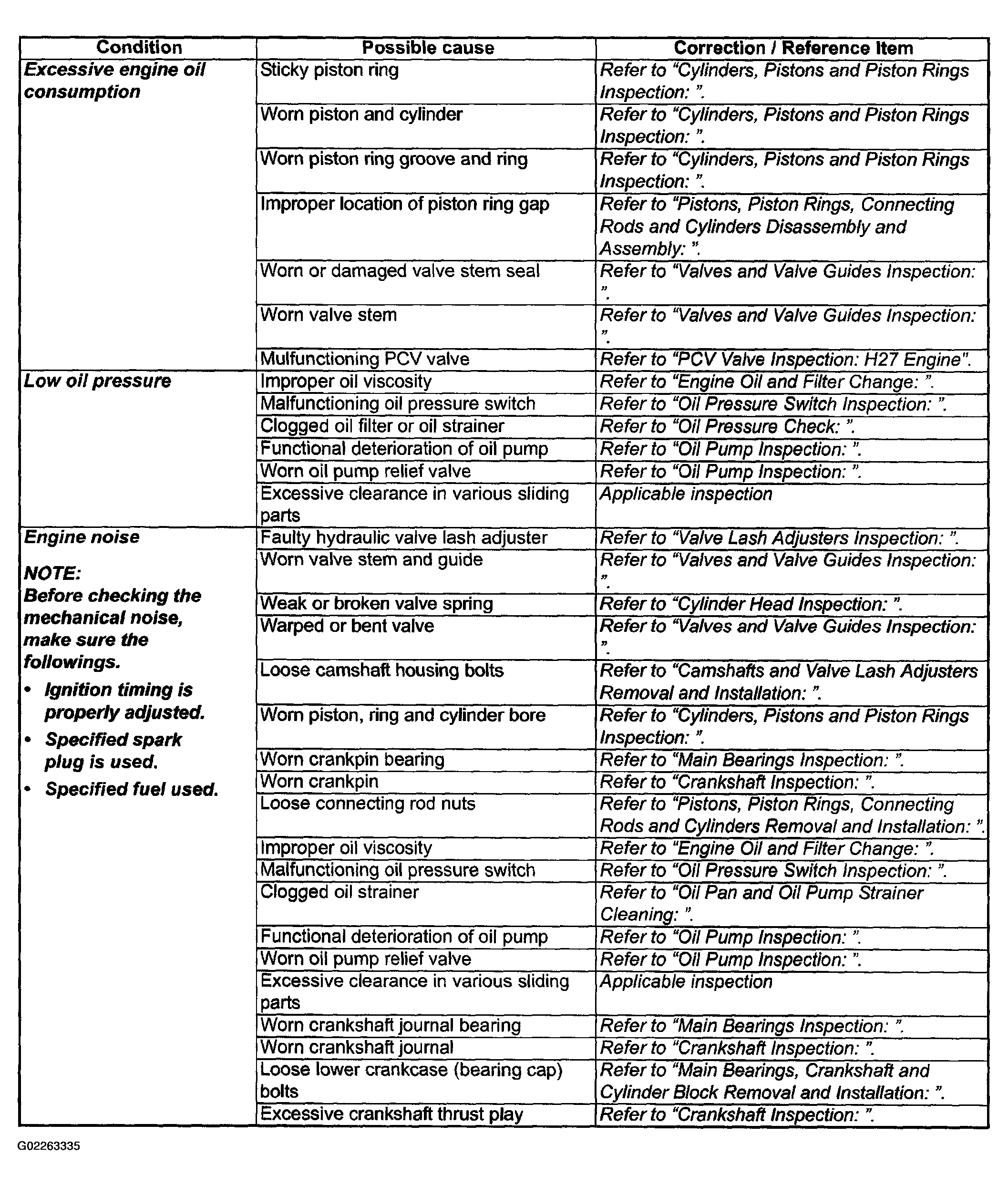

Fig 6: Engine Symptom Diagnosis Chart (6 Of 6)
G02263335Courtesy of SUZUKI OF AMERICA CORP.
