For A/T System (Only OBD-II Generic Scan Tool Is Displayed on the Following DTC(s) at the Same Time)

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

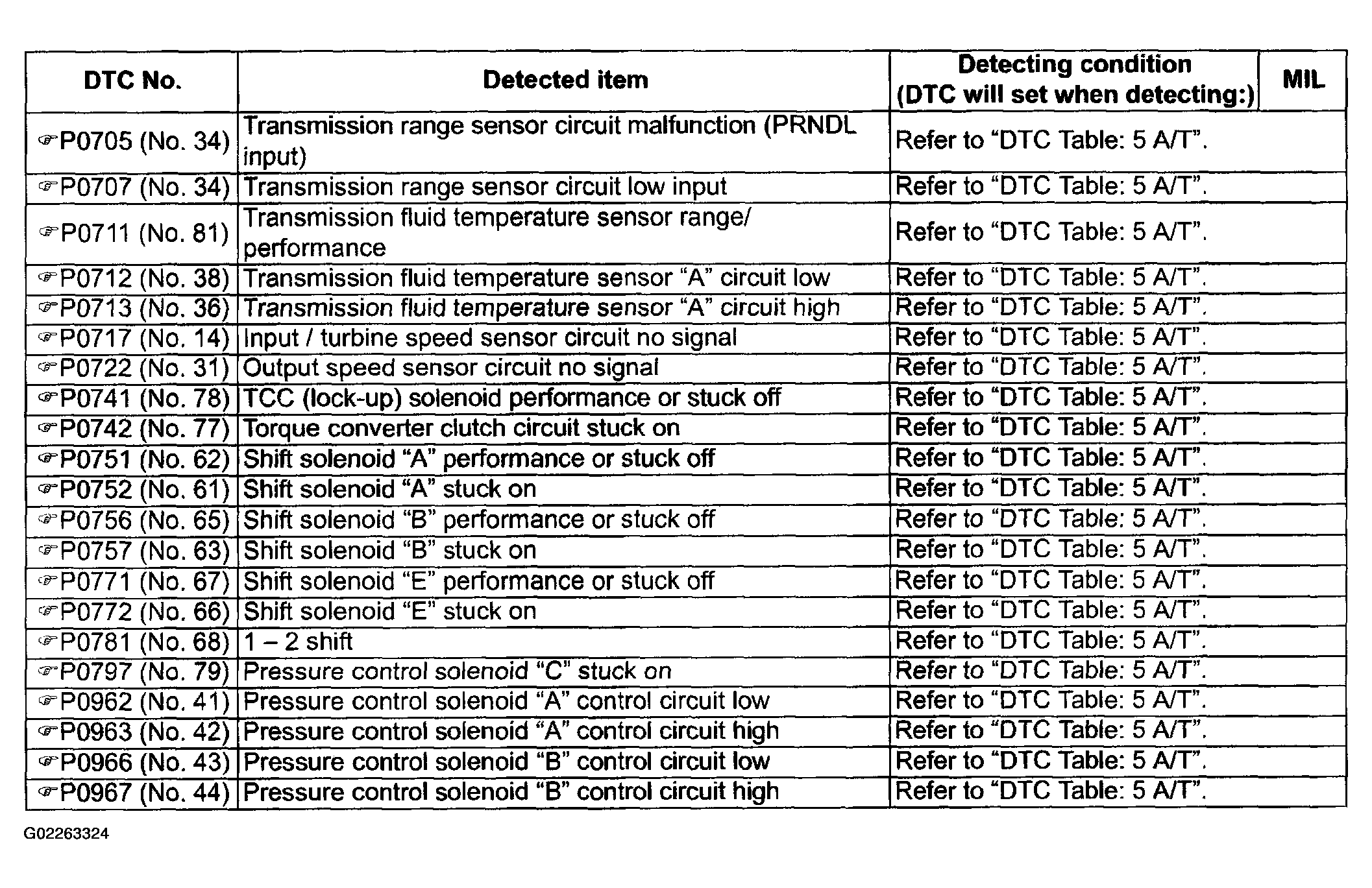

Fig 1: A/T System DTC Table (1 Of 2)
G02263324Courtesy of SUZUKI OF AMERICA CORP.

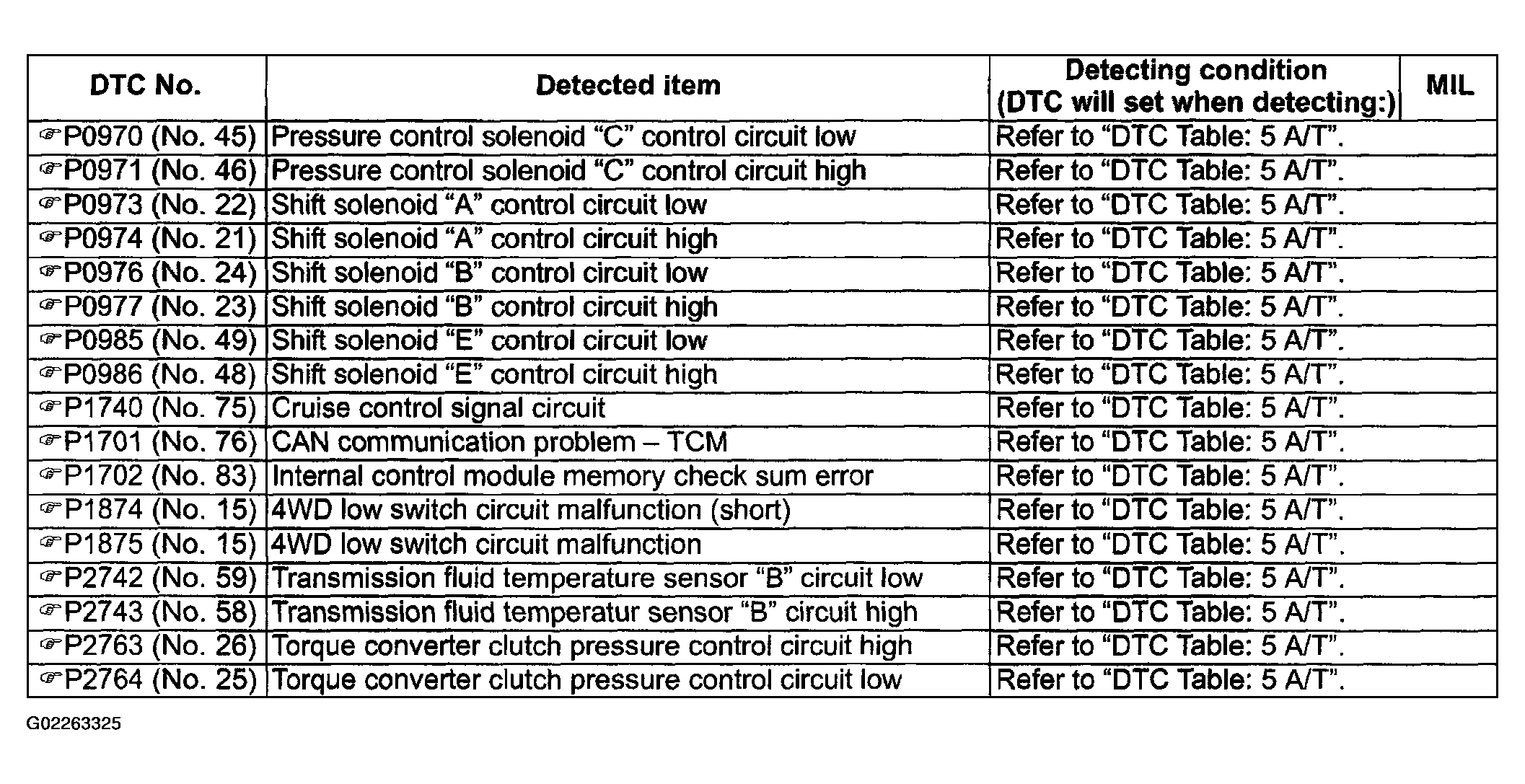

Fig 2: A/T System DTC Table (2 Of 2)
G02263325Courtesy of SUZUKI OF AMERICA CORP.
