DTC P1601: CAN Communication Error
>>
P1601 Troubleshooting
P1601 Troubleshooting
WARNING:
This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

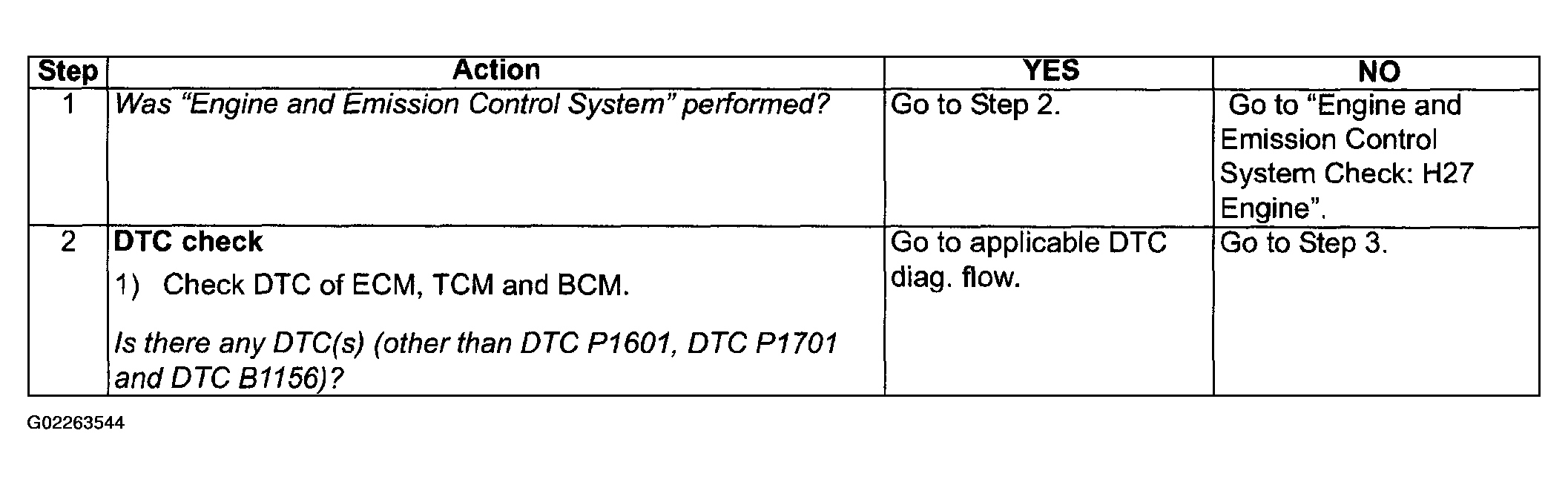

Fig 1: DTC P1601 Troubleshooting (1 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

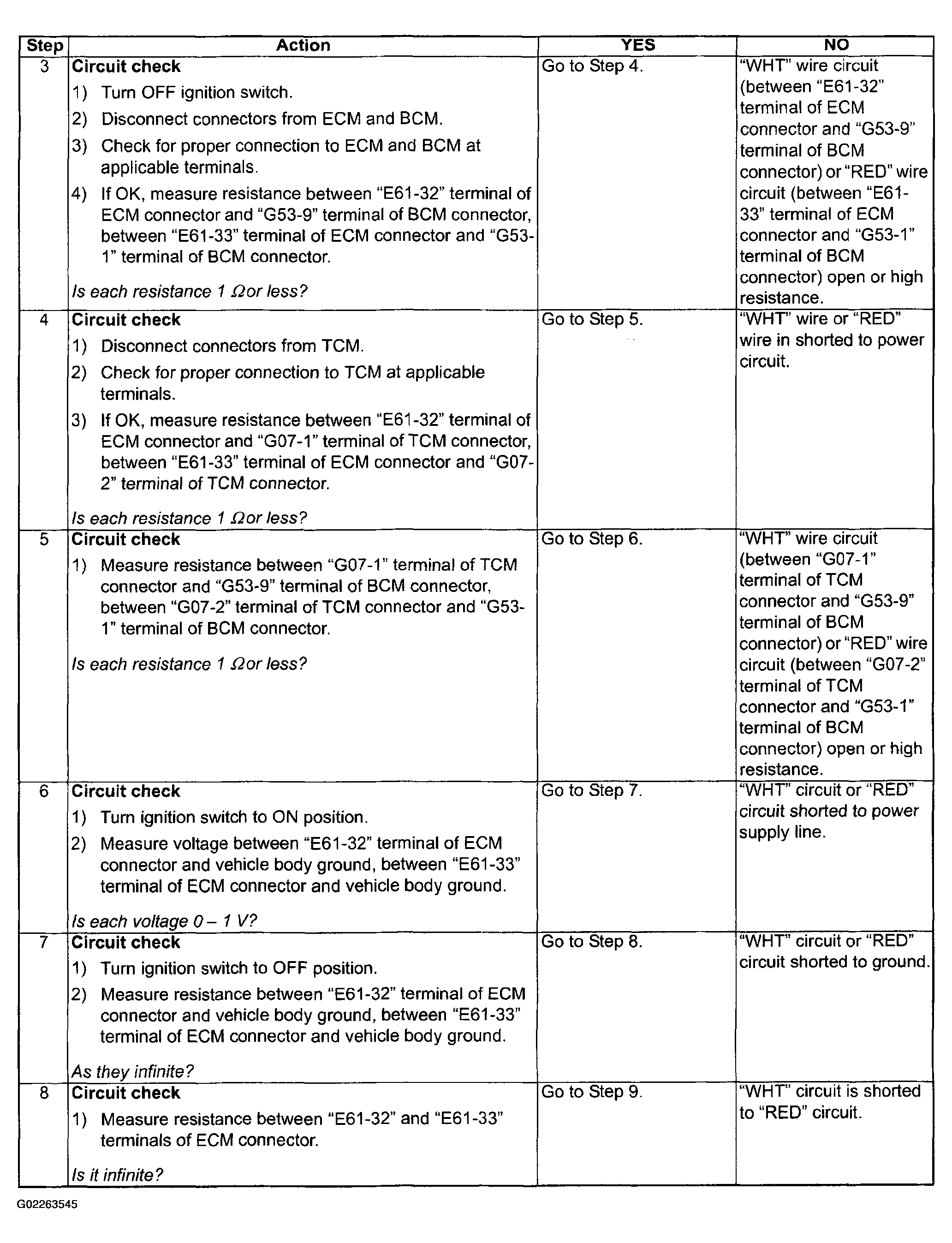

Fig 2: DTC P1601 Troubleshooting (2 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

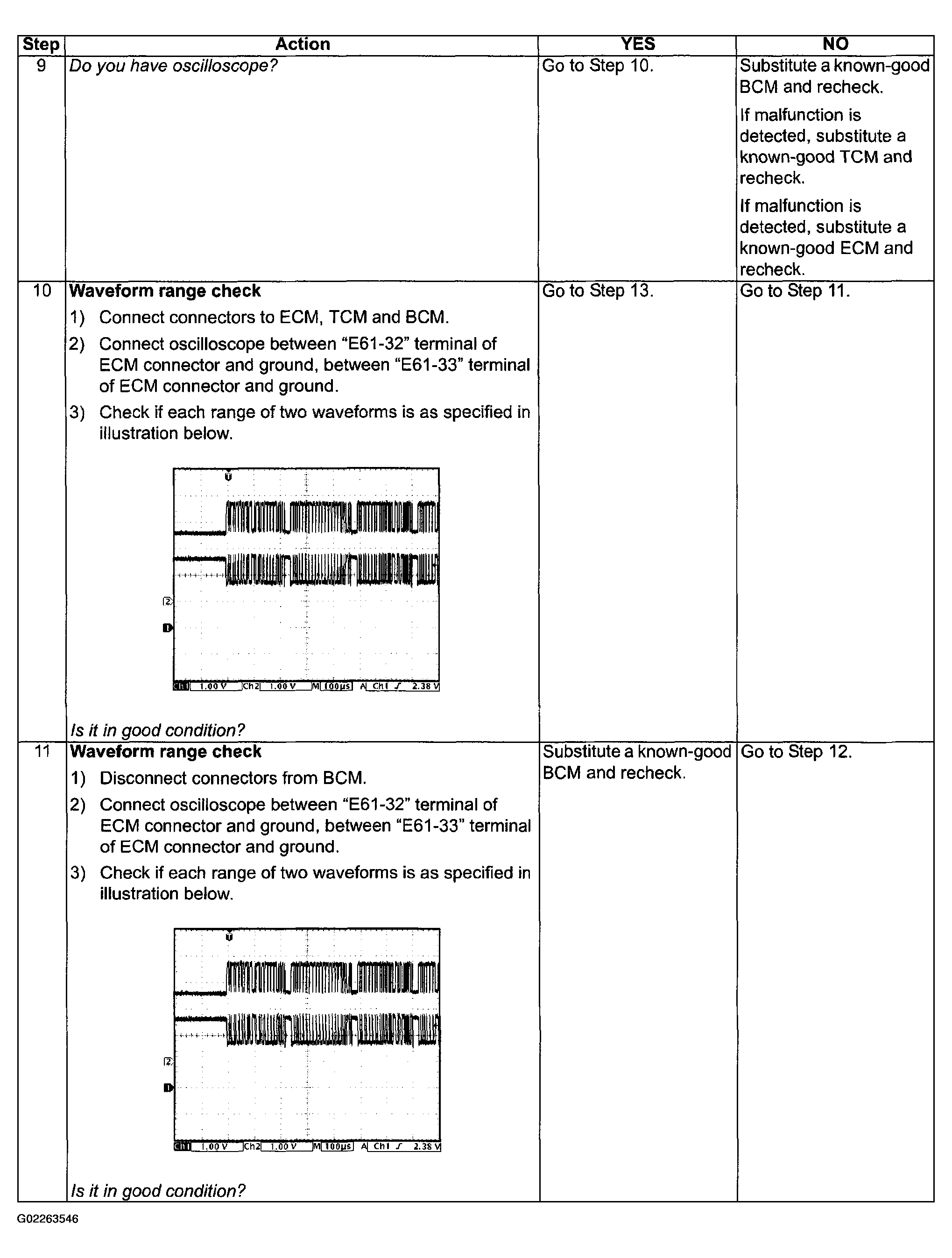

Fig 3: DTC P1601 Troubleshooting (3 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

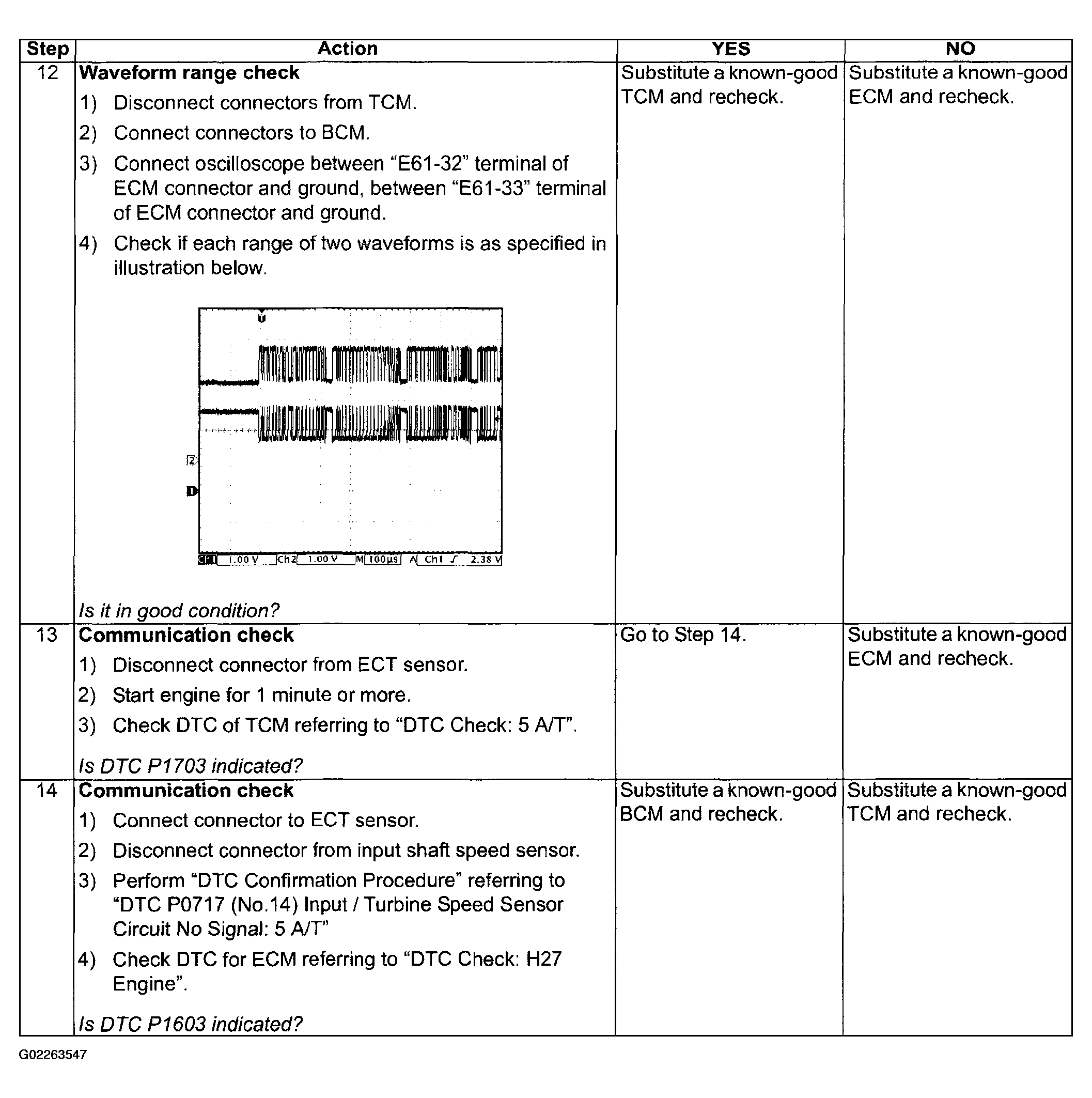

Fig 4: DTC P1601 Troubleshooting (4 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
