P0403 Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: DTC P0403 Troubleshooting (1 Of 2)
G02263463Courtesy of SUZUKI OF AMERICA CORP.

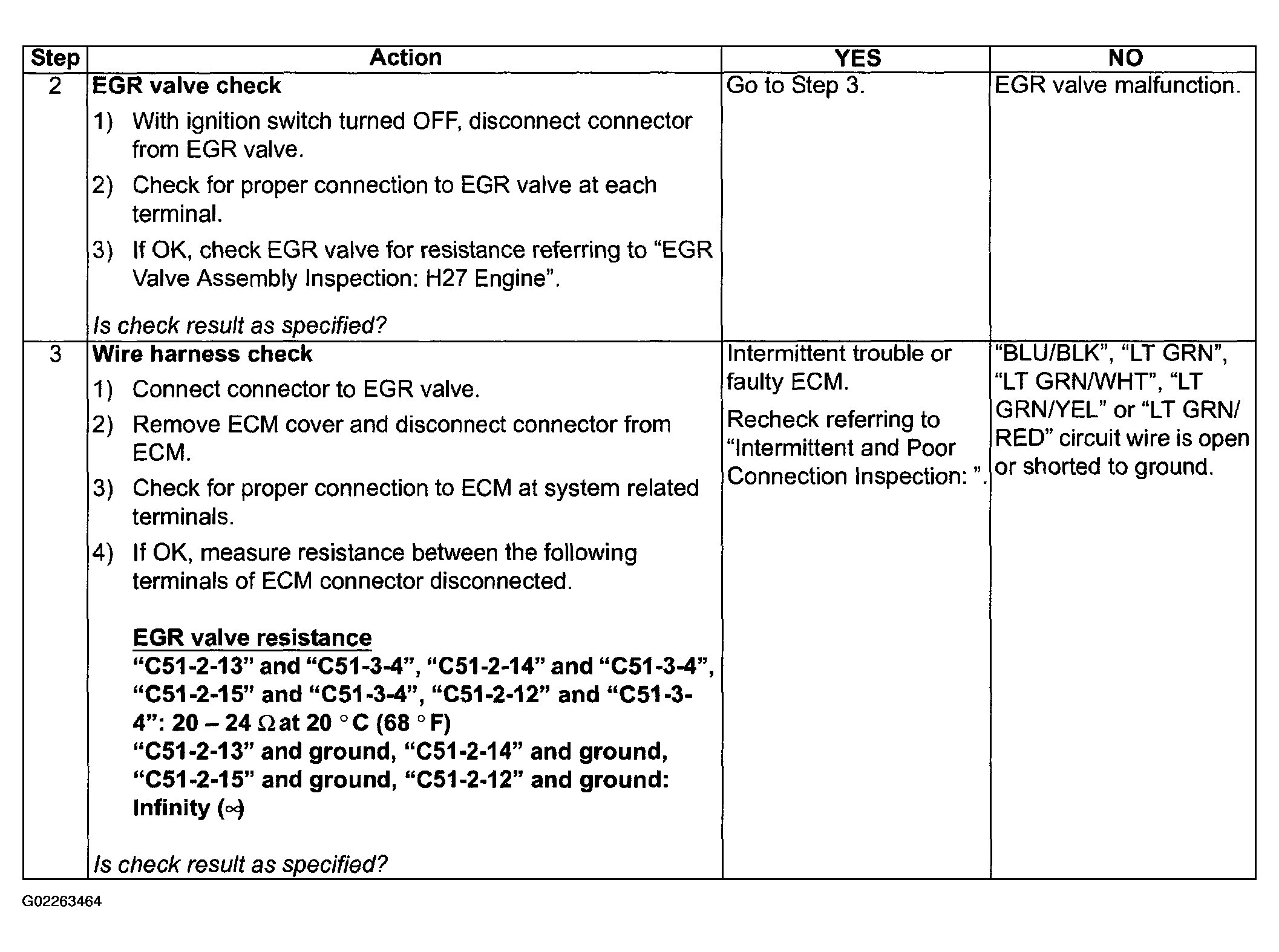

Fig 2: DTC P0403 Troubleshooting (2 Of 2)
G02263464Courtesy of SUZUKI OF AMERICA CORP.
