MIL Remains ON after Engine Starts: Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

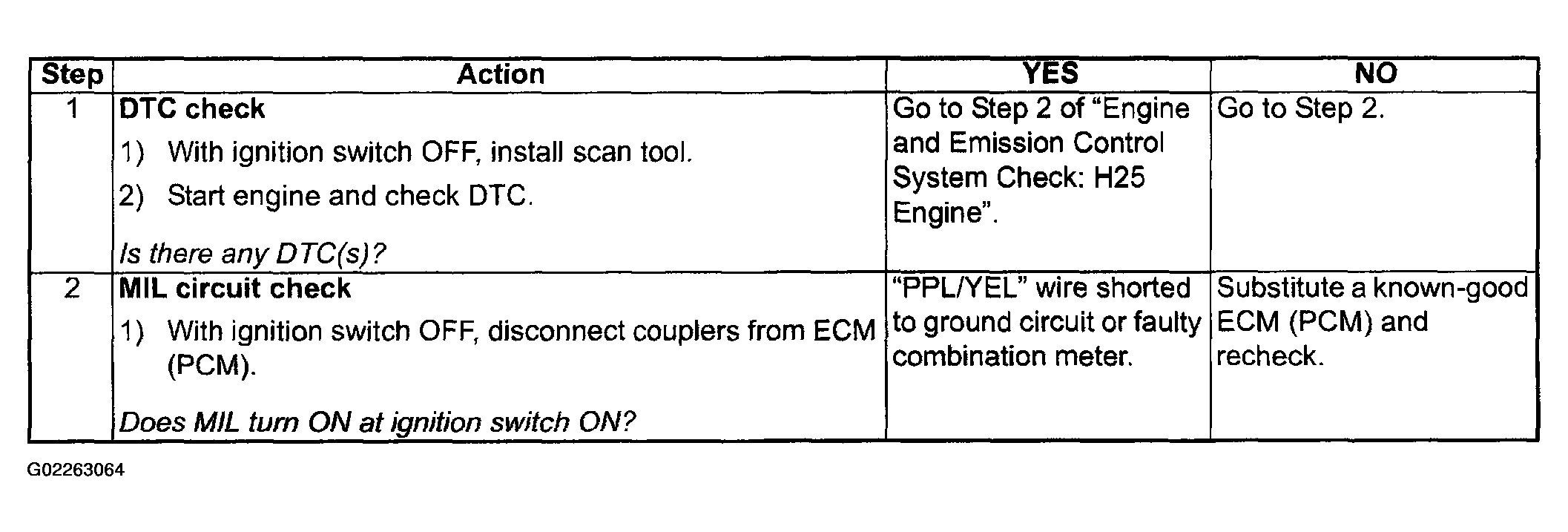

Fig 1: Troubleshooting
G02263064Courtesy of SUZUKI OF AMERICA CORP.
