MIL Does Not Light or MIL Dims at Ignition Switch ON Leaving Engine OFF but Engine Can Be Starting: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

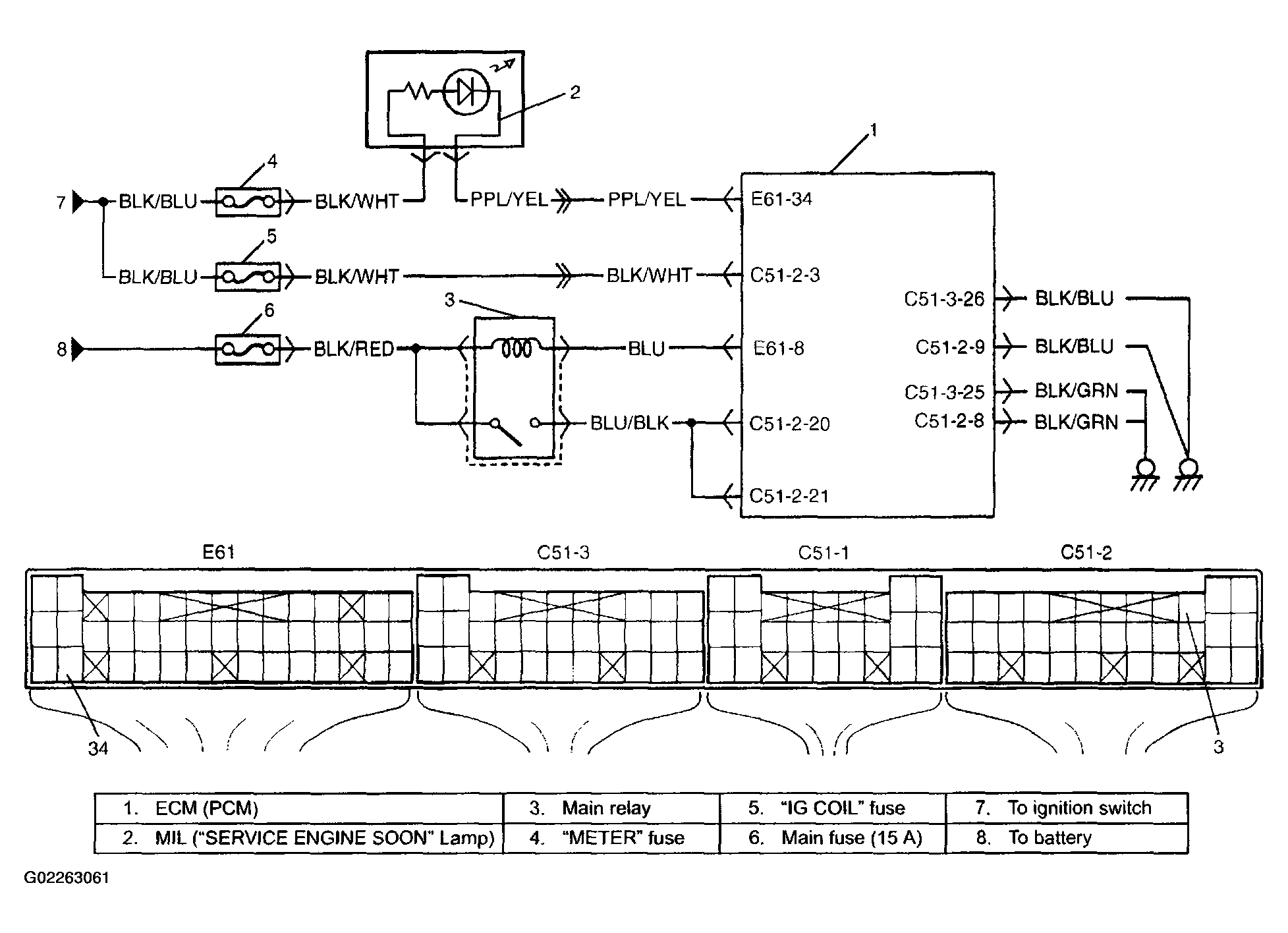

Fig 1: Wiring Diagram
G02263061Courtesy of SUZUKI OF AMERICA CORP.
