MIL Does Not Light at Ignition Switch ON & Engine Does Not Start though It Is Cranked Up: Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

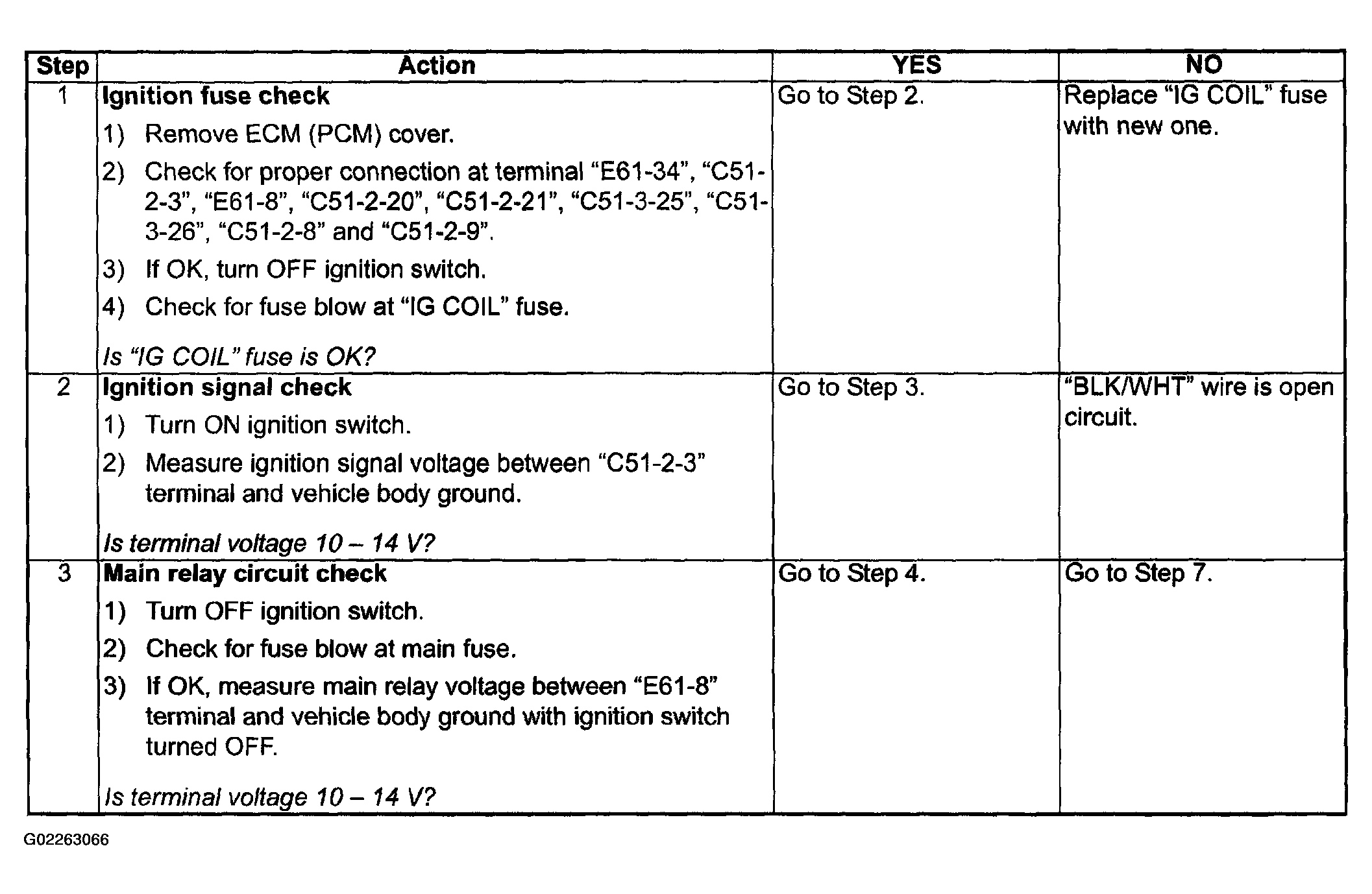

Fig 1: Troubleshooting (1 Of 2)
G02263066Courtesy of SUZUKI OF AMERICA CORP.

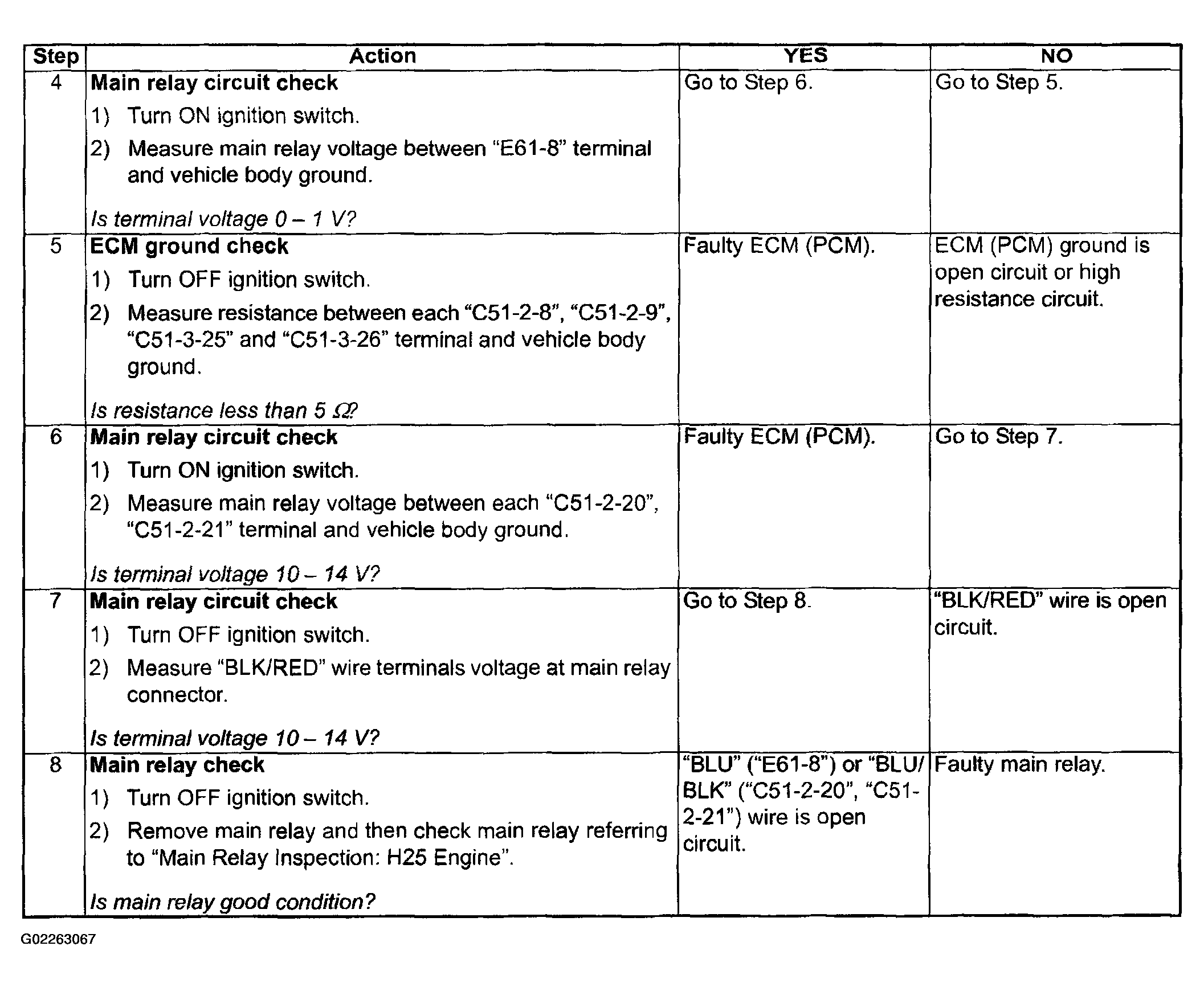

Fig 2: Troubleshooting (2 Of 2)
G02263067Courtesy of SUZUKI OF AMERICA CORP.
