System Diagram

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Special tool

(A):  09912-58441

(B):  09912-58431

(C):  09919-46010

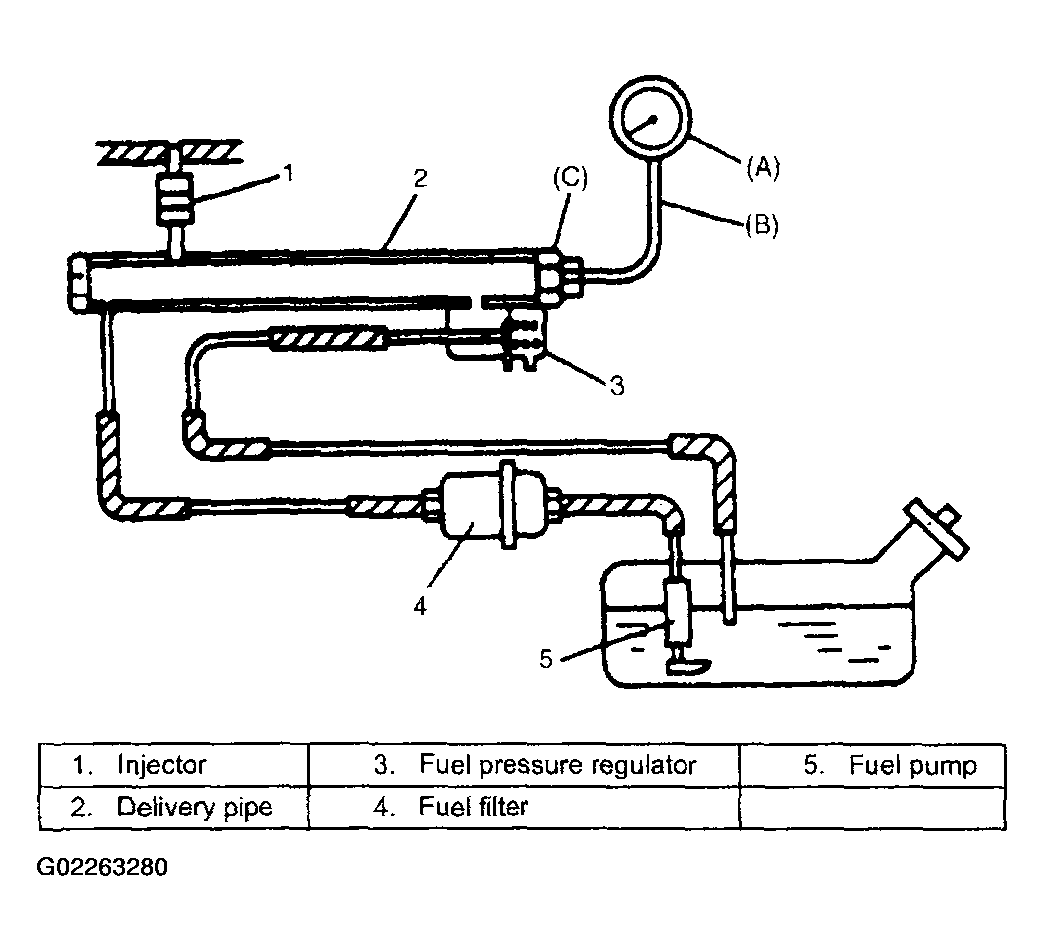

Fig 1: Fuel System Diagram
G02263280Courtesy of SUZUKI OF AMERICA CORP.
