Engine Symptom Diagnosis

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Perform troubleshooting referring to the following table when ECM (PCM) has detected no DTC and no abnormality has been found VISUAL INSPECTION  in and ENGINE BASIC CHECK  .

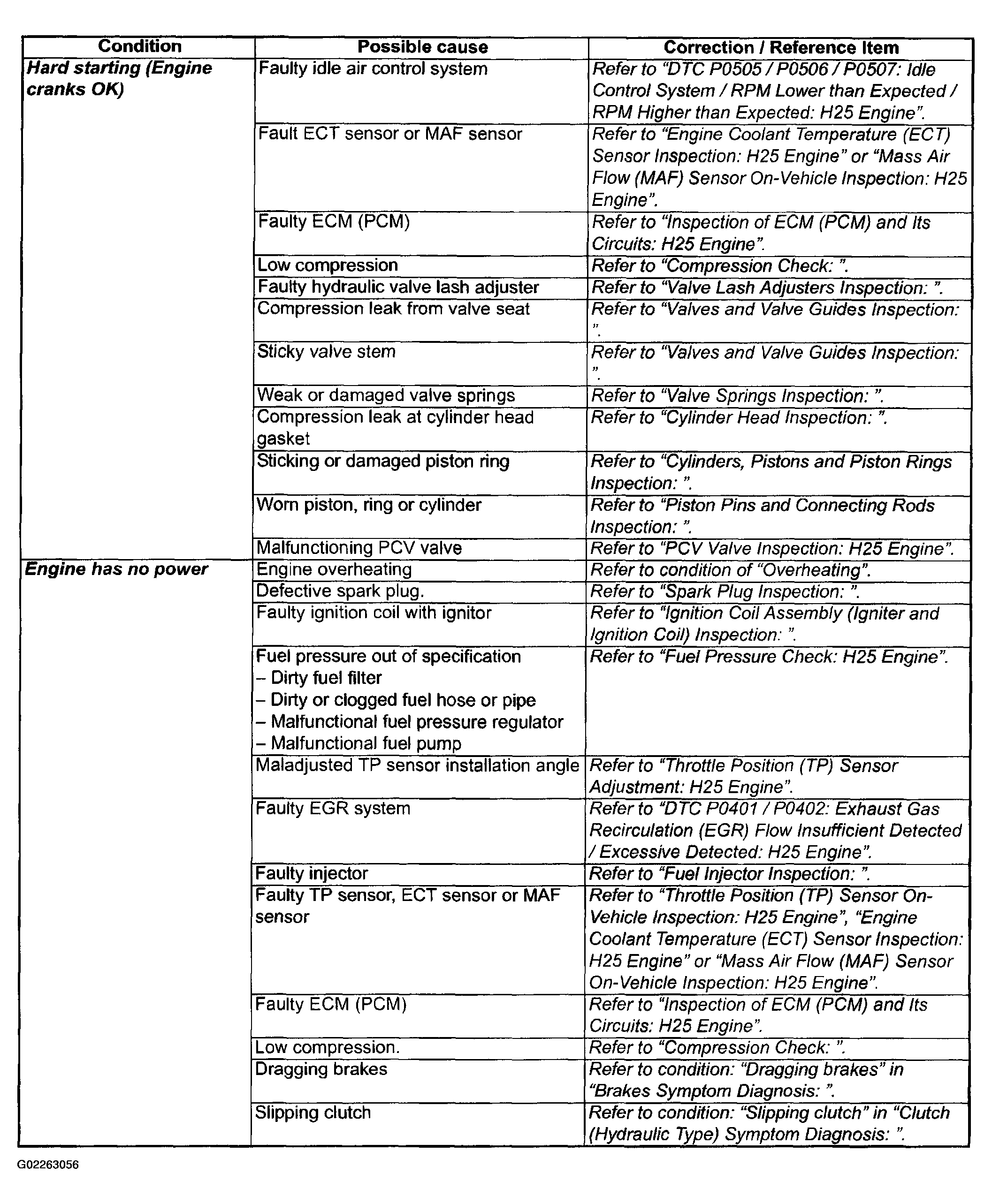

Fig 1: Engine Symptom Diagnosis Chart (1 Of 5)
G02263056Courtesy of SUZUKI OF AMERICA CORP.

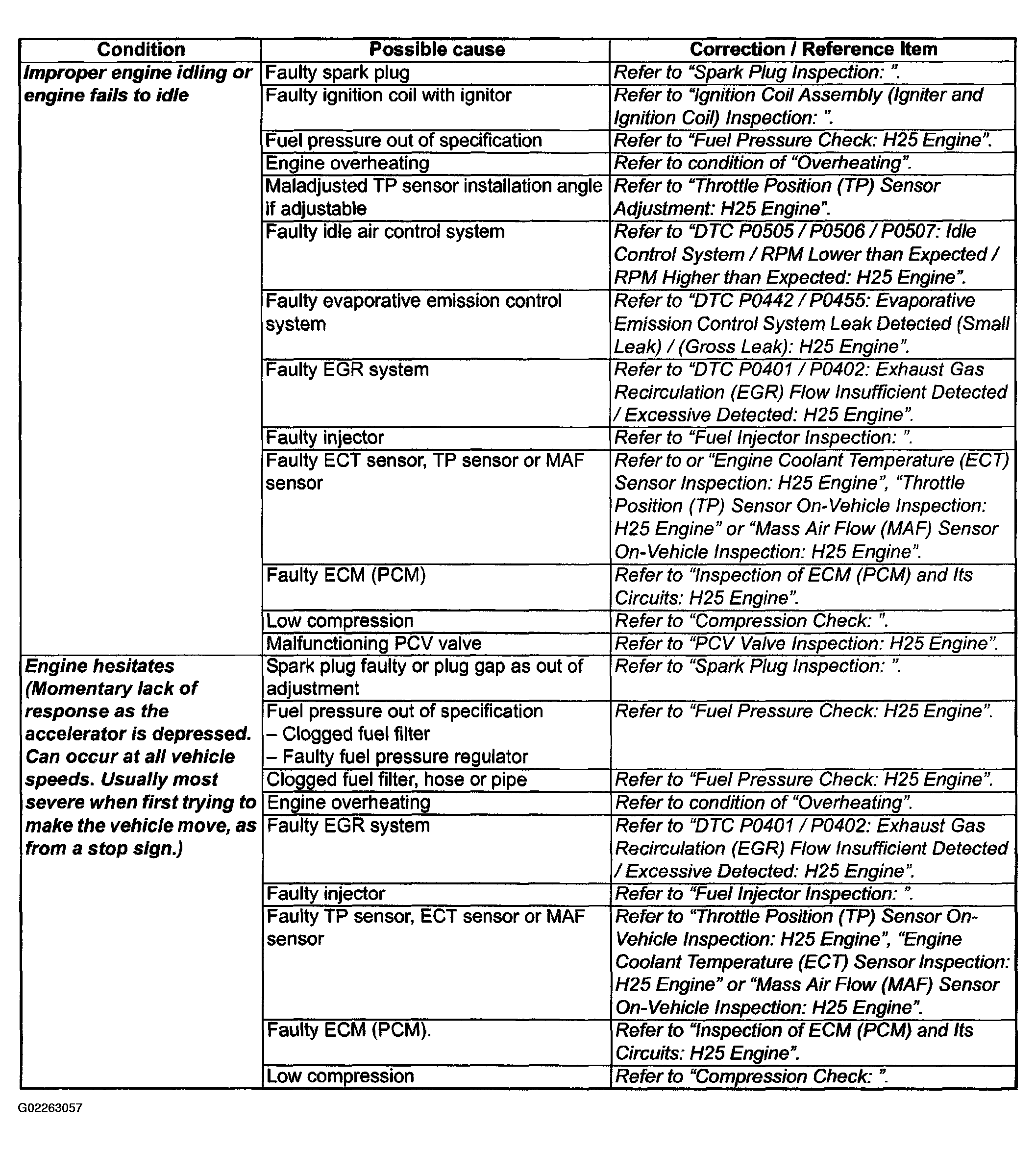

Fig 2: Engine Symptom Diagnosis Chart (2 Of 5)
G02263057Courtesy of SUZUKI OF AMERICA CORP.

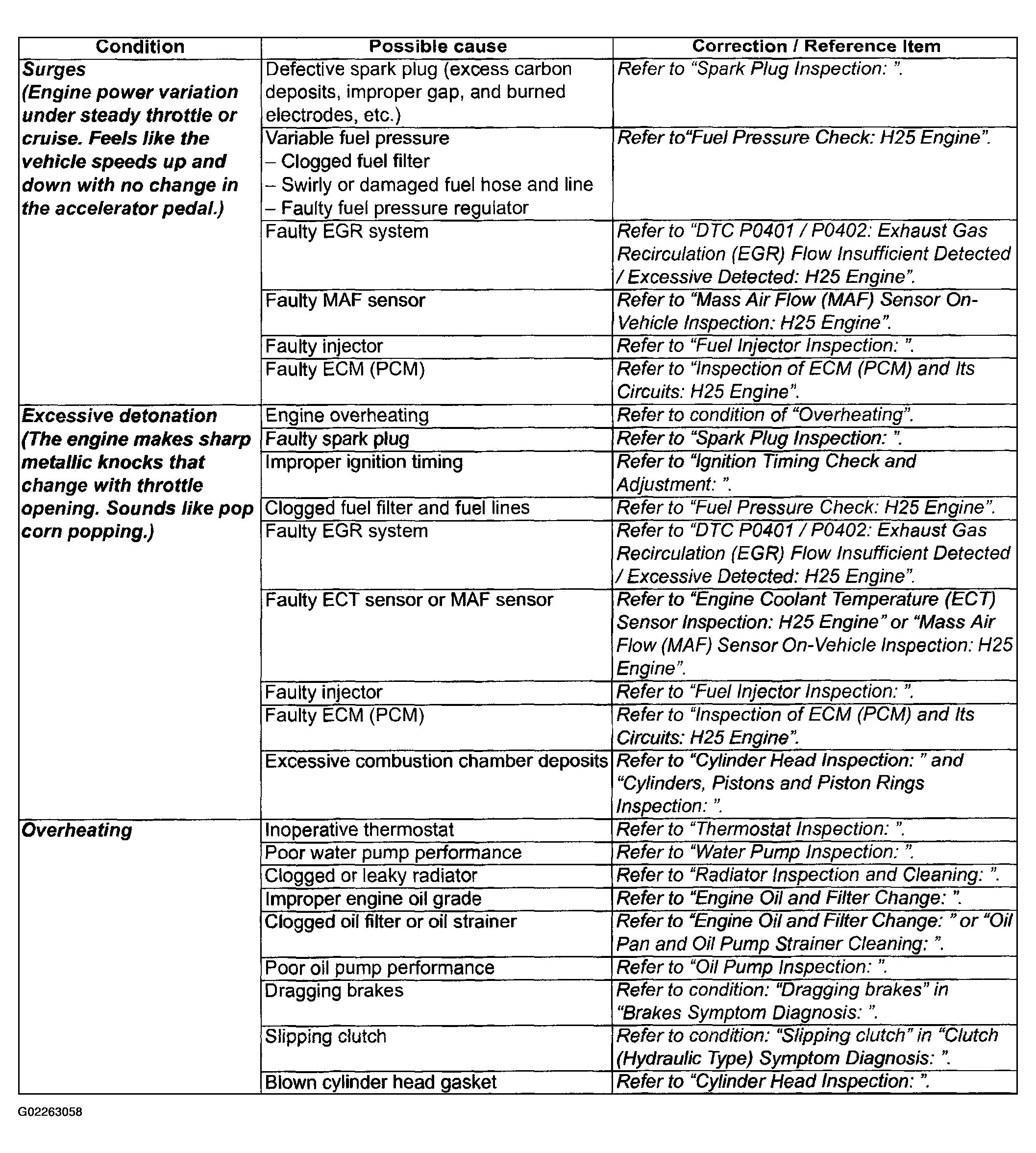

Fig 3: Engine Symptom Diagnosis Chart (3 Of 5)
G02263058Courtesy of SUZUKI OF AMERICA CORP.

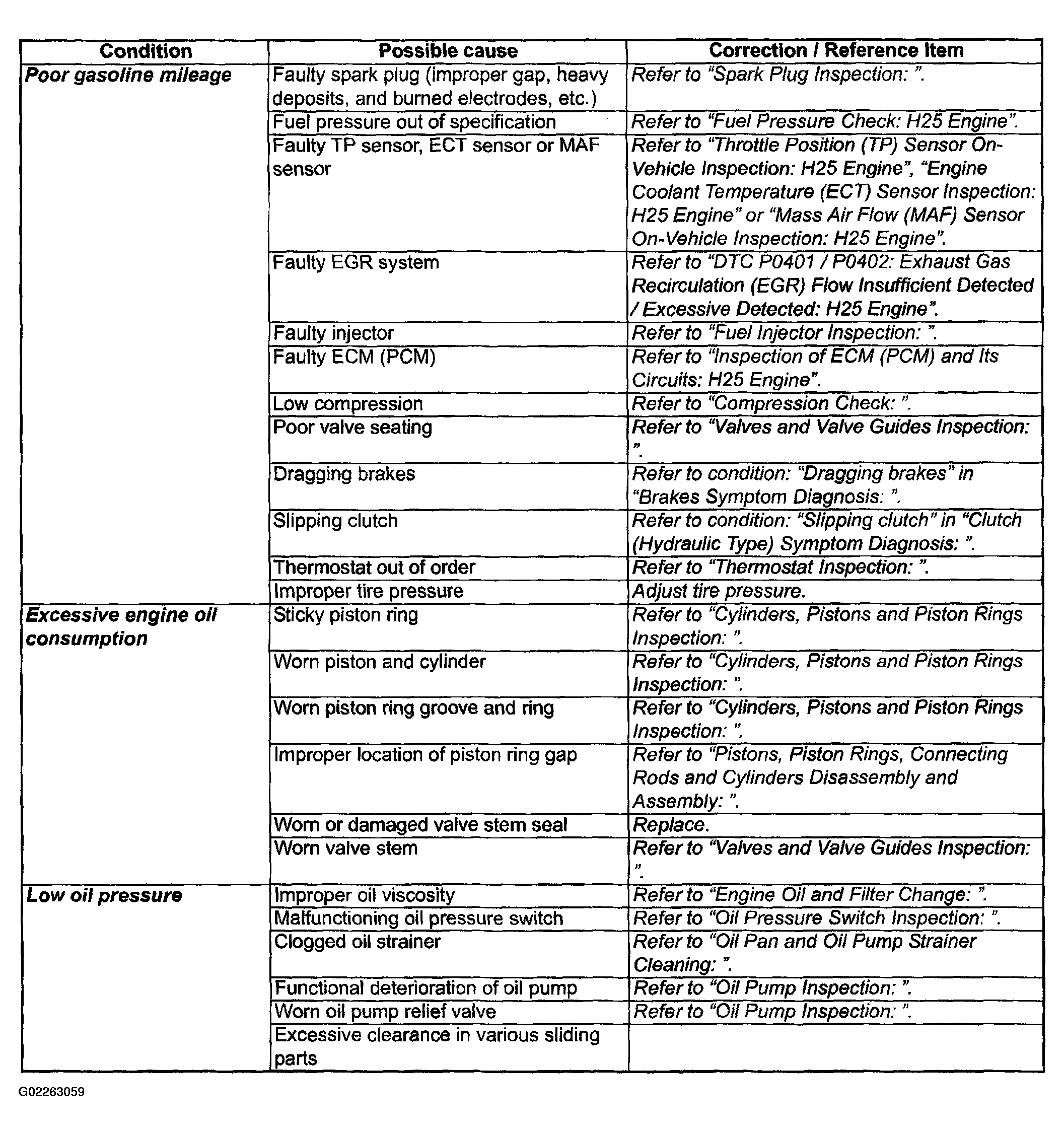

Fig 4: Engine Symptom Diagnosis Chart (4 Of 5)
G02263059Courtesy of SUZUKI OF AMERICA CORP.

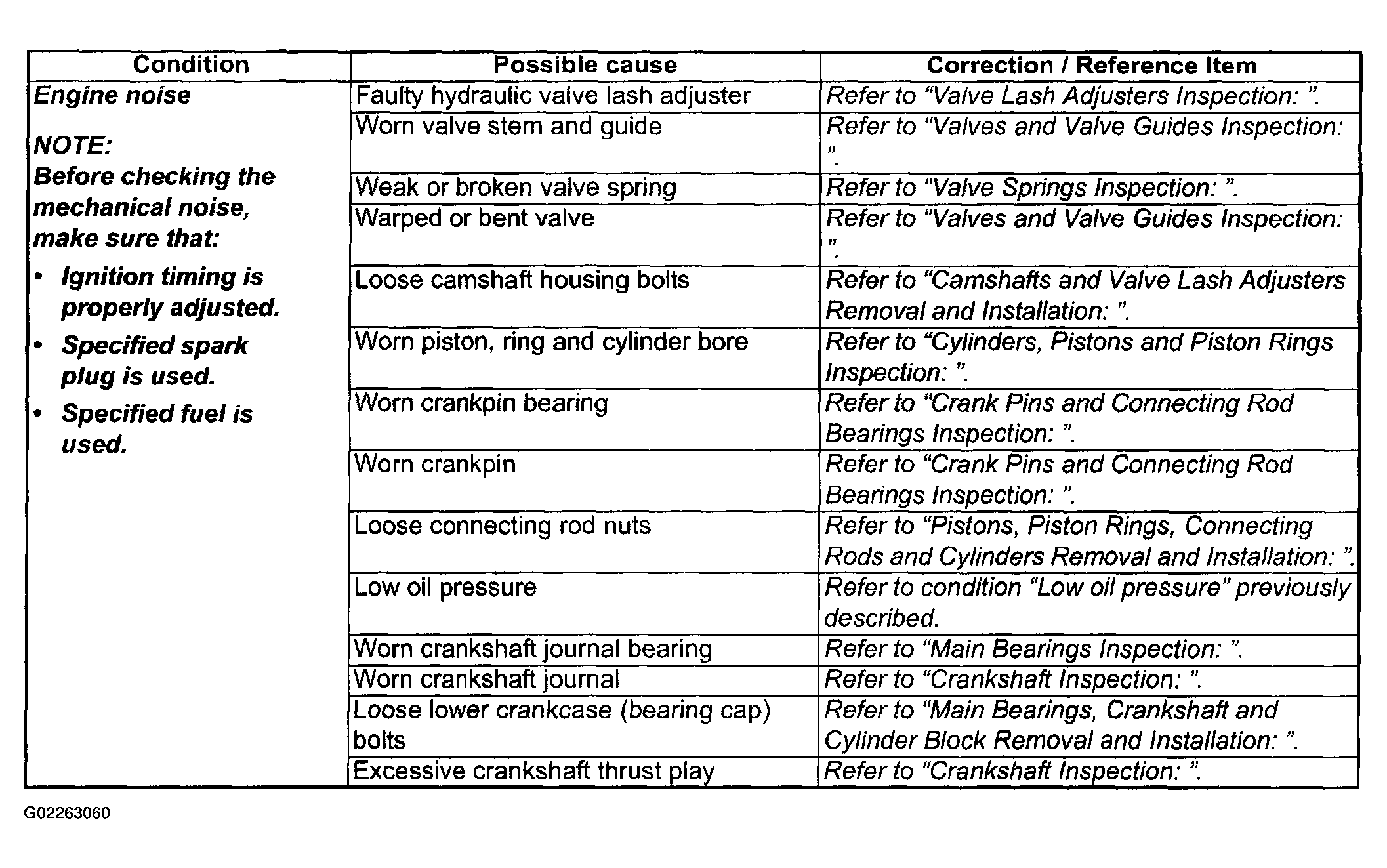

Fig 5: Engine Symptom Diagnosis Chart (5 Of 5)
G02263060Courtesy of SUZUKI OF AMERICA CORP.
