P2227/P2228/P2229 Detecting Condition & Trouble Area

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

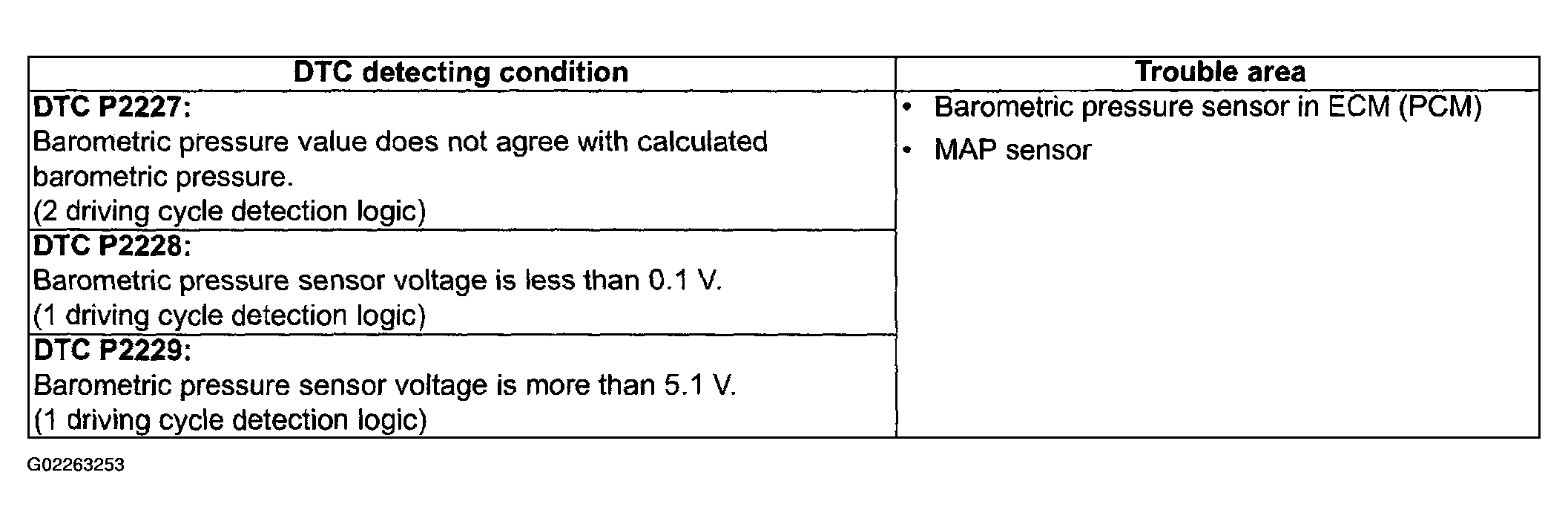

Fig 1: DTC P2227/P2228/P2229 Detecting Condition & Trouble Area
G02263253Courtesy of SUZUKI OF AMERICA CORP.
