WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

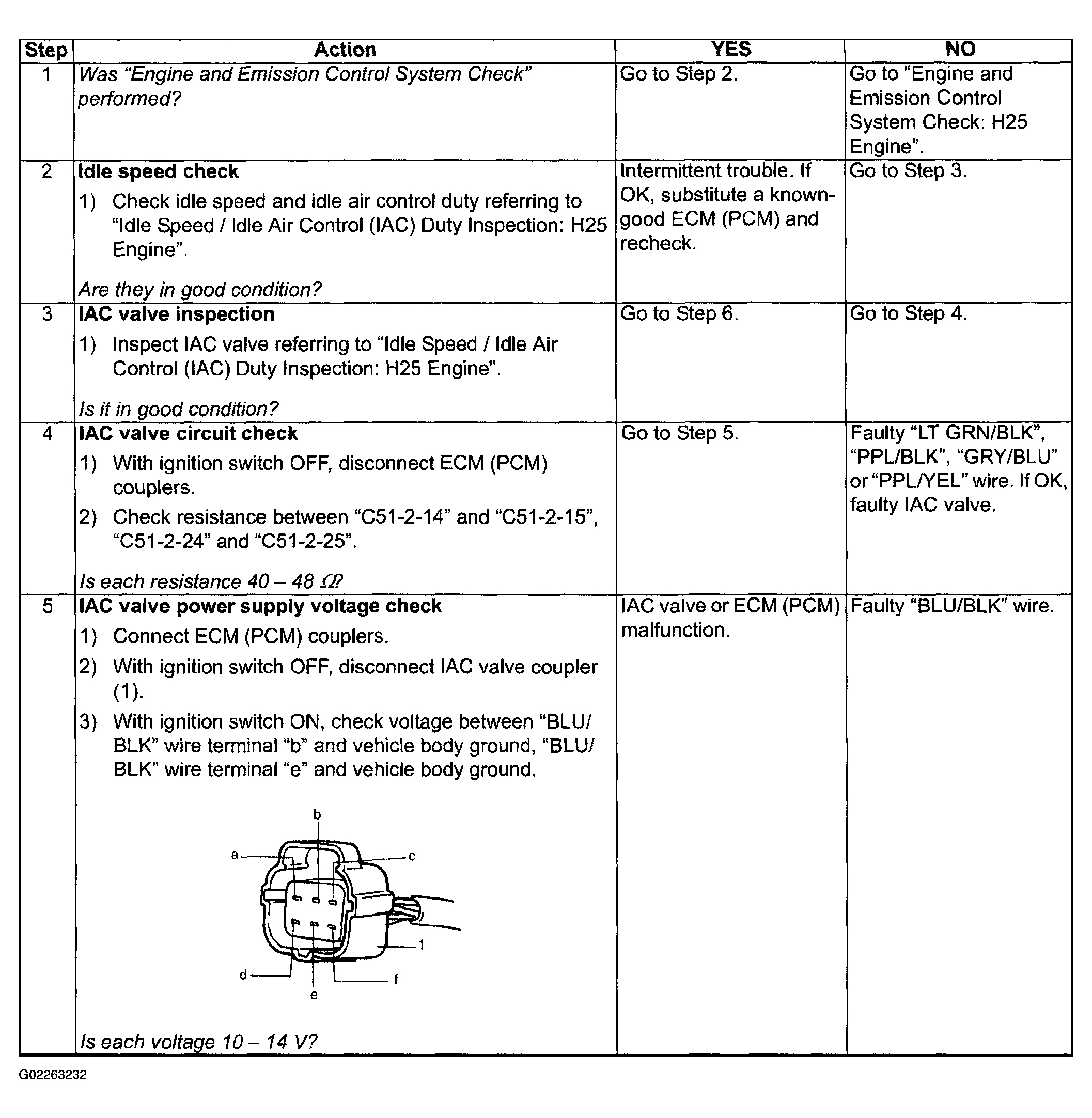

Fig 1: DTC P0505/P0506/P0507 Troubleshooting (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

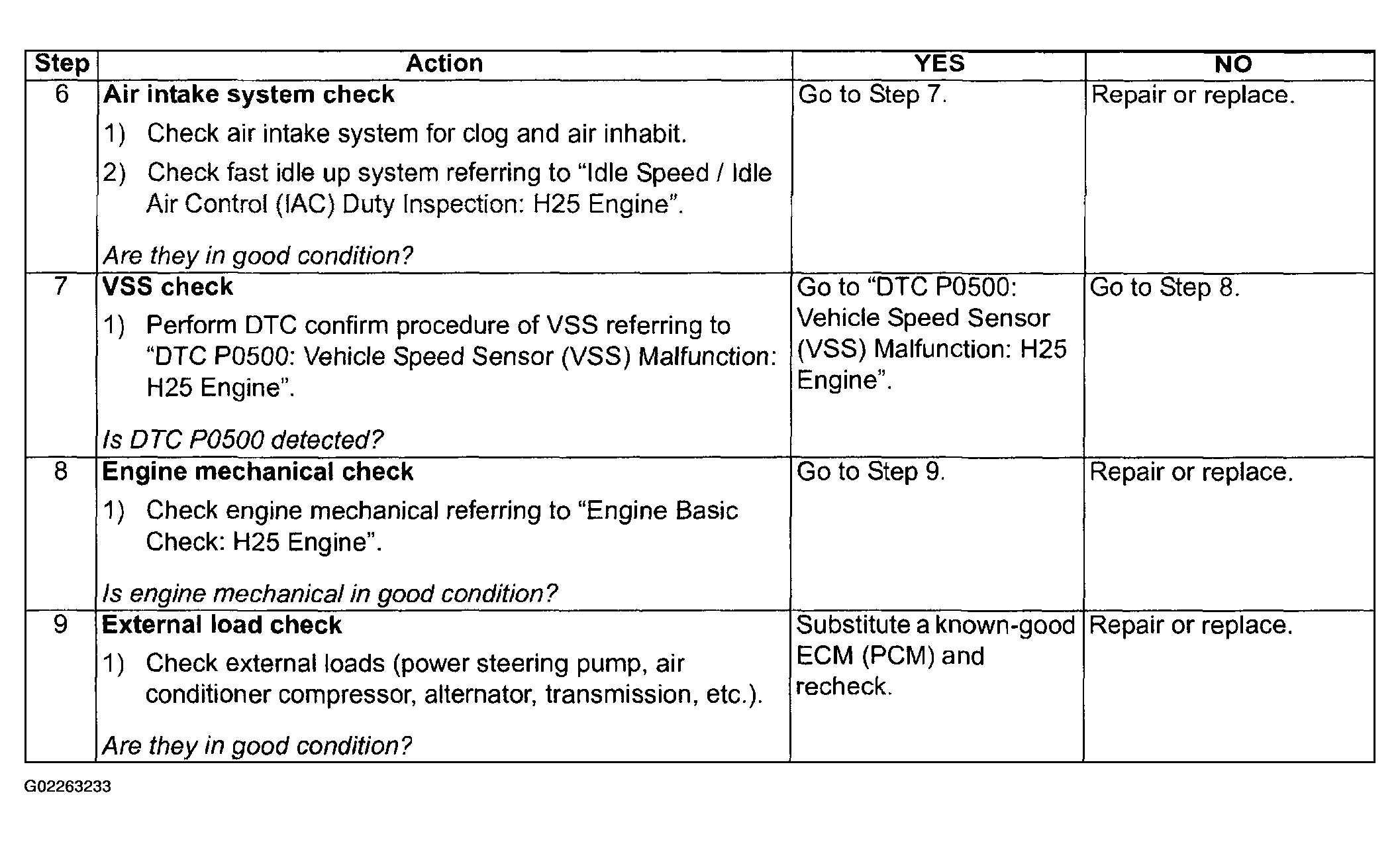

Fig 2: DTC P0505/P0506/P0507 Troubleshooting (2 Of 2)
