Section 123 (Engine General Information & Diagnosis)
>>
H25 Engine
>>
Diagnostic Information & Procedures
>>
DTC P0444, P0496: Evaporative Emission Control System Purge Control Valve Circuit Open/EVAP System Flow during Non-Purge
>>
P0444/P0496 Detecting Condition & Trouble Area
P0444/P0496 Detecting Condition & Trouble Area
WARNING:
This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

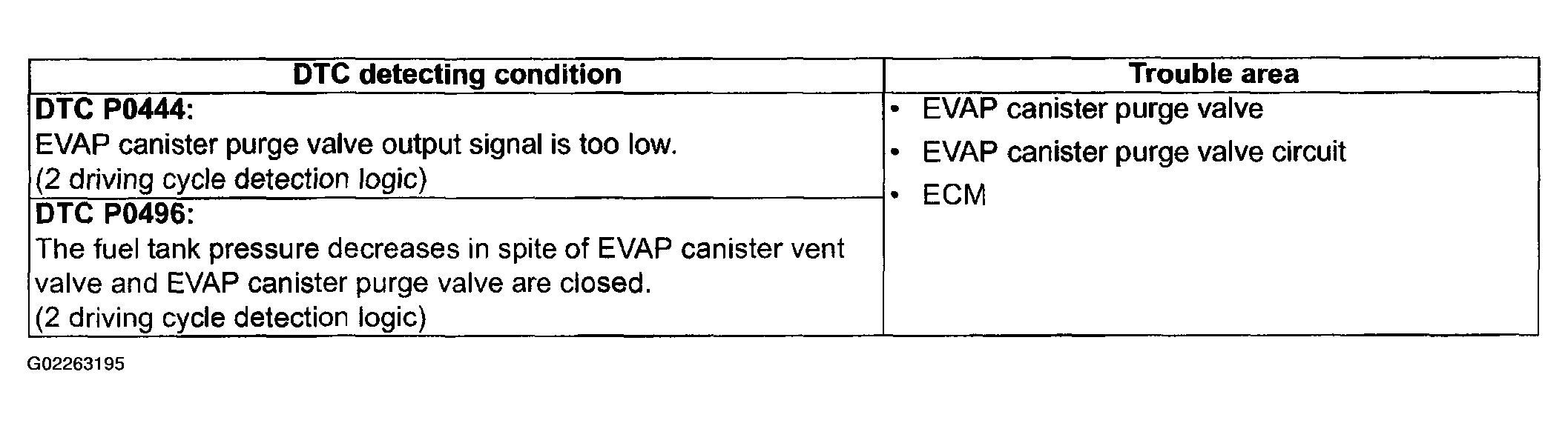

Fig 1: DTC P0444/P0496 Detecting Condition & Trouble Area
Courtesy of SUZUKI OF AMERICA CORP.
