P0300/P0301/P0302/P0303/P0304/P0305/P0306 Detecting Condition & Trouble Area

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

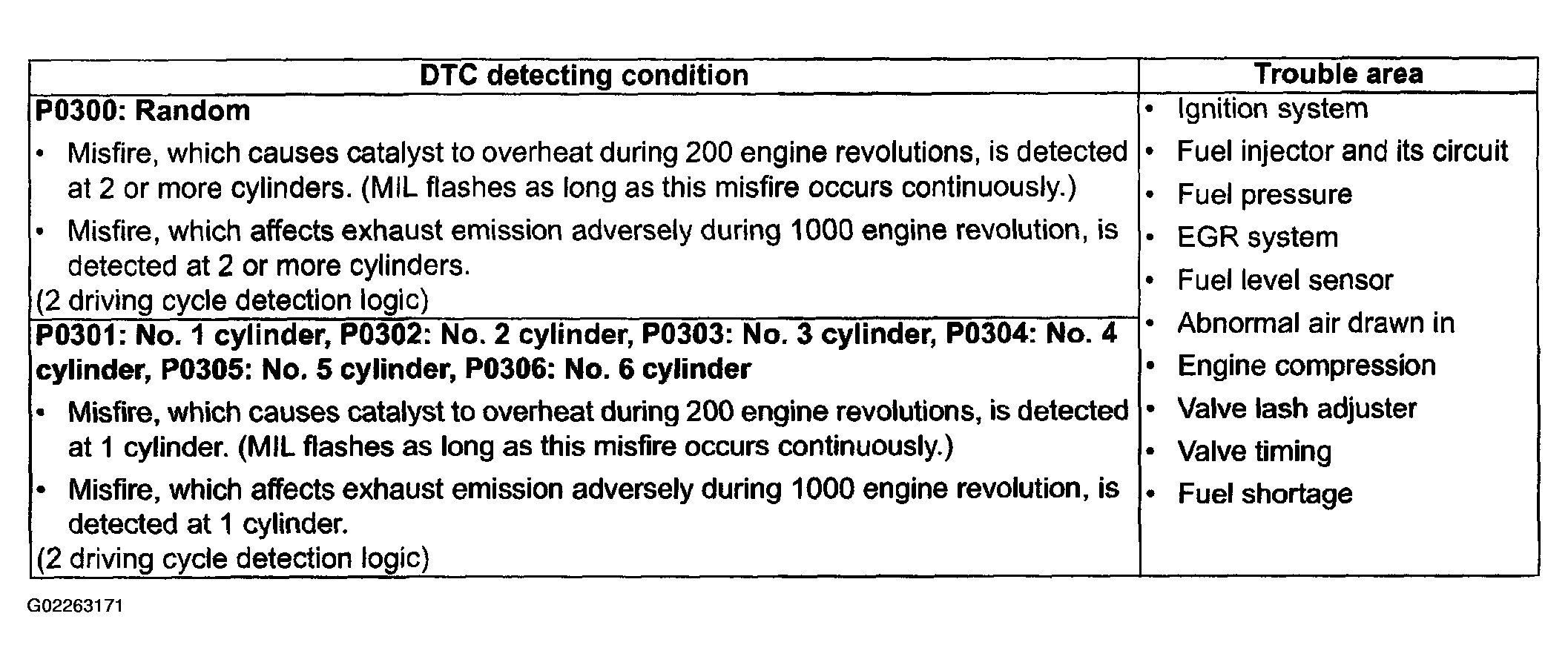

Fig 1: DTC P0300/P0301/P0302/P0303/P0304/P0305/P0306 Detecting Condition & Trouble Area
G02263171Courtesy of SUZUKI OF AMERICA CORP.
