Idle Air Control (IAC) Valve Removal & Installation: Installation
WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Install new O-ring to throttle body.
- Install IAC valve to throttle body.
- Tighten IAC valve screws to specified torque.
Tightening torque

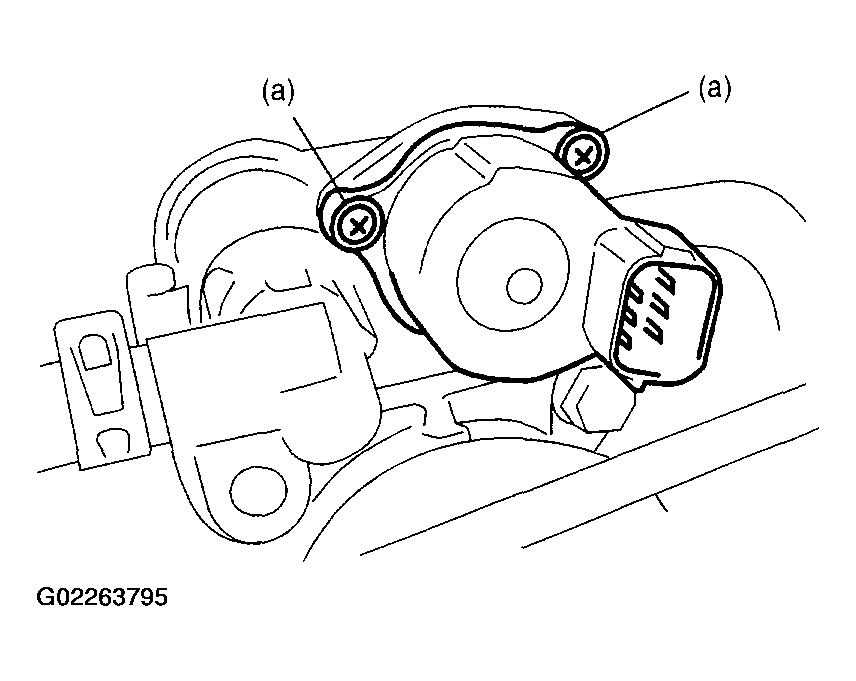

IAC valve screw (a): 3.5 N.m (0.35 kg-m, 2.5 lb-ft)
- Install surge tank cover.
- Connect IAC valve connector securely.
- Connect negative cable (-) to battery.
