Camshaft Position (CMP) Sensor Removal & Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect CMP sensor coupler (2).
  2. Remove A/T fluid level gauge (4) and filler tube (5).
  3. Remove CMP sensor (1) by removing bolt (3).

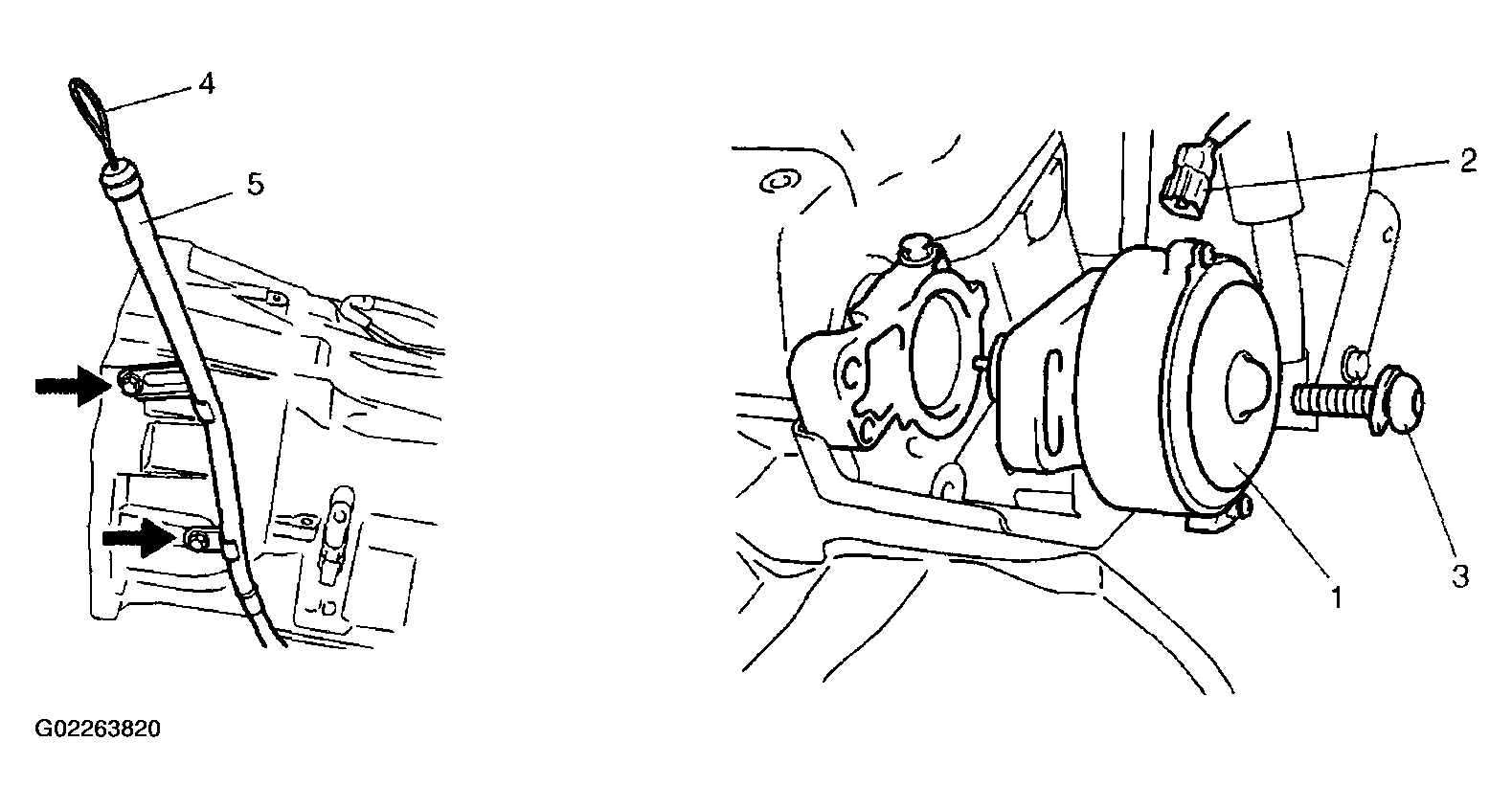

    Fig 1: Removing Camshaft Position (CMP) Sensor
    G02263820Courtesy of SUZUKI OF AMERICA CORP.
