Oil Pan & Oil Pump Strainer Removal & Installation: Installation

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

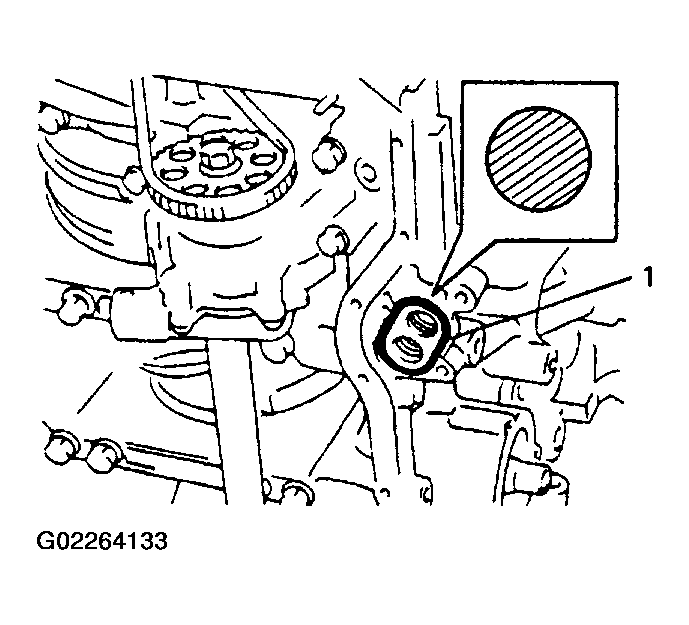

Install new O-ring (1) to lower crankcase as shown in the figure.
Install two new O-rings to oil pump strainer.

Fig 1: Installing New O-Ring To Lower Crankcase
Courtesy of SUZUKI OF AMERICA CORP.

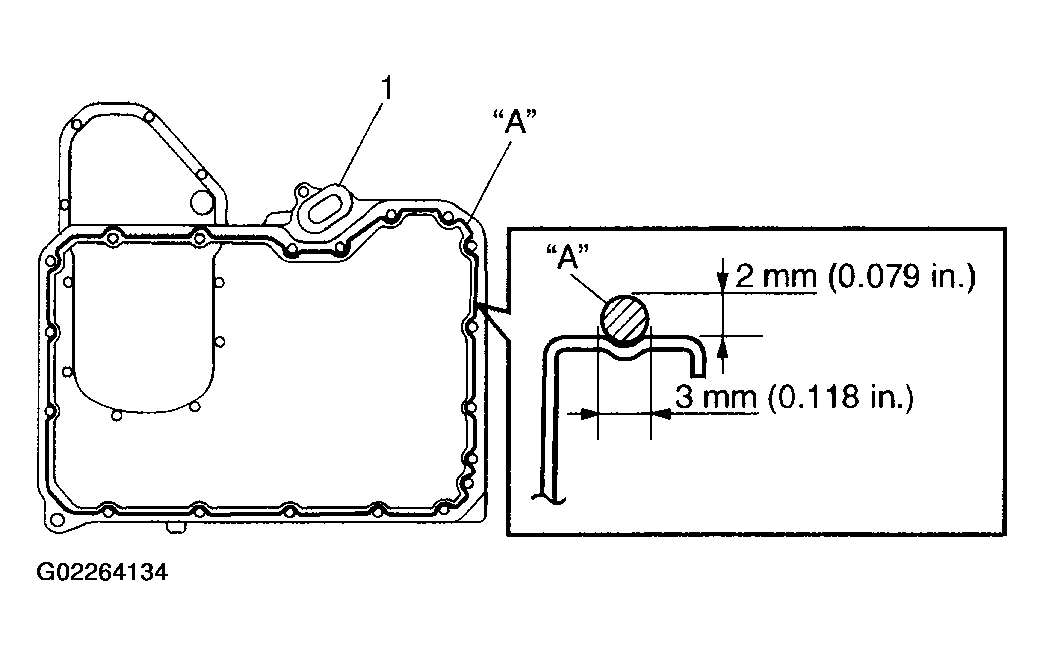

Apply sealant "A" to upper oil pan (1) sealing surface area as shown in the figure.
"A": Water tight sealant 99000-31250

Fig 2: Applying Sealant To Upper Oil Pan Sealing Surface Area
Courtesy of SUZUKI OF AMERICA CORP.
Place upper oil pan (1) on cross member and suspension member (just beneath lower crankcase). At this point install oil pump strainer.
Tightening torque

Oil pump strainer bolt (a): 11 N.m (1.1 kg-m, 8.0 lb-ft)

Fig 3: Installing Oil Pump Strainer
Courtesy of SUZUKI OF AMERICA CORP.
Install upper oil pan (1) to lower crankcase as follows.
1. Fit upper oil pan (1) to cylinder block.
2. Tighten upper oil pan bolts and nuts temporarily by hand.
3. Tighten upper oil pan bolts and nuts to specified torque by numerical order as shown in figure.
  Tightening torque

  Upper oil pan bolt (a): Tighten 11 N. m (1.1 kg-m, 8.0 lb-ft) by the specified procedure

  Upper oil pan bolt (b): Tighten 27 N. m (2.7 kg-m, 19.5 lb-ft) by the specified procedure

  Upper oil pan nut (c): Tighten 11 N. m (1.1 kg-m, 8.0 lb-ft) by the specified procedure

  Fig 4: Tightening Sequence For Upper Oil Pan Bolts & Nuts
  Courtesy of SUZUKI OF AMERICA CORP.

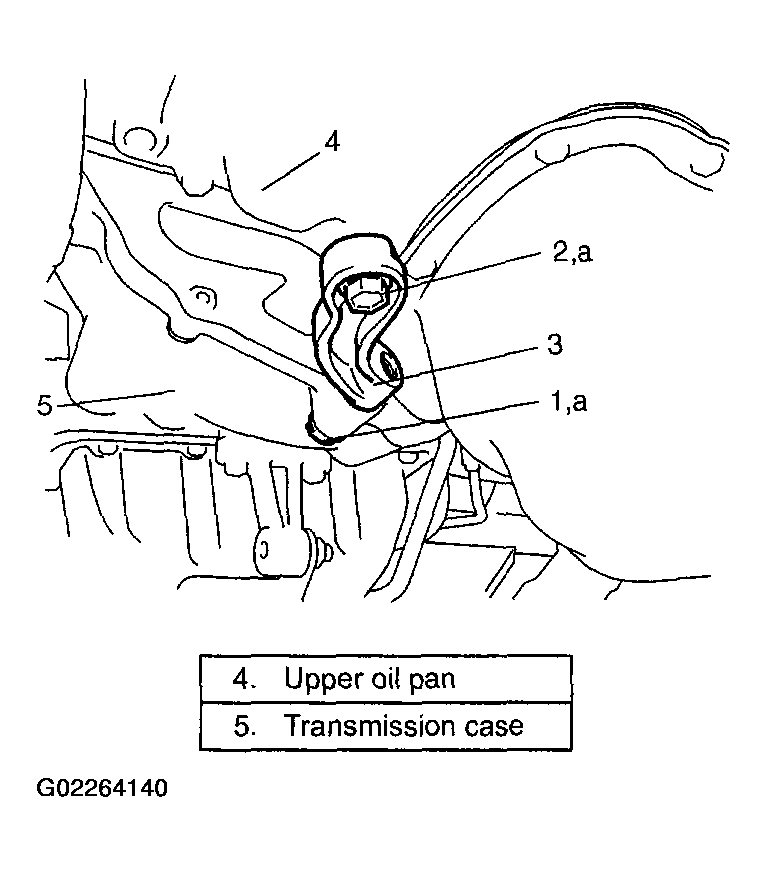

Install bracket (3) to oil pump strainer (2) and upper oil pan (1).
Tightening torque

Oil pump strainer bracket bolt (d): 11 N.m (1.1 kg-m, 8.0 lb-ft)

Fig 5: Installing Bracket To Oil Pump Strainer & Upper Oil Pan
Courtesy of SUZUKI OF AMERICA CORP.

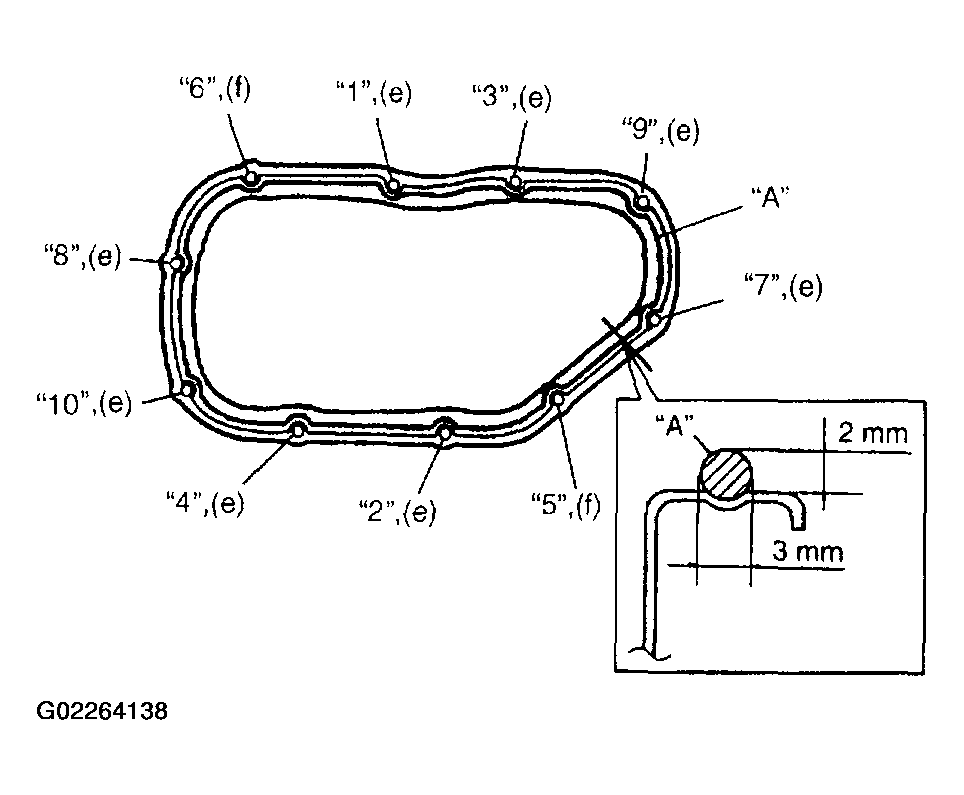

Apply sealant "A" to lower oil pan sealing surface area as shown in the figure.
"A": Water tight sealant 99000-31250
Install lower oil pan to upper oil pan as follows.
1. Fit lower oil pan (1) to upper oil pan.
2. Tighten lower oil pan bolts and nuts temporarily by hand.
3. Tighten lower oil pan bolts and nuts to specified torque by numerical order as shown in figure.
  Tightening torque

  Lower oil pan bolt (e): Tighten 11 N. m (1.1 kg-m, 8.0 lb-ft) by the specified procedure

  Lower oil pan nut (f): Tighten 11 N. m (1.1 kg-m, 8.0 lb-ft) by the specified procedure
Fig 6: Applying Sealant To Lower Oil Pan Sealing Surface Area & Torque Sequence
Courtesy of SUZUKI OF AMERICA CORP.
Install new gasket (1) and drain plug (2) to oil pan.
Tightening torque

Engine oil drain plug (f): 50 N.m (5.0 kg-m, 36.5 lb-ft)

Fig 7: Installing New Gasket & Drain Plug
Courtesy of SUZUKI OF AMERICA CORP.
Install stiffener as follows (for H27 engine).
1. Temporarily tighten stiffener bolt (1), then other bolt (2).
2. Tighten stiffener bolt (1), then other bolt (2) to specified torque.
  Tightening torque

  Stiffener bolt (a): Tighten 55 N. m (5.5 kg-m, 40.0 lb-ft) by the specified procedure
Fig 8: Installing Stiffener (XL-7)
Courtesy of SUZUKI OF AMERICA CORP.
Install front differential housing according to installation procedure described in DIFFERENTIAL FRONT - H25 ENGINE MODEL or DIFFERENTIAL - FRONT - H27 ENGINE MODEL .
Install rack and pinion assembly. Refer to P/S GEAR BOX ASSEMBLY REMOVAL & INSTALLATION .
Refill front differential housing with gear oil if drained, referring to DIFFERENTIAL FRONT - H25 ENGINE MODEL or DIFFERENTIAL - FRONT - H27 ENGINE MODEL .
Install oil level gauge guide with new O-ring.
Refill engine with engine oil .
Check wheel alignment, referring to SPECIFICATIONS & PROCEDURES (Grand Vitara) or SPECIFICATIONS & PROCEDURES (XL-7).
