Noise Suppressor Removal & Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unwrap tape from noise suppressor (1).
  2. Disconnect coupler of noise suppressor (1).
  3. Remove noise suppressor (1) from harness (2).

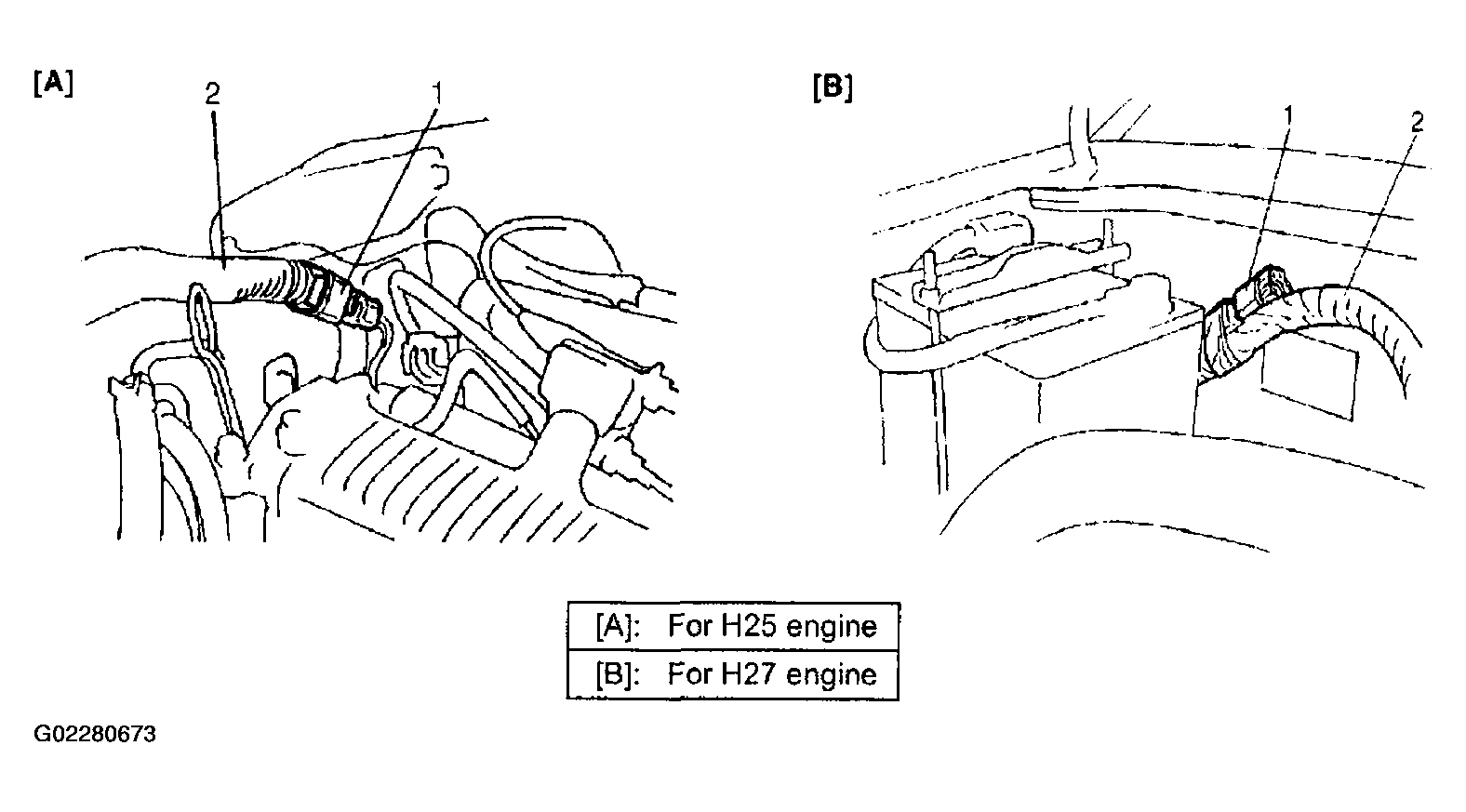

    Fig 1: Removing Noise Suppressor
    G02280673Courtesy of SUZUKI OF AMERICA CORP.
