Tire Rotation

WARNING: This page is about a different car, the 2004 Suzuki XL-7, 2004 Suzuki Grand Vitara, 2003 Suzuki XL-7, and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

To equalize wear, rotate tires periodically as shown in the figure.

Refer to WHEEL REMOVAL & INSTALLATION  .

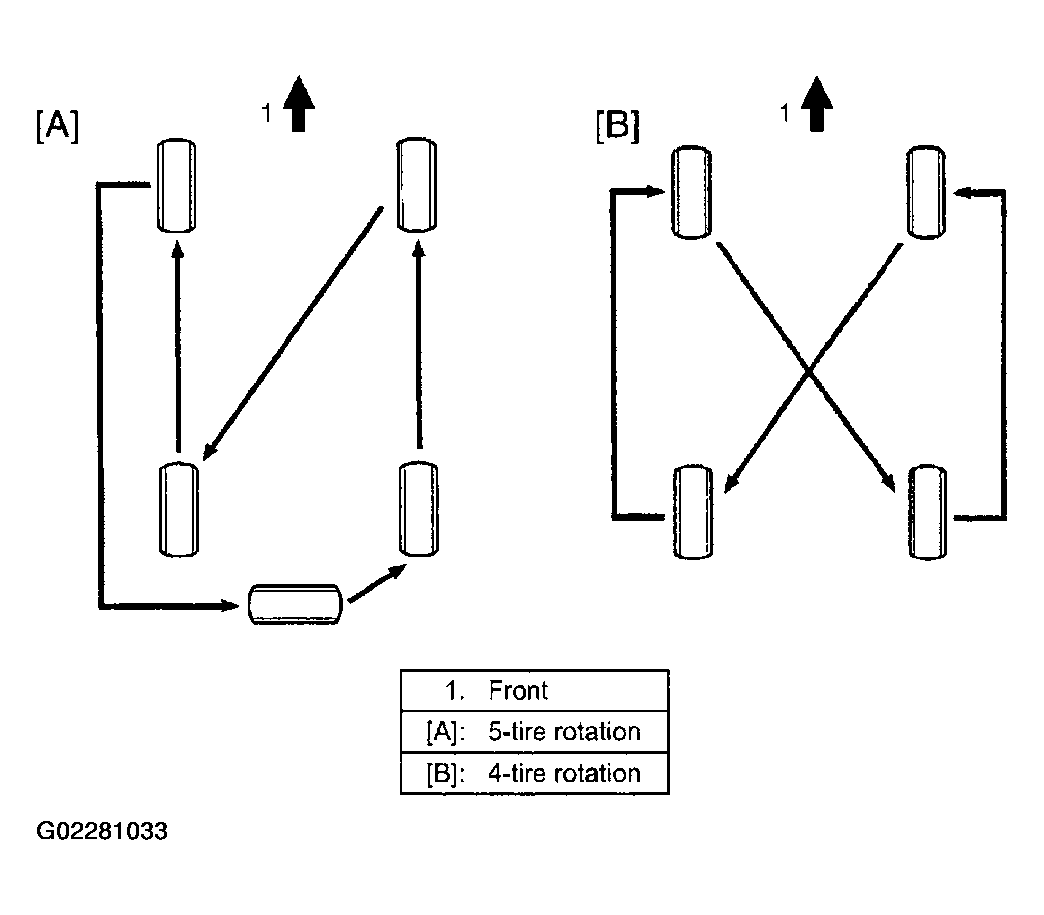

Fig 1: Identifying Tire Rotation Pattern
G02281033Courtesy of SUZUKI OF AMERICA CORP.
