Suspension, Wheels & Tires Symptom Diagnosis

WARNING: This page is about a different car, the 2004 Suzuki XL-7, 2004 Suzuki Grand Vitara, 2003 Suzuki XL-7, and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Since the problems in suspension, wheels and tires involve several systems, they must all be considered when diagnosing a complaint. To avoid using the wrong symptom, always road test the vehicle first. Proceed with the following preliminary inspections and correct any defects which are found.

Inspect tires for proper pressure and uneven wear.
Raise vehicle on a hoist and inspect front and rear suspension for loose or damaged parts.
Spin front wheel. Inspect for out-of-round tires, out-of-balance tires, bent rims, loose and / or rough wheel bearings.

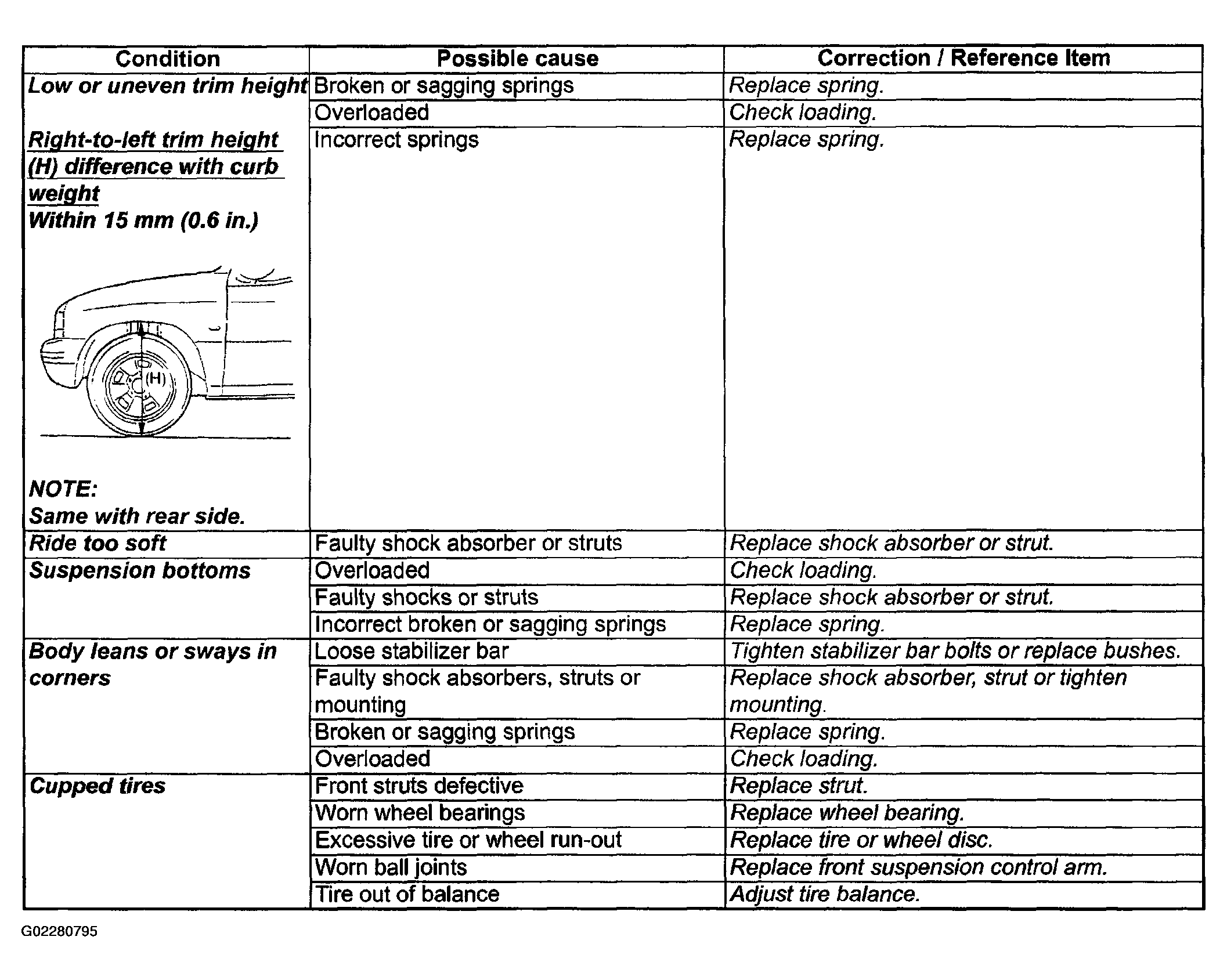

Fig 1: Suspension, Wheels & Tires Symptom Diagnosis Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

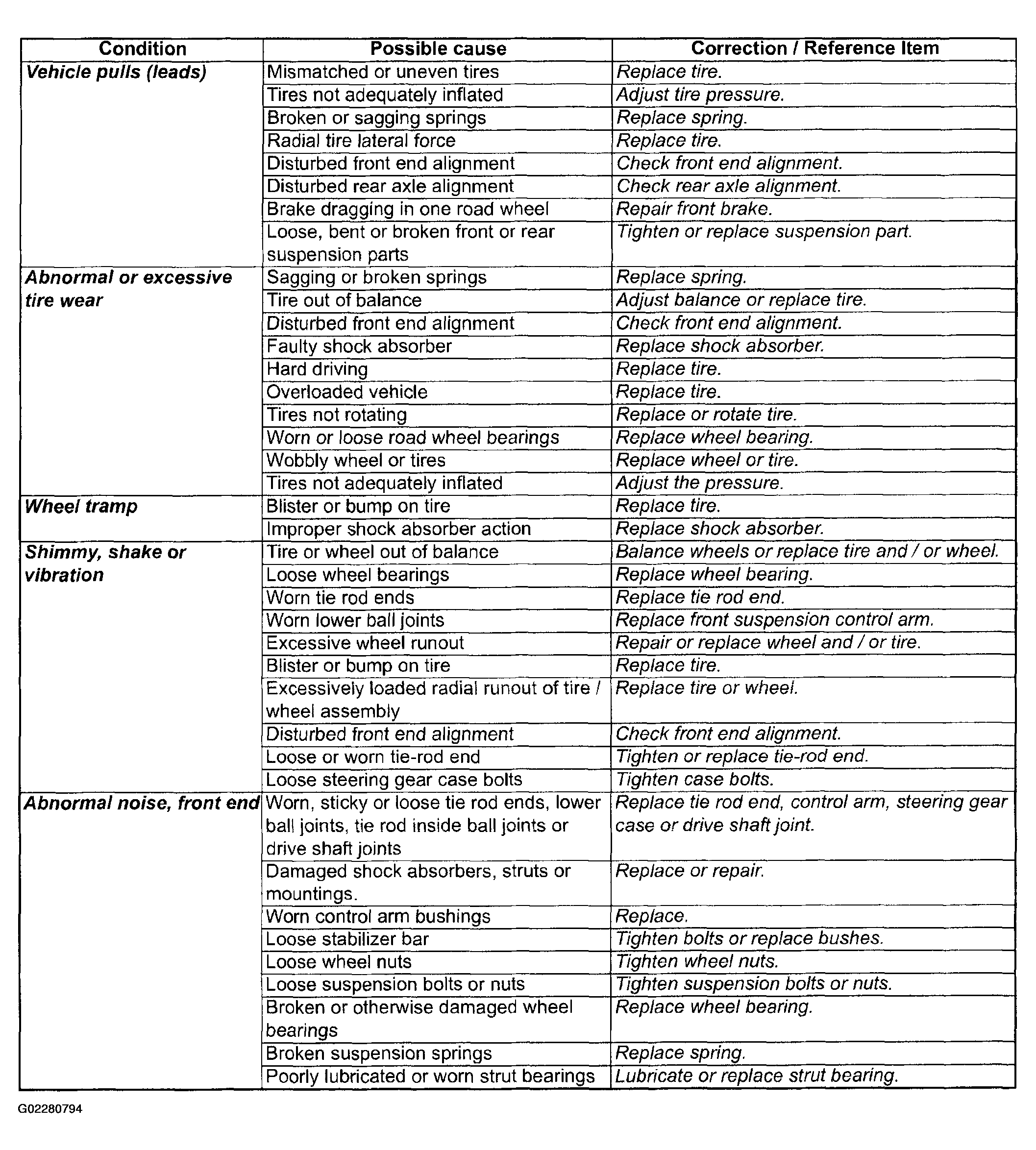

Fig 2: Suspension, Wheels & Tires Symptom Diagnosis Chart (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
