Section 114 (Differentials)
>>
Differential - Rear
>>
Special Tools & Equipment
>>
Special Tool
Special Tool
WARNING:
This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

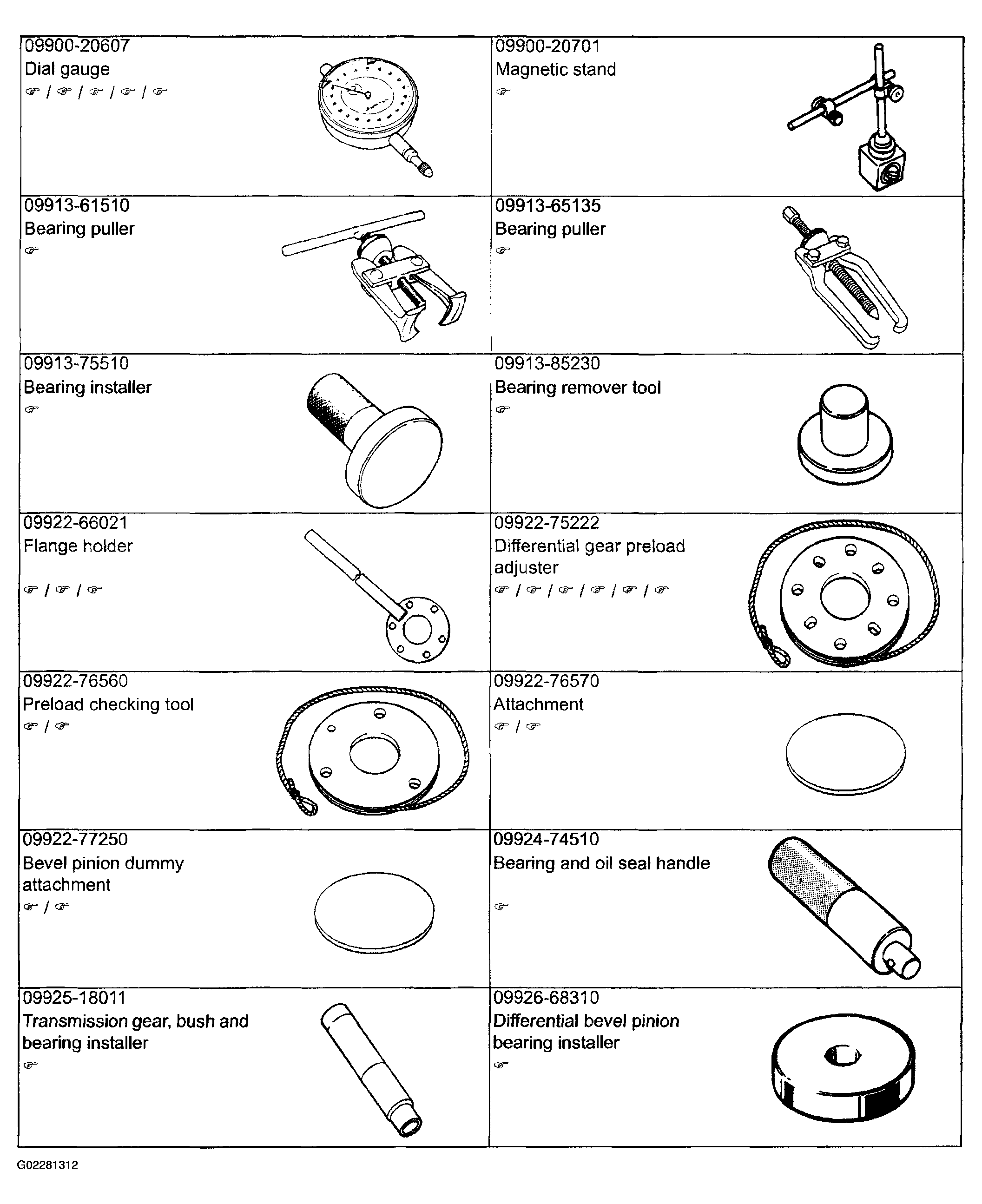

Fig 1: Identifying Special Tools (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

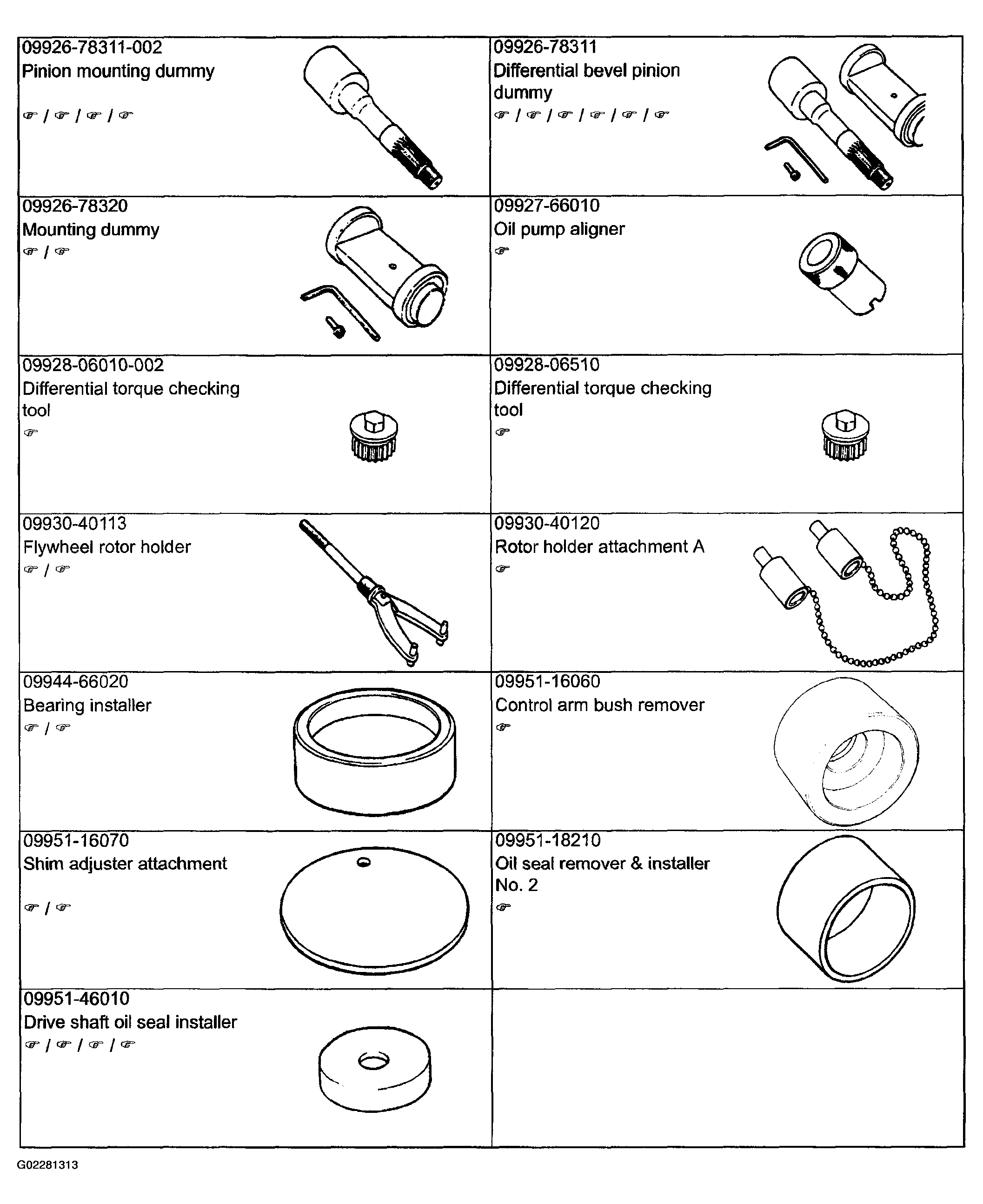

Fig 2: Identifying Special Tools (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
