For H25 engine model

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Special tool

  1. (A):  09900-20607
  2. (B):  09926-78311
  3. (C):  09922-75222
  4. (D):  09951-16070
  5. (E):  09922-77250
  6. (F):  09951-46010

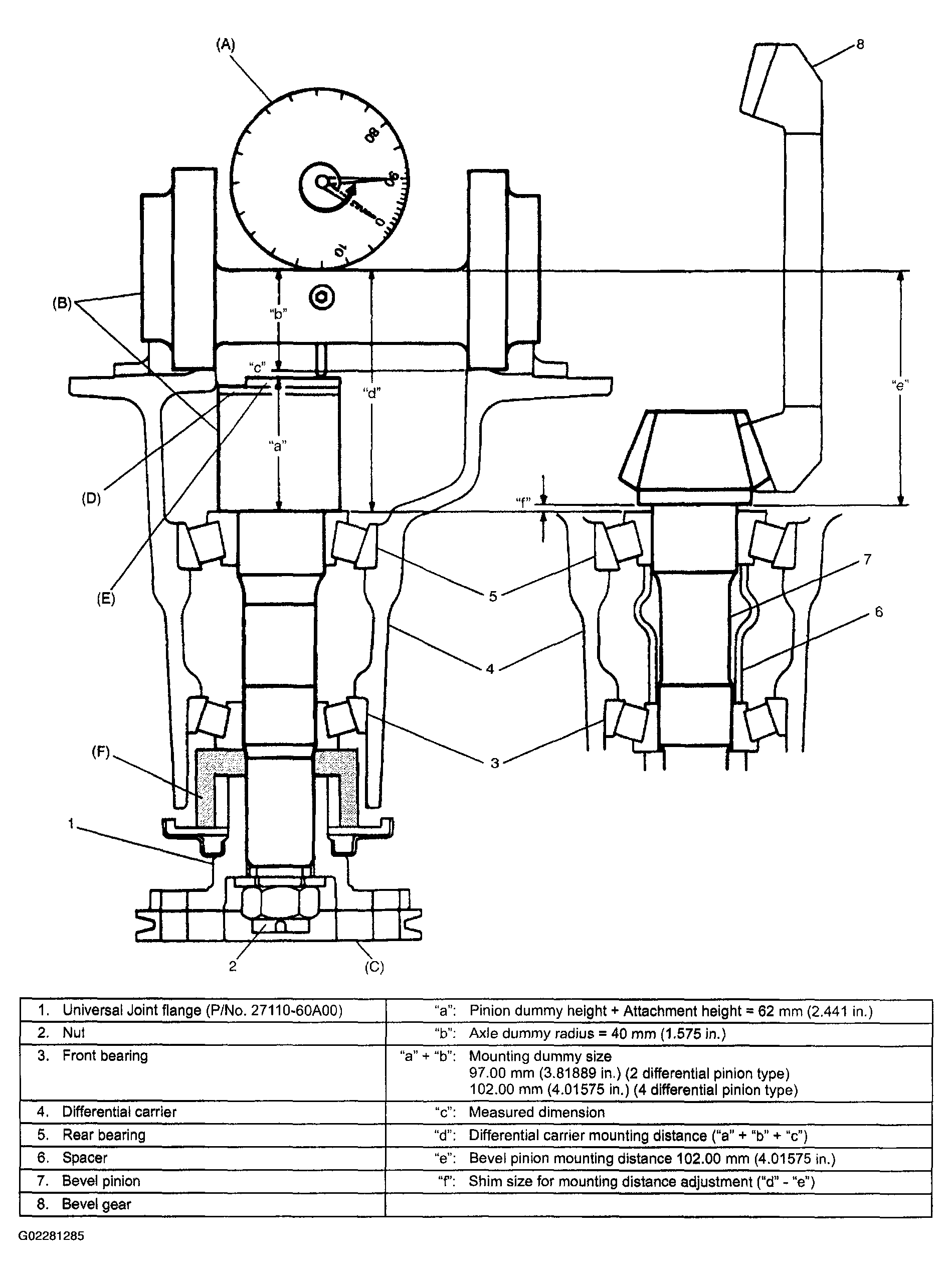

Fig 1: Setting Drive Bevel Pinion Depth (Grand Vitara)
G02281285Courtesy of SUZUKI OF AMERICA CORP.
