Differential Side Bearing

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press-fit side bearing (1) with special tool and hydraulic press.

    Special tool

    1. (A):  09944-66020

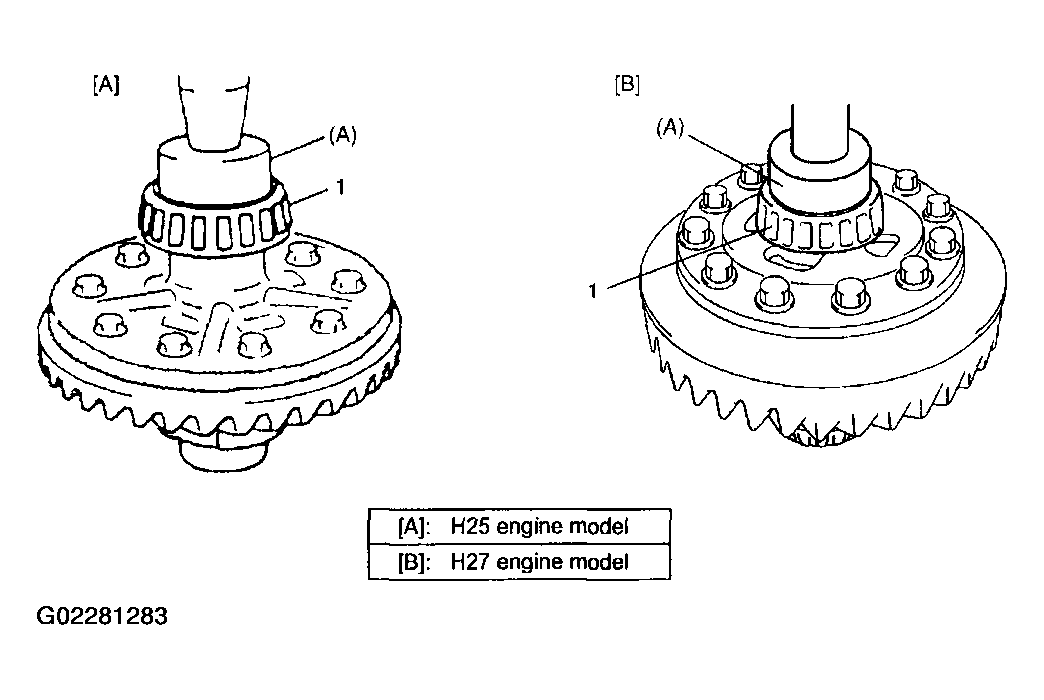

    Fig 1: Press-Fitting Side Bearing
    G02281283Courtesy of SUZUKI OF AMERICA CORP.
  2. Hold bearing press-fitted in Step  1 with holder and press-fit side bearing on the other side.
    NOTE: Be sure to use bearing holder for the purpose of protecting lower bearing.

    Special tool

    1. (A):  09944-66020
    2. (B):  09951-16060
    Fig 2: Press-Fitting Other Side Bearing
    G02281284Courtesy of SUZUKI OF AMERICA CORP.
