Rear Differential Dismounting & Remounting: Dismounting

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up vehicle and drain oil from rear differential housing.
  2. Remove rear brake drums and pull out right and left rear axle shafts. See REAR AXLE BEARINGS & OIL SEAL (GRAND VITARA, VITARA & XL-7) .
  3. Before removing propeller shaft, give match marks (1) on joint flange and propeller shaft as shown.

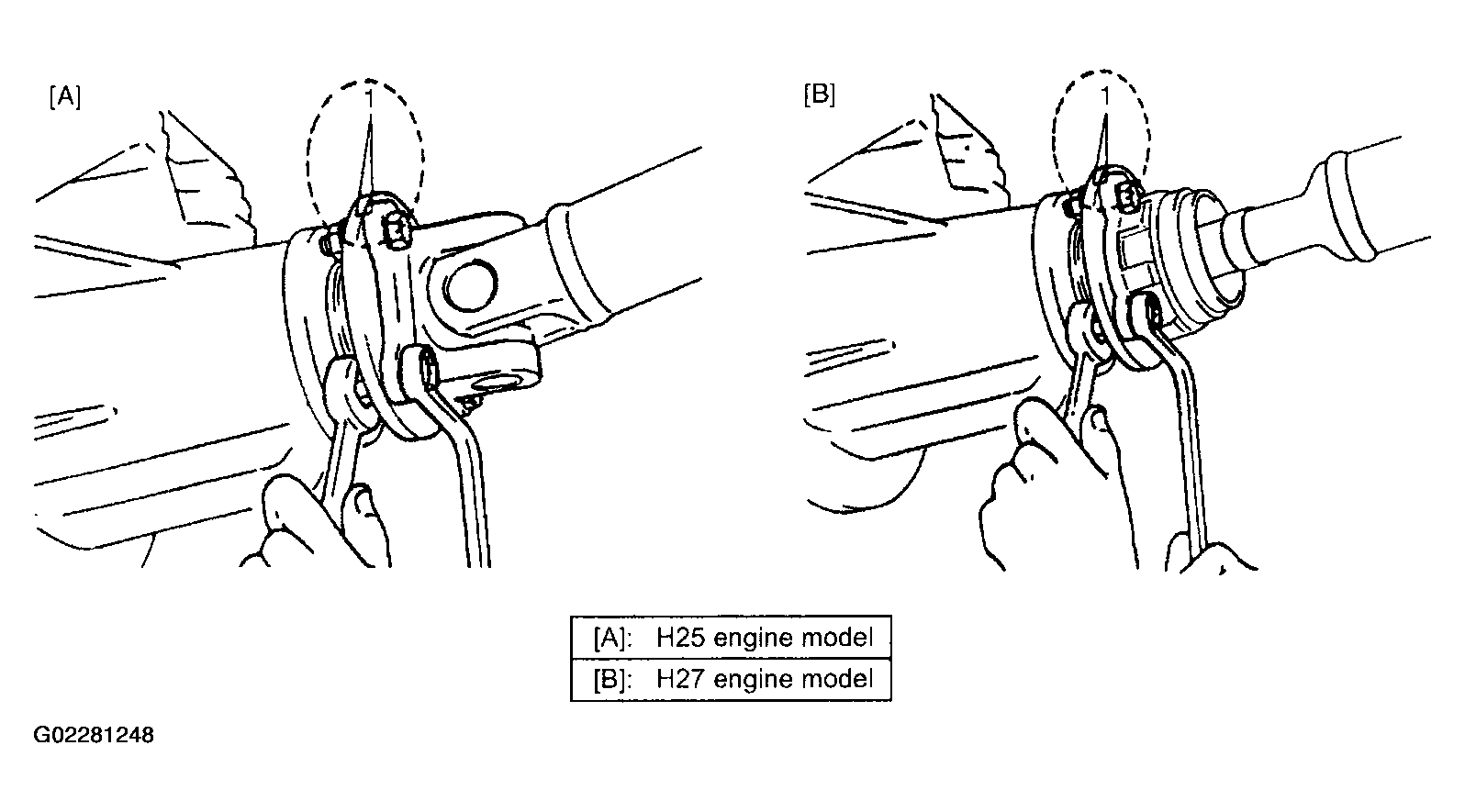

    Fig 1: Marking Joint Flange & Propeller Shaft
    G02281248Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove propeller shaft by removing its flange bolts and nuts.
  5. Remove differential assembly by removing its 8 fastening bolts (1).
    Fig 2: Removing Differential Assembly
    G02281249Courtesy of SUZUKI OF AMERICA CORP.
