Rear Mounting (for Front Differential Carrier) Removal & Installation: Installation

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Tighten rear mounting bolt (1), new rear mounting bracket bolts (2) and rear mounting bracket No. 2 bolts (3) to specified torque for reinstallation.
Tightening torque
1. Rear mounting bolt (a): 85 N.m (8.5 kg-m, 61.5 lb-ft)
2. Rear mounting bracket bolt (b): 90 N.m (9.0 kg-m, 65.0 lb-ft)
3. Rear mounting bracket No. 2 bolt (c): 55 N.m (5.5 kg-m, 40.0 lb-ft)

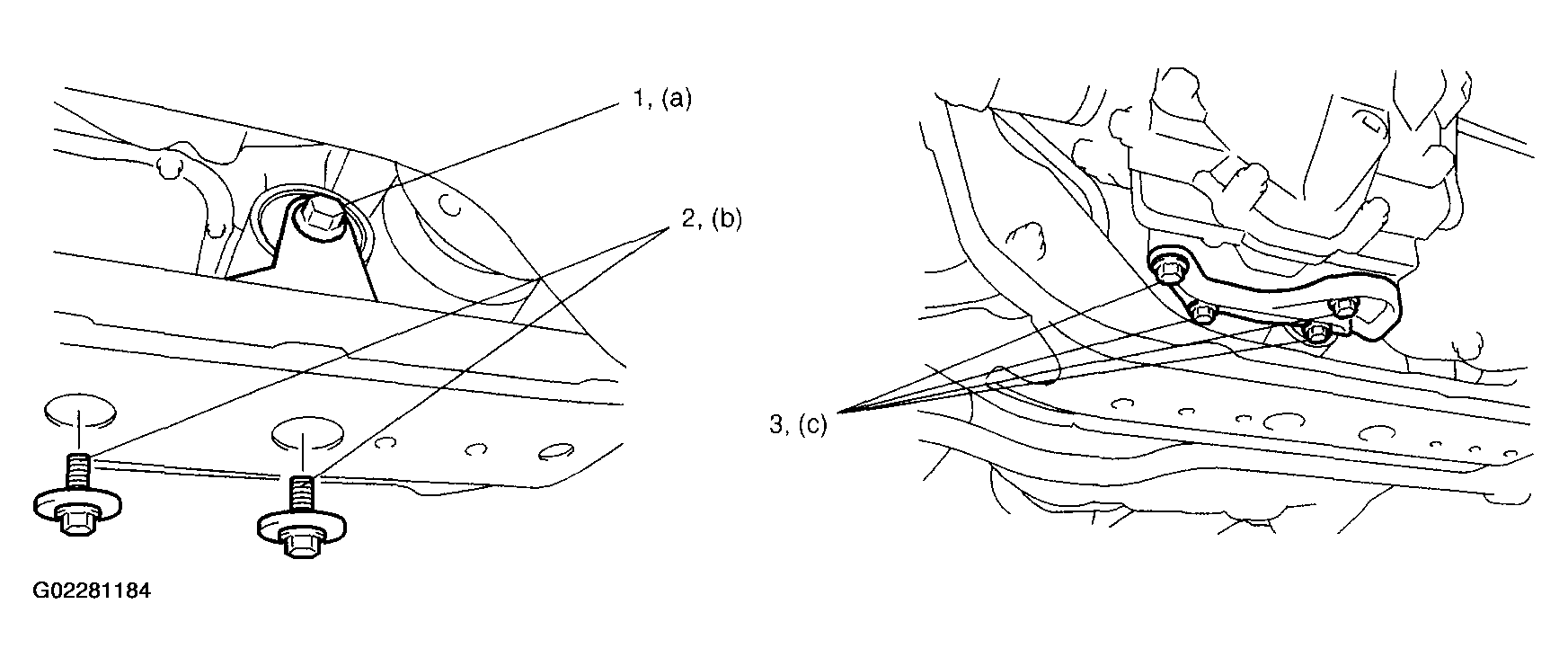

Fig 1: Installing Rear Mounting Bracket & Rear Mounting Bracket No. 2
Courtesy of SUZUKI OF AMERICA CORP.
