Cooling Fan & Fan Clutch Inspection

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Inspect fluid coupling for oil leakage.

If necessary, replace fan clutch assembly. Do not disassemble clutch assembly.

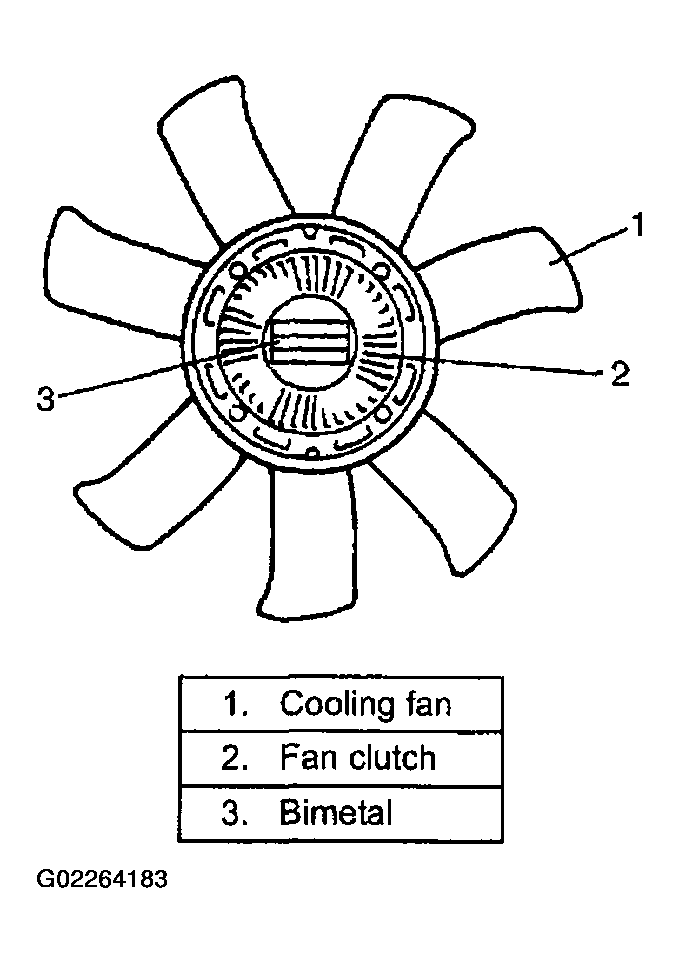

Fig 1: Inspecting Cooling Fan & Fan Clutch
G02264183Courtesy of SUZUKI OF AMERICA CORP.
