Front Speaker And Rear Speaker Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Remove inside handle bezel (1).
Remove inside lock knob and door inside pull handle case fitting screw.

Fig 1: Removing Inside Handle Bezel
Courtesy of SUZUKI OF AMERICA CORP.
Remove door trim (1).
With inside handle bezel (2) tilted as shown in figure, turn door trim (1) 90° clockwise to remove it. And disconnect power window switch lead wire at coupler.

Fig 2: Removing Door Trim
Courtesy of SUZUKI OF AMERICA CORP.
Remove 3 speaker mounting screws (1).
Remove speaker (2) from door (3).
Disconnect speaker coupler from speaker.

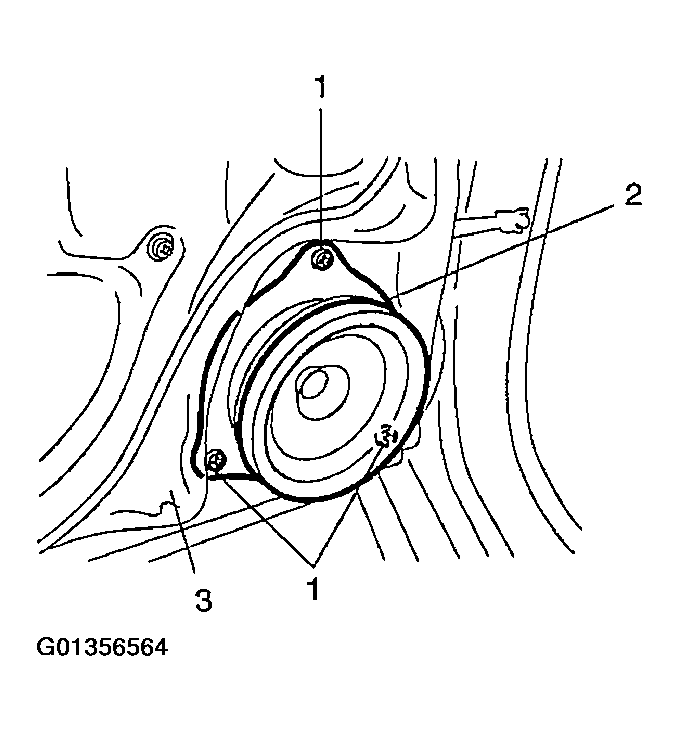

Fig 3: Removing Speaker

Courtesy of SUZUKI OF AMERICA CORP.
