Diagnostic Trouble Codes B1141:

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

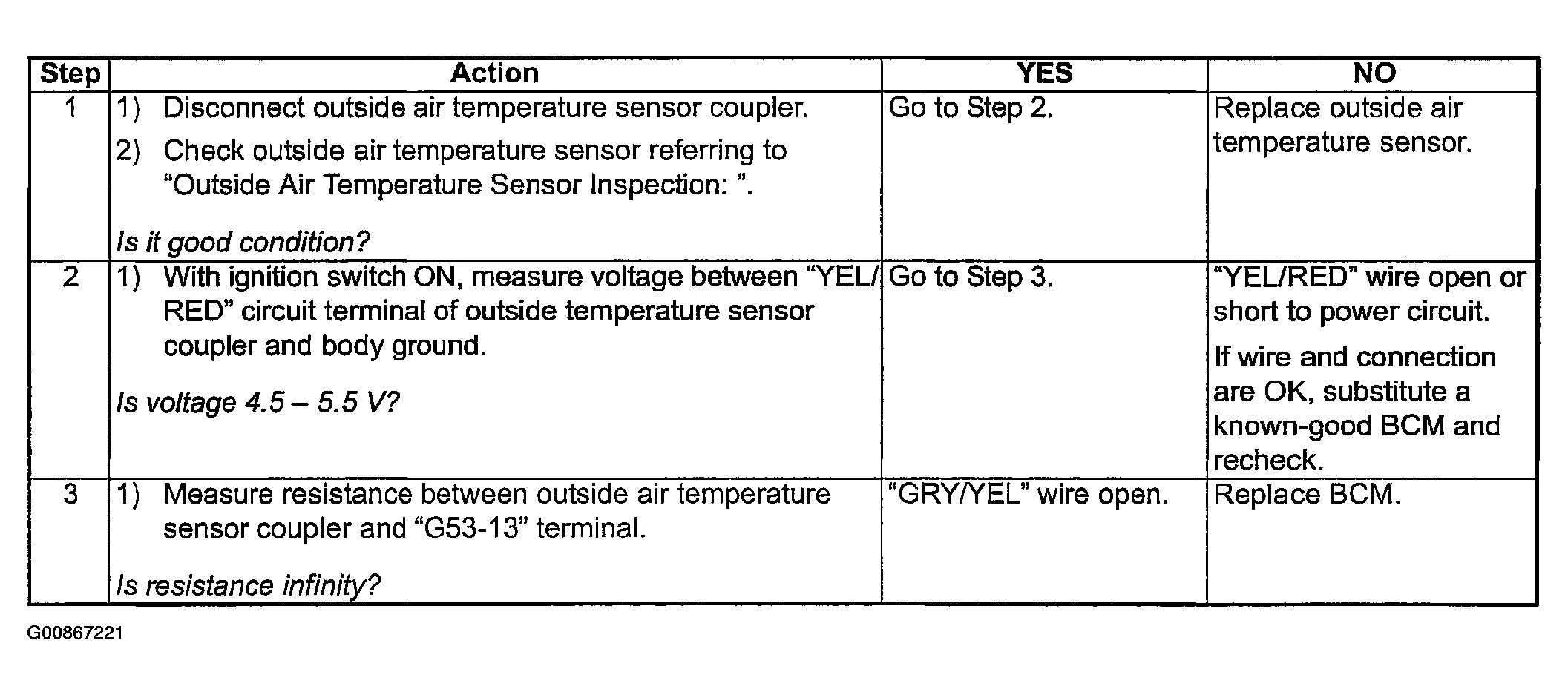

Fig 1: DTC Troubleshooting Chart
G00867221Courtesy of SUZUKI OF AMERICA CORP.
