Rear A/C No. 1 Duct: Removal

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear A/C unit referring to REAR A/C UNIT (REAR A/C EVAPORATOR) REMOVAL AND INSTALLATION FOR H27 ENGINE MODEL .
  2. Remove rear A/C No. 1 duct (1).

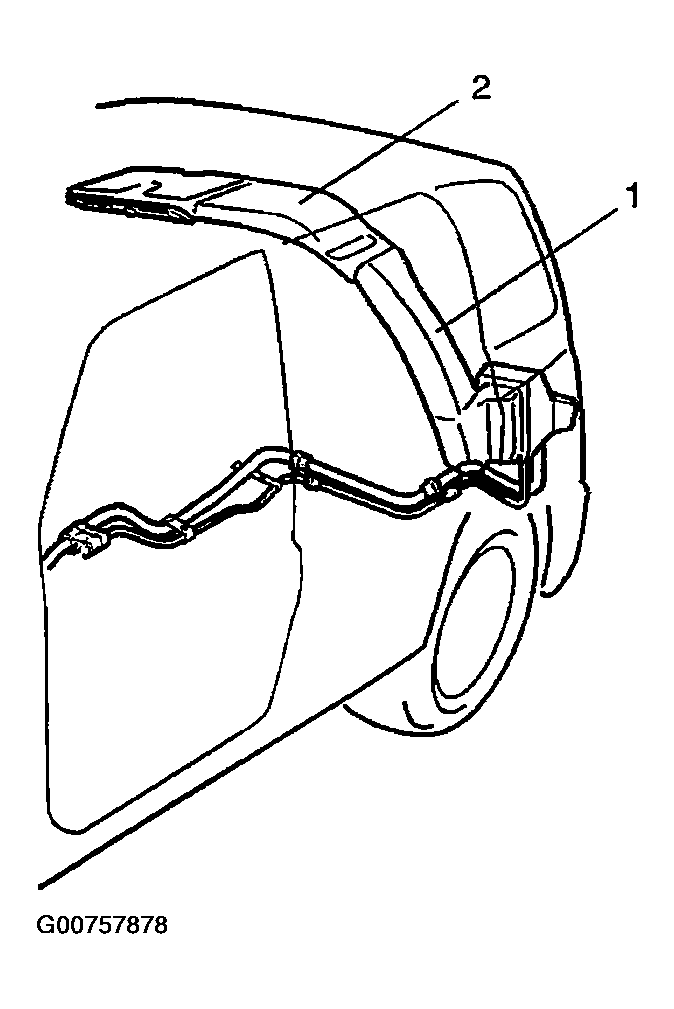

    Fig 1: Identifying Rear A/C No. 1 and No. 2 Ducts
    G00757878Courtesy of SUZUKI OF AMERICA CORP.
