Abnormal Noise Diagnosis

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

There are various types of noise, ranging from those produced in the engine compartment to those from the passenger compartment, also from rumbling noises to whistling noises.

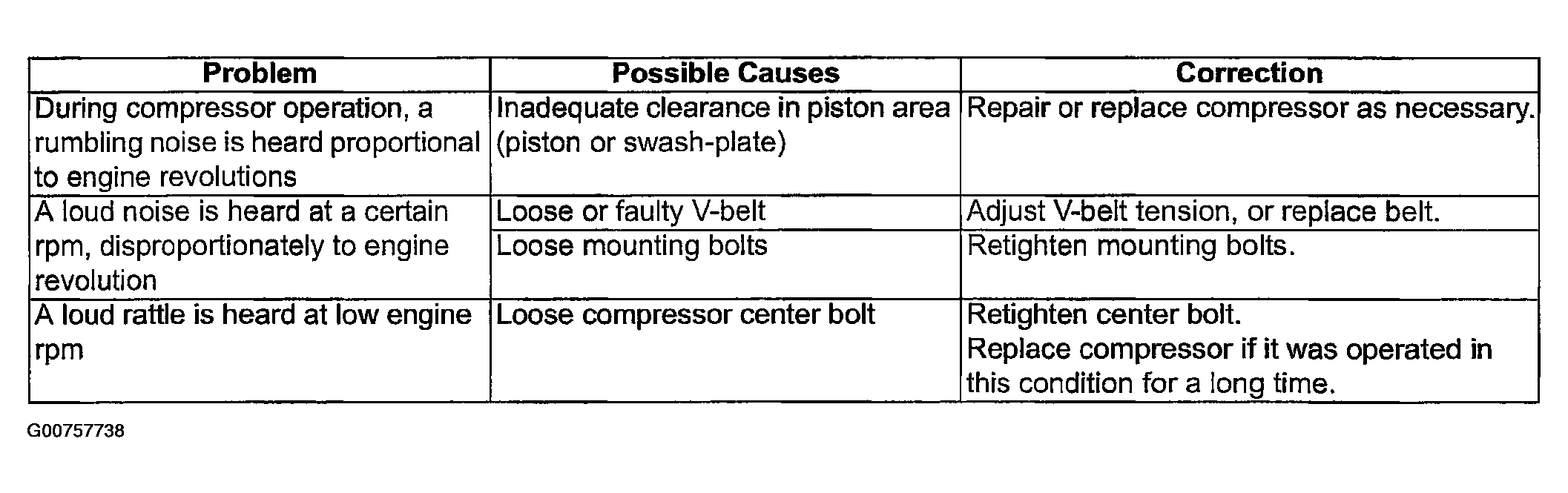

Fig 1: Abnormal Noise From Compressor Diagnosis Chart

G00757738

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Abnormal Noise from Magnetic Clutch Diagnosis Chart (1 Of 2)

G00757739

Courtesy of SUZUKI OF AMERICA CORP.

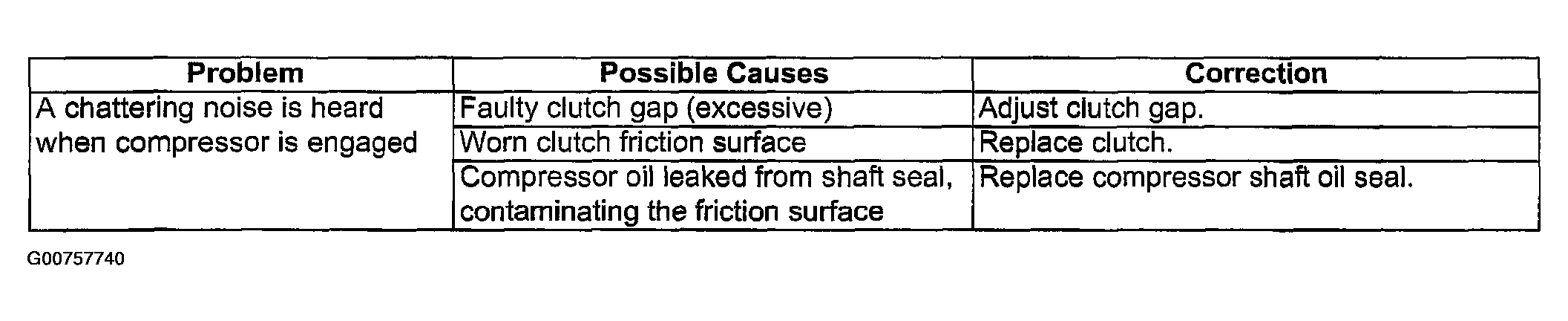

Fig 3: Abnormal Noise from Magnetic Clutch Diagnosis Chart (2 Of 2)

G00757740

Courtesy of SUZUKI OF AMERICA CORP.

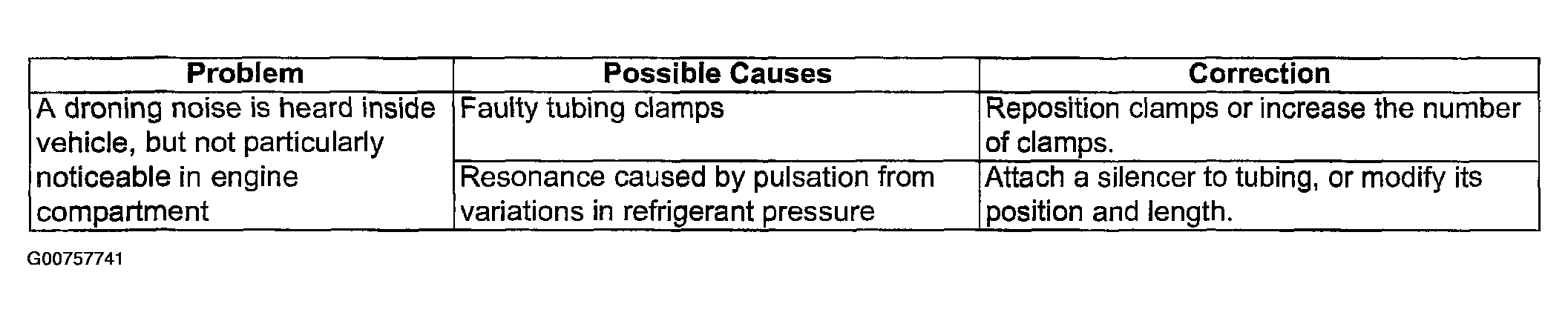

Fig 4: Abnormal Noise From Tubing Diagnosis Chart

G00757741

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Abnormal Noise From Condenser Diagnosis Chart

G00757742

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: Abnormal Noise From Crankshaft Pulley Diagnosis Chart

G00757743

Courtesy of SUZUKI OF AMERICA CORP.

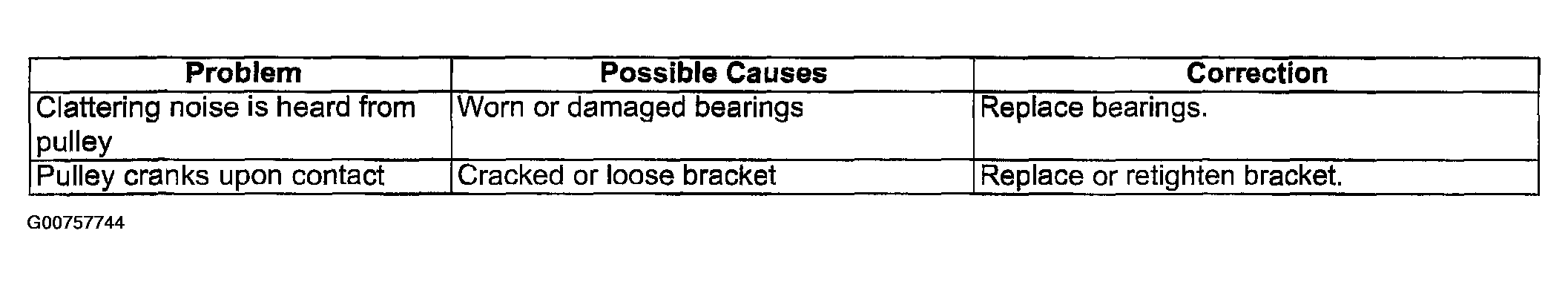

Fig 7: Abnormal Noise From Tension Pulley Diagnosis Chart

G00757744

Courtesy of SUZUKI OF AMERICA CORP.

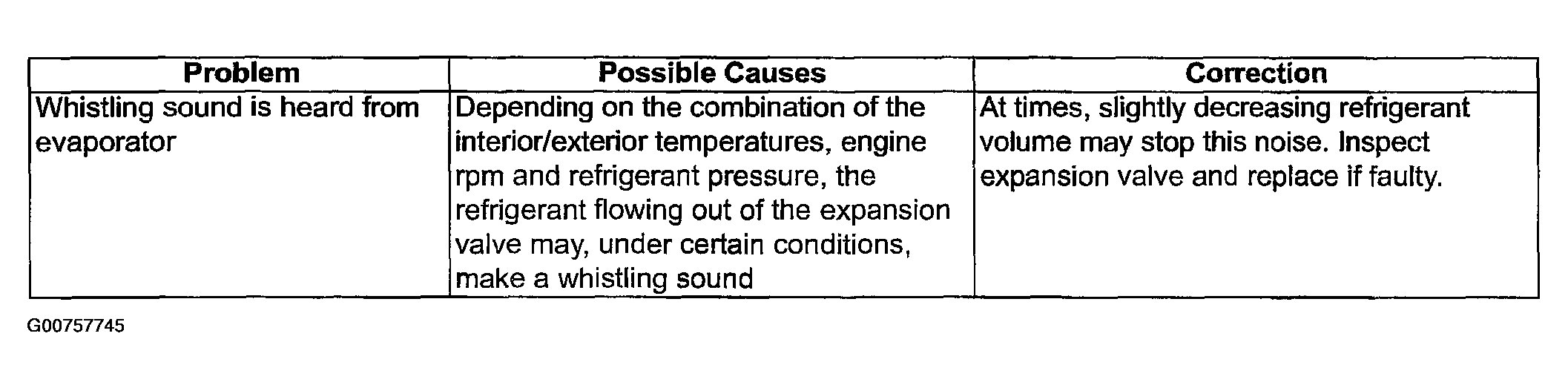

Fig 8: Abnormal Noise From Evaporator Diagnosis Chart

G00757745

Courtesy of SUZUKI OF AMERICA CORP.

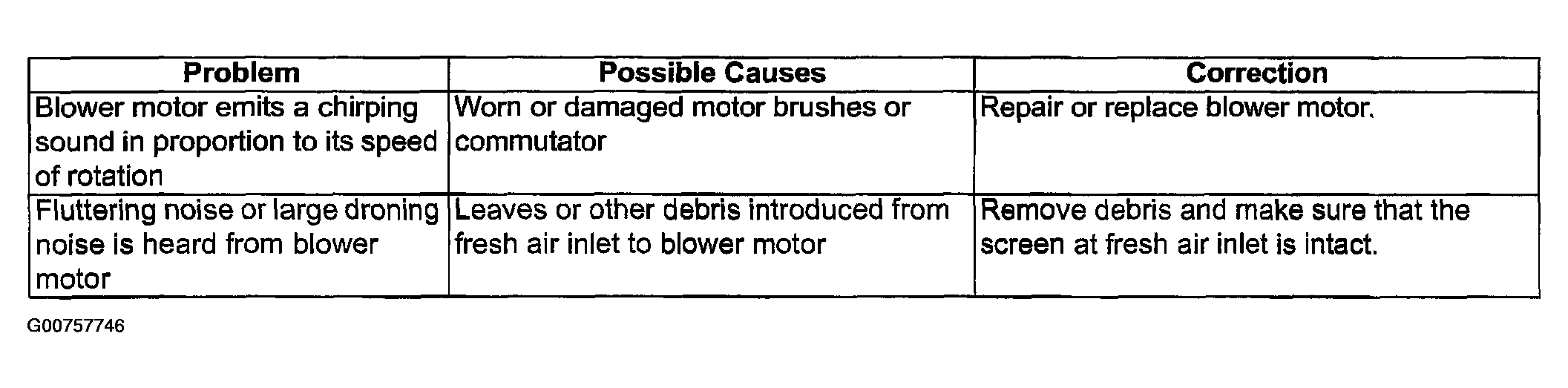

Fig 9: Abnormal Noise From Blower Motor Diagnosis Chart

G00757746

Courtesy of SUZUKI OF AMERICA CORP.
