Main Bearings, Crankshaft And Cylinder Block Components

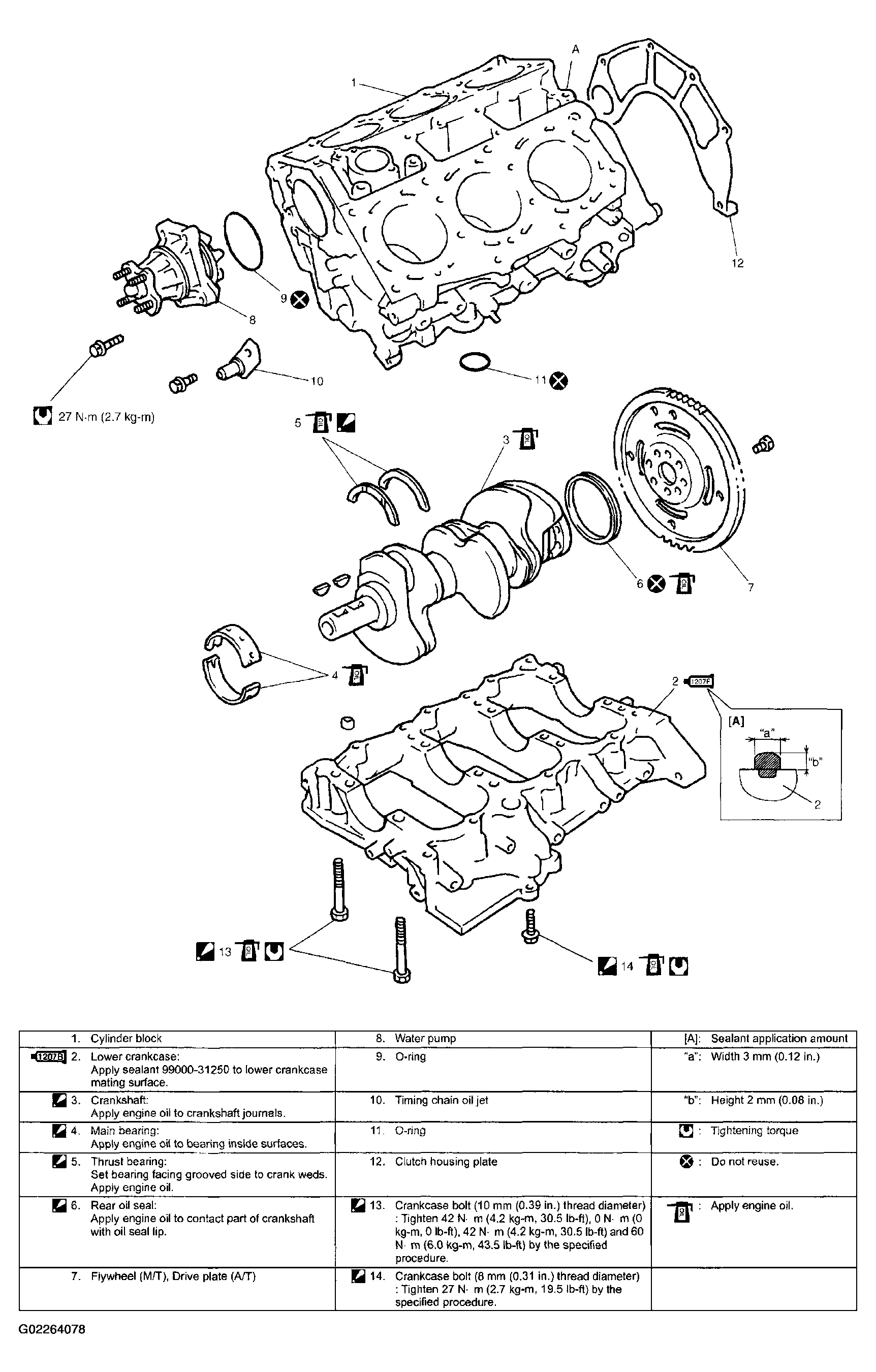

Fig 1: Exploded View Of Main Bearings, Crankshaft & Cylinder Block Components

G02264078

Courtesy of SUZUKI OF AMERICA CORP.
