1st Timing Chain & Chain Tensioner Components

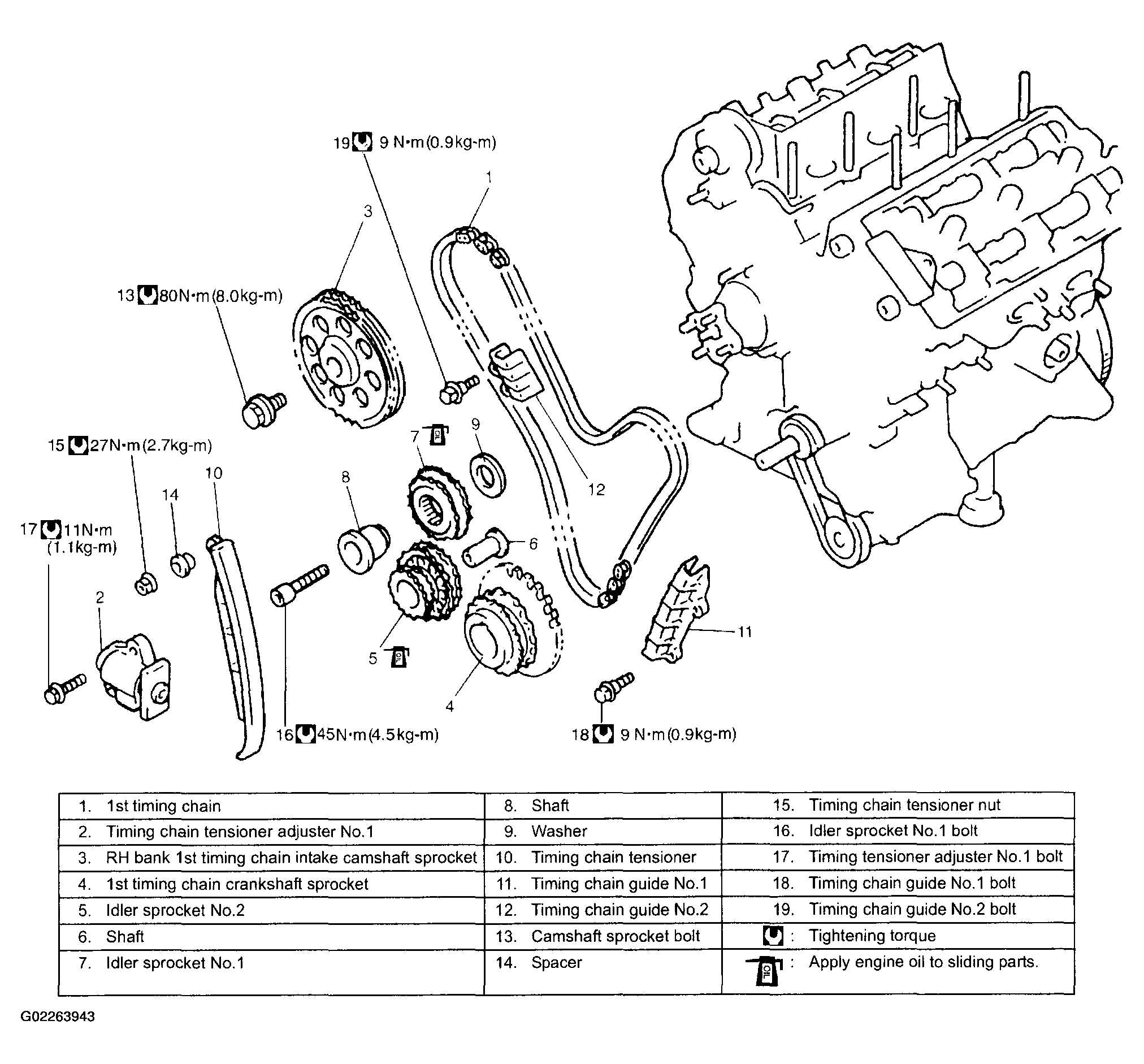

Fig 1: Exploded View Of 1st Timing Chain & Chain Tensioner Components

G02263943

Courtesy of SUZUKI OF AMERICA CORP.
