Upper Rod: Removal

  1. Raise and support vehicle. Remove wheels. Use jack to support axle assembly.
  2. On 2.5L models, if equipped with ABS, disconnect wheel speed sensor harness clamp from left upper rod.

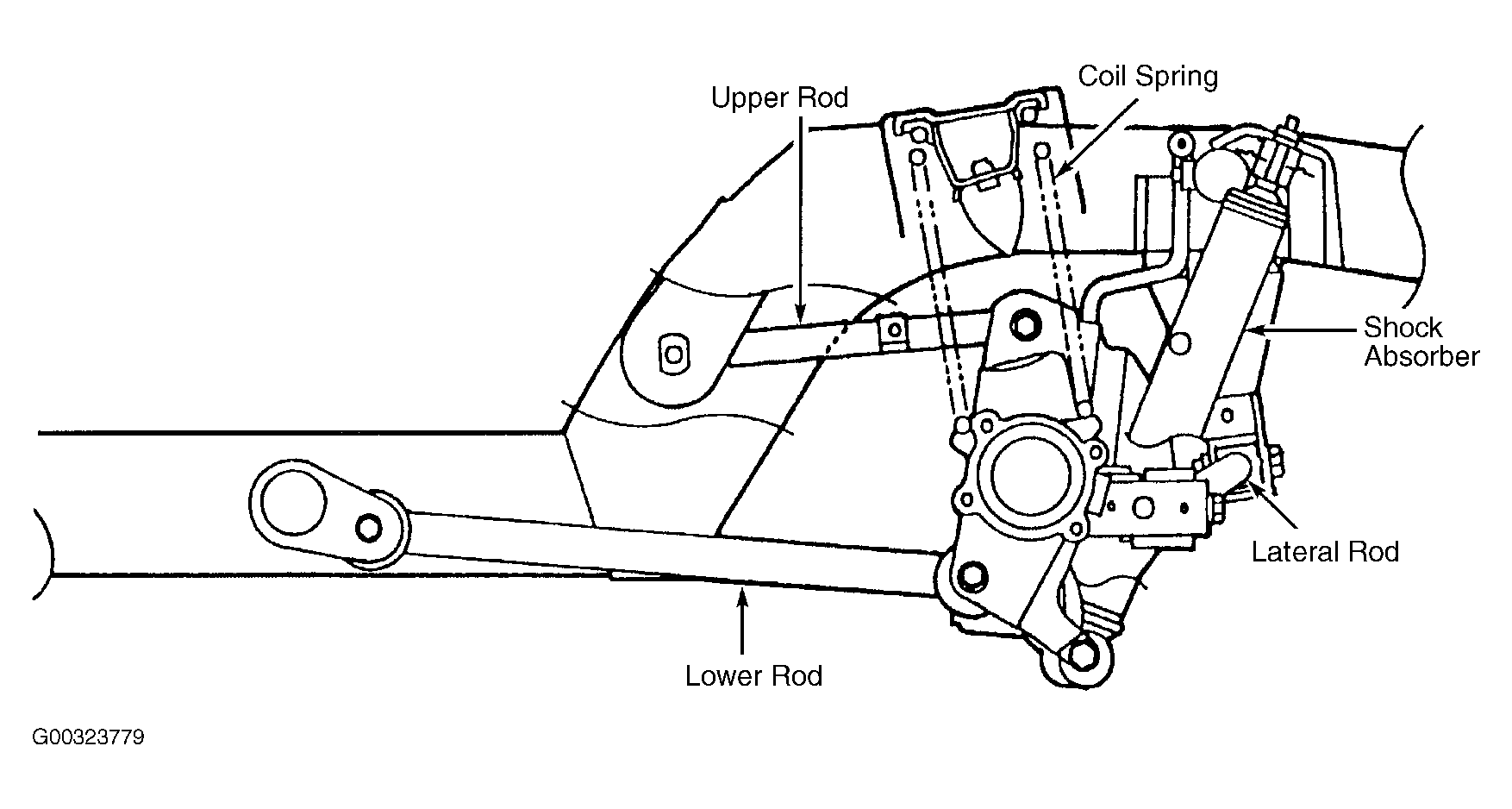

  3. On all models, remove bolts attaching upper rod to body and axle housing. See Figure . Remove upper rod.
