Test G: Rear A/C System Diagnosis
>>
Rear Blower Motor Inoperative
Rear Blower Motor Inoperative

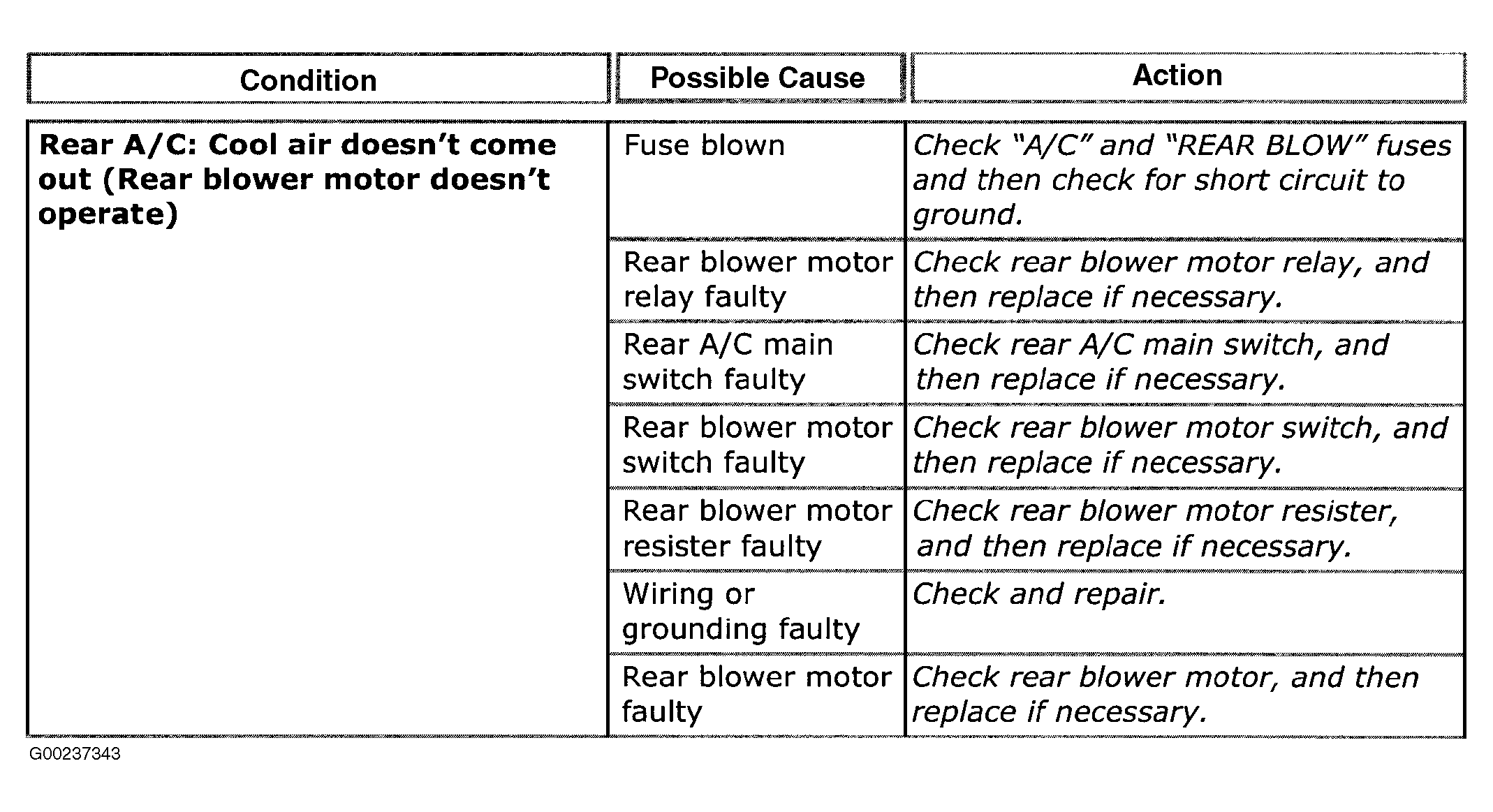

Fig 1: Rear Blower Motor Inoperative
Courtesy of SUZUKI OF AMERICA CORP.
