No Cold Air From Ducts (A/C Inoperative)

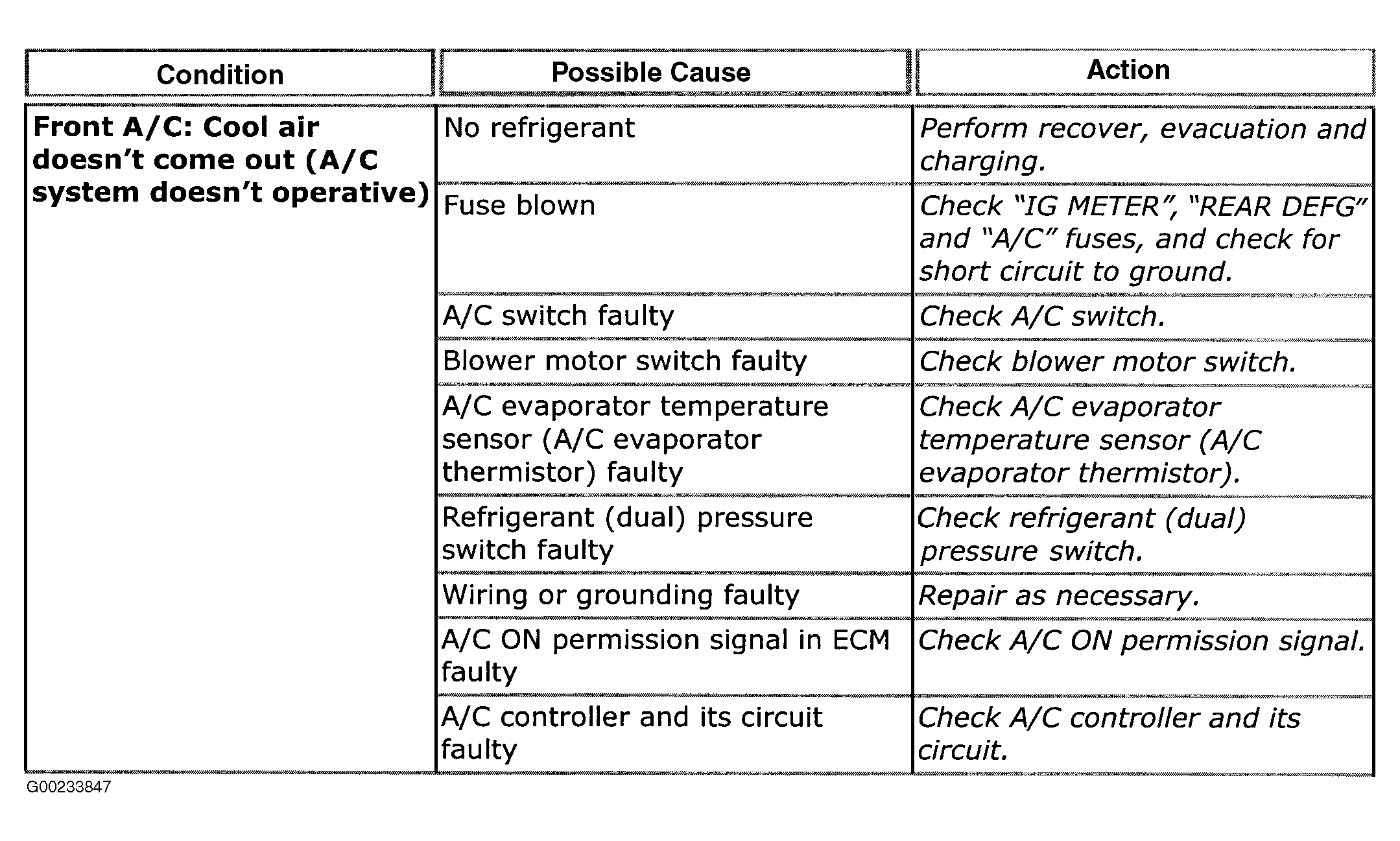

Fig 1: No Cold Air From Ducts (A/C Inoperative)

G00233847

Courtesy of SUZUKI OF AMERICA CORP.
