Engine Mechanical
>>
Cooling System (Mechanical)
>>
Specifications & Drive Belt Routing
>>
Belt Routing
>>
Esteem 1.6L & Swift
Esteem 1.6L & Swift

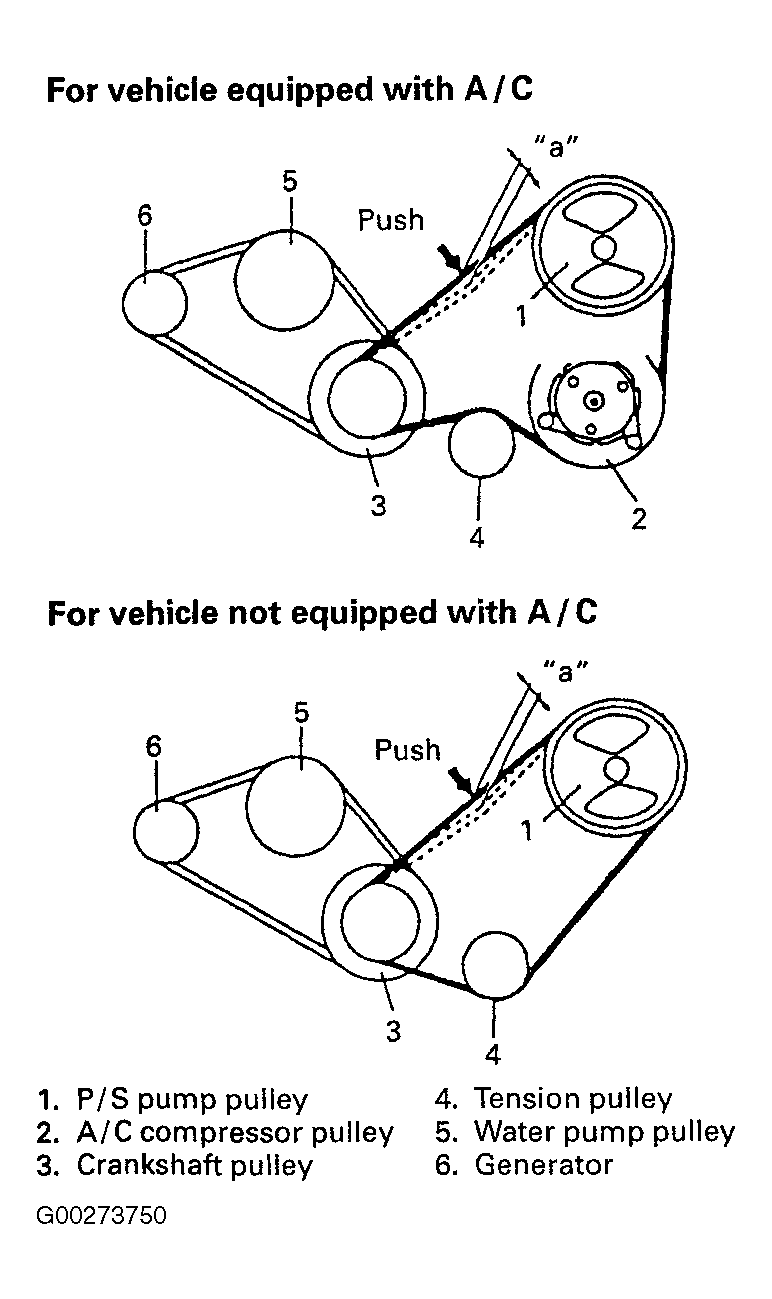

Fig 1: A/C Belt Routing (Esteem 1.6L & Swift)
Courtesy of SUZUKI OF AMERICA CORP.

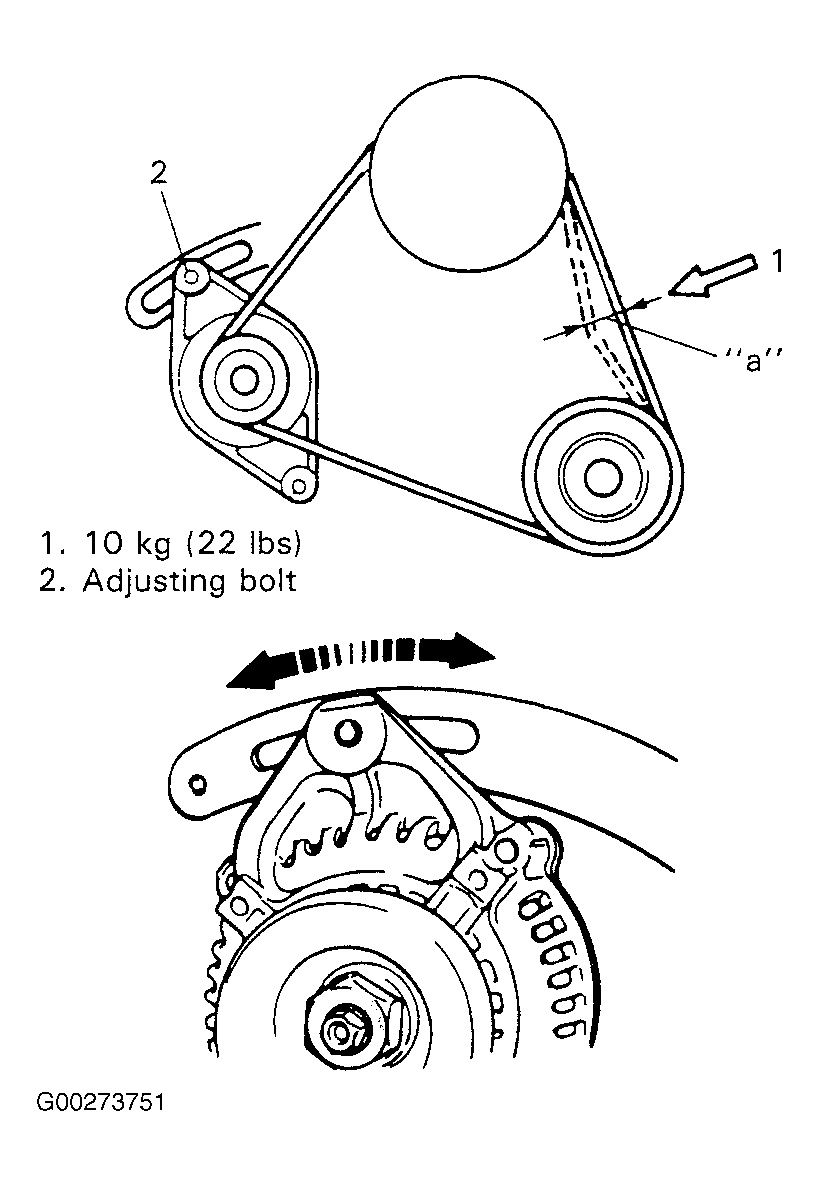

Fig 2: Power Steering Belt Routing (Esteem 1.6L & Swift)
Courtesy of SUBARU OF AMERICA, INC.

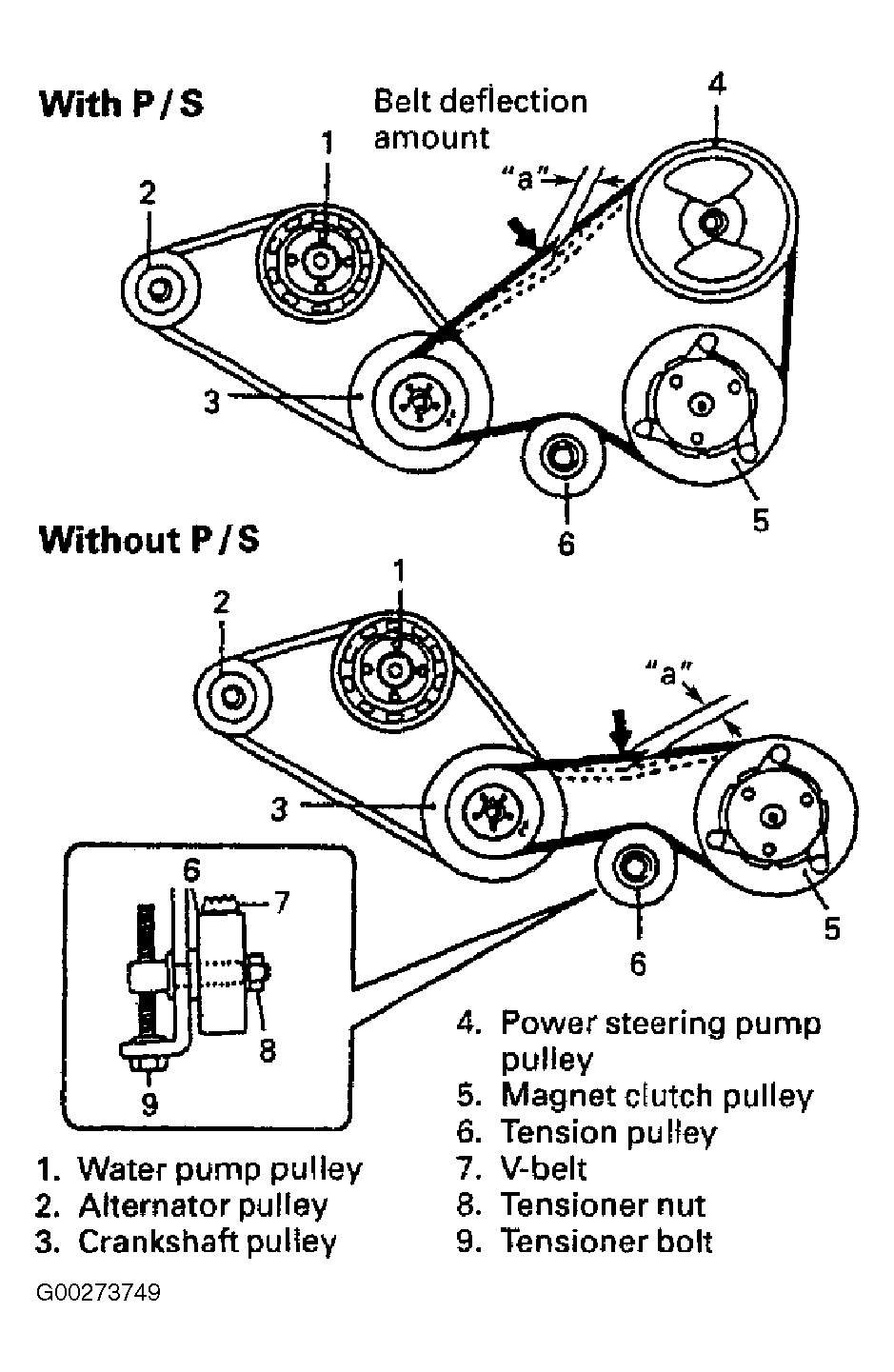

Fig 3: Water Pump Belt Routing (Esteem 1.6L & Swift)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUZUKI OF AMERICA CORP.
