Sun Roof Motor
- Disconnect negative battery cable. Remove interior headliner. See HEADLINER
in REMOVAL & INSTALLATION. Remove sun roof switch panel. Remove sun roof motor assembly. See SUN ROOF MOTOR
in REMOVAL & INSTALLATION.

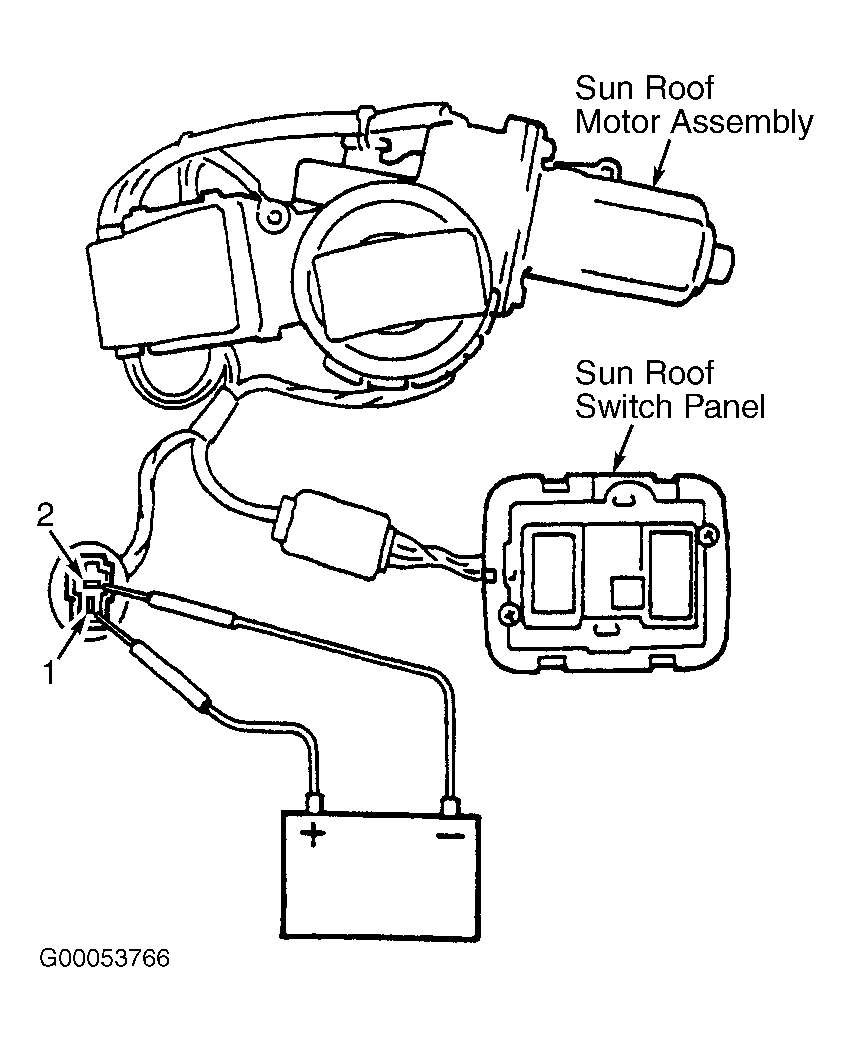

- Connect sun roof switch panel 6-pin connector to sun roof motor 6-pin connector. See Fig 1
. Using jumper wires, connect battery voltage across sun roof motor 2-pin harness connector terminals as shown. See Fig 1
.

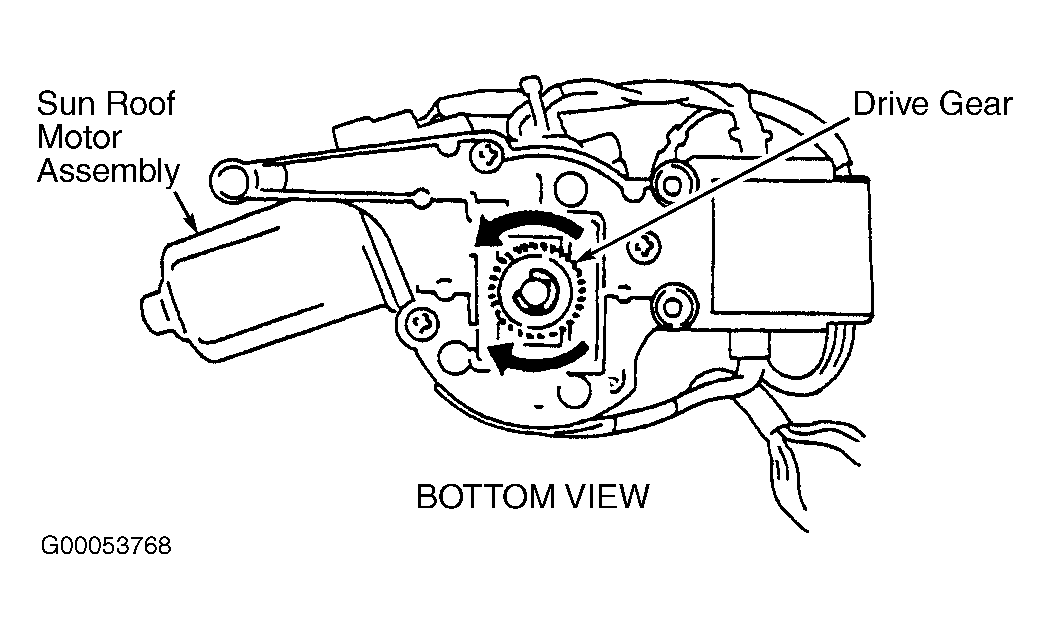

- While depressing appropriate sun roof switch panel switch in specified position, check sun roof motor drive gear direction of rotation. See Fig 2
. See SUN ROOF MOTOR CHECK
table. If sun roof motor does not operate, or does not turn in correct direction of rotation as specified, replace sun roof motor and drive gear assembly.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP. SUN ROOF MOTOR CHECK
| Switch Position |
Direction Of Rotation |
| Tilt Up |
Clockwise |
| Tilt Down |
Counterclockwise |
| Slide Open |
Counterclockwise |
| Slide Closed |
Clockwise |
