Grand Vitara, Vitara & XL7

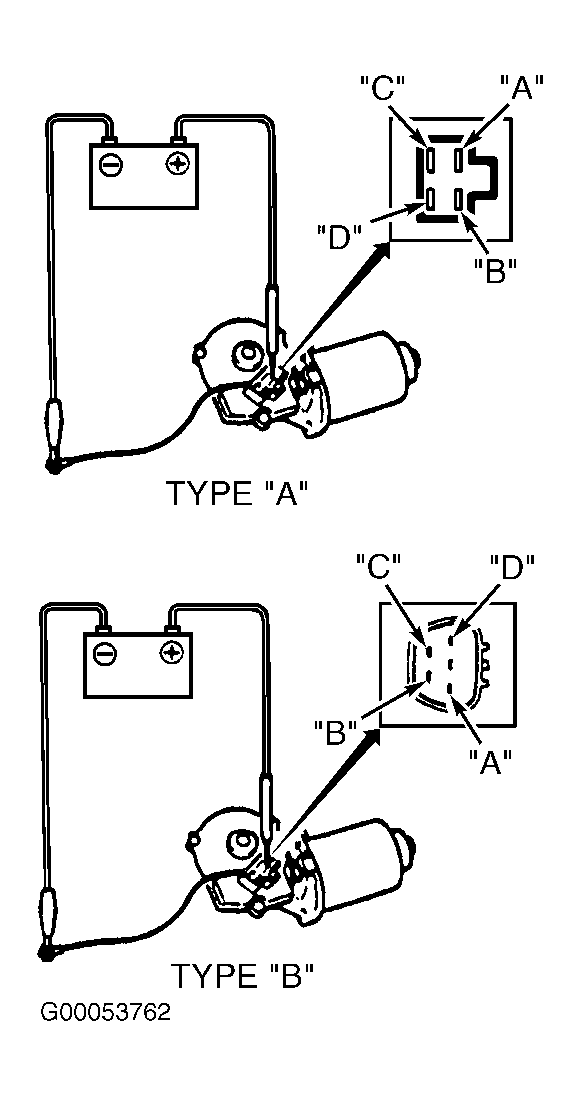

- Disconnect negative battery cable. Disconnect front wiper motor harness connector. Using jumper wires, connect 12-volt source to front wiper motor terminal "A". See Fig 1
. Connect ground to wiper motor chassis ground (Black wire at wiper motor mounting bolt). Wiper motor should operate at low speed, or about 45-55 RPM. Replace front wiper motor if operation is not as specified. See WIPER MOTOR
under REMOVAL & INSTALLATION. If wiper motor operation is as specified, go to next step.
- Remove jumper wire from terminal "A" and connect to wiper motor terminal "B". See Fig 1
. Wiper motor should operate at high speed, or about 67-83 RPM. Replace front wiper motor if operation is not as specified. See WIPER MOTOR
under REMOVAL & INSTALLATION. If wiper motor operation is as specified, go to next step.
- Using additional jumper wire, connect wiper motor terminals "A" and "D". Connect 12-volt source jumper wire to wiper motor terminal "C". Wiper motor should make one revolution and wiper arm should stop in park position. Go to next step.
- Remove jumper wire from wiper motor terminals "A" or "D", then reconnect. Wiper motor should complete one revolution, and stop in park position. Repeat 2 more times. Replace front wiper motor if motor does not return to park position consistently. See WIPER MOTOR
under REMOVAL & INSTALLATION.
Courtesy of SUZUKI OF AMERICA CORP.
