Removal & Installation (Grand Vitara, Vitara & XL7)

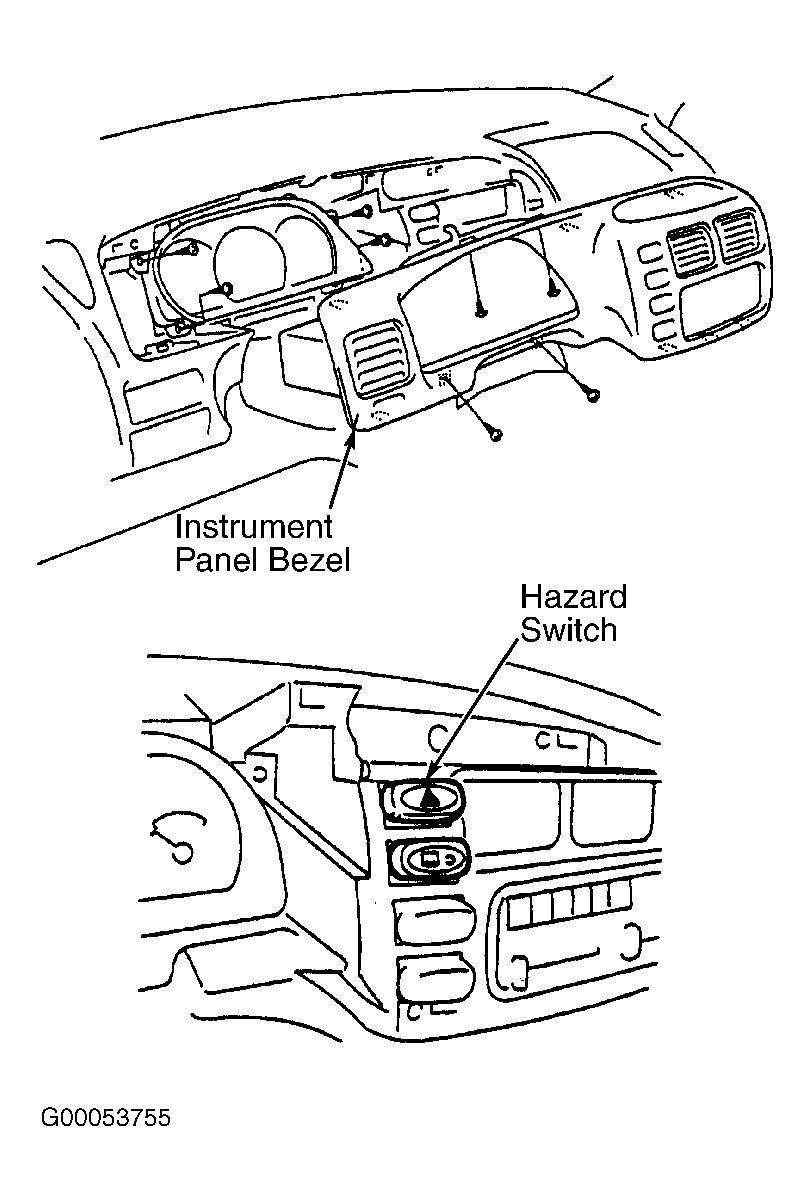

Move steering column to lowest position. Remove instrument panel cover screws. Remove instrument panel cover. See Fig 1. Pull hazard warning switch out from dashboard. Disconnect hazard warning switch electrical connector. To install, reverse removal procedure.
