Diagnostic Aids

An intermittent condition is likely to be caused by poor connection at driver-side air bag terminal No. D1 and D2, contact coil terminal No. C1 and C2, SDM terminal No. A9 and A10, or open in CKT G/R or CKT G.

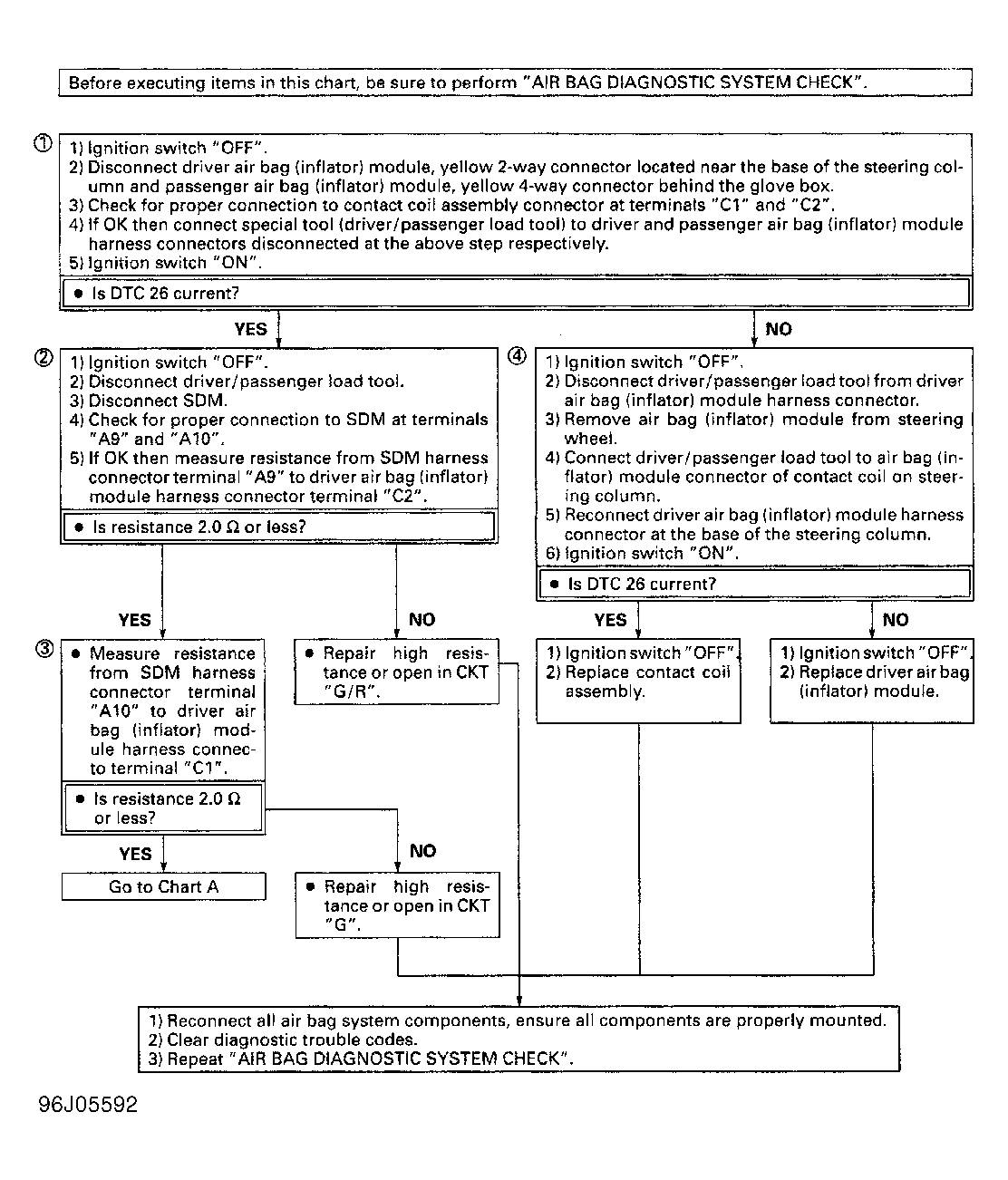

Fig 1: DTC 26: Driver-Side Initiator Circuit Open

Courtesy of SUZUKI MOTOR CORP.
