Diagnostic Aids

An intermittent condition is likely to be caused by short to ground in driver-side air bag circuits. Inspect CKT G/R and CKT G, for cutting or chafing. If wiring pigtail of contact coil or driver-side air bag is damaged, the component must be replaced.

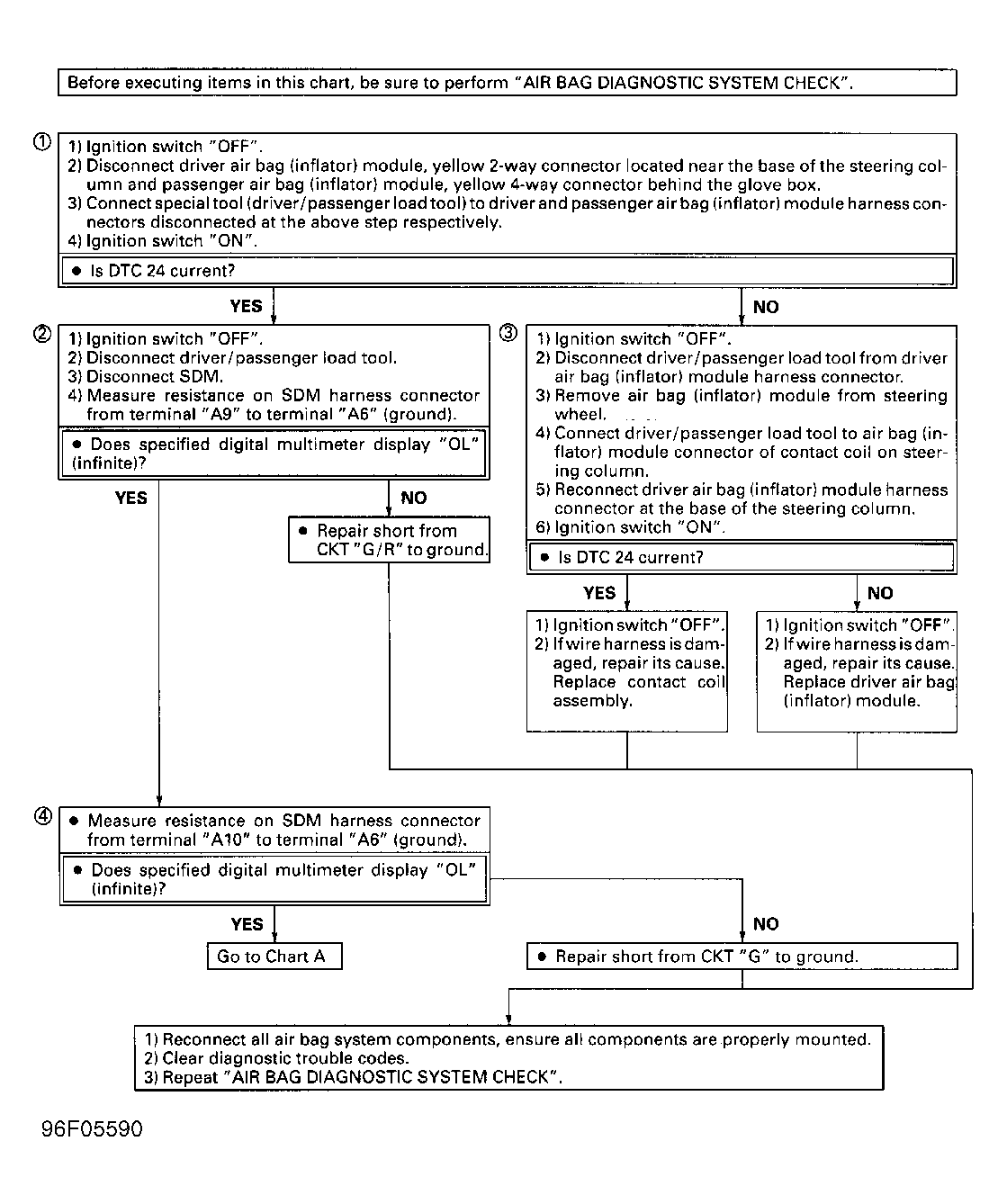

Fig 1: DTC 24: Driver-Side Initiator Circuit Short To Ground

Courtesy of SUZUKI MOTOR CORP.
