Diagnostic Aids

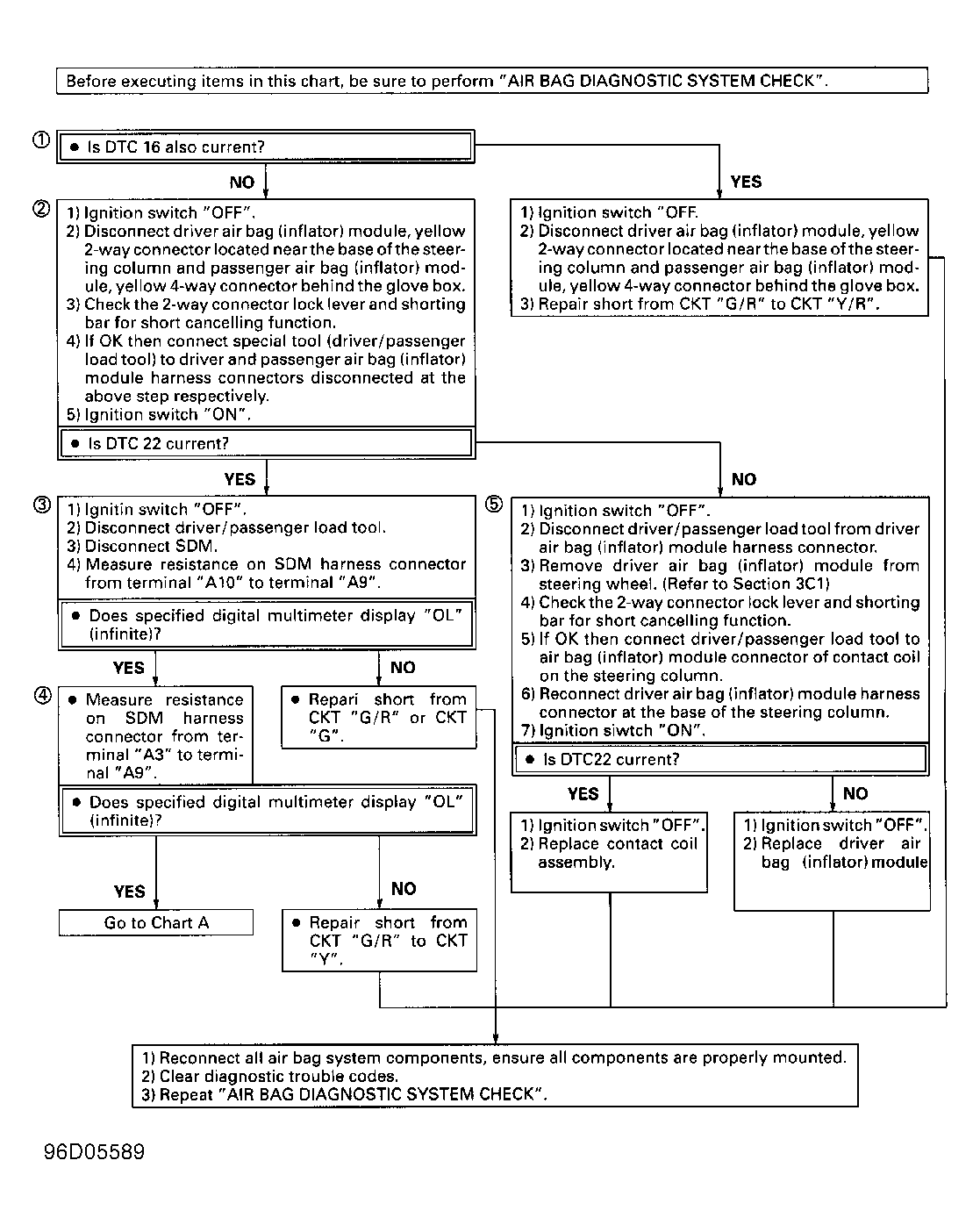

An intermittent condition is likely to be caused by short between CKT G/R and CKT G, CKT Y/R or CKT Y, or a malfunctioning shorting bar on driver-side air bag or contact coil assembly which would cause replacement of the component. Test for DTC is only run while AIR BAG warning lamp is performing bulb check, unless DTC 17 or DTC 26 is detected. When scan tool CLEAR CODES command is issued and malfunction still present, DTC will not reappear until next ignition cycle.
