Diagnostic Aids

An intermittent condition is likely to be caused by short to ground in passenger air bag circuits. Inspect CKT Y/R or Y for cutting or chaffing. If wiring pigtail of passenger-side air bag is damaged, components must be replaced.

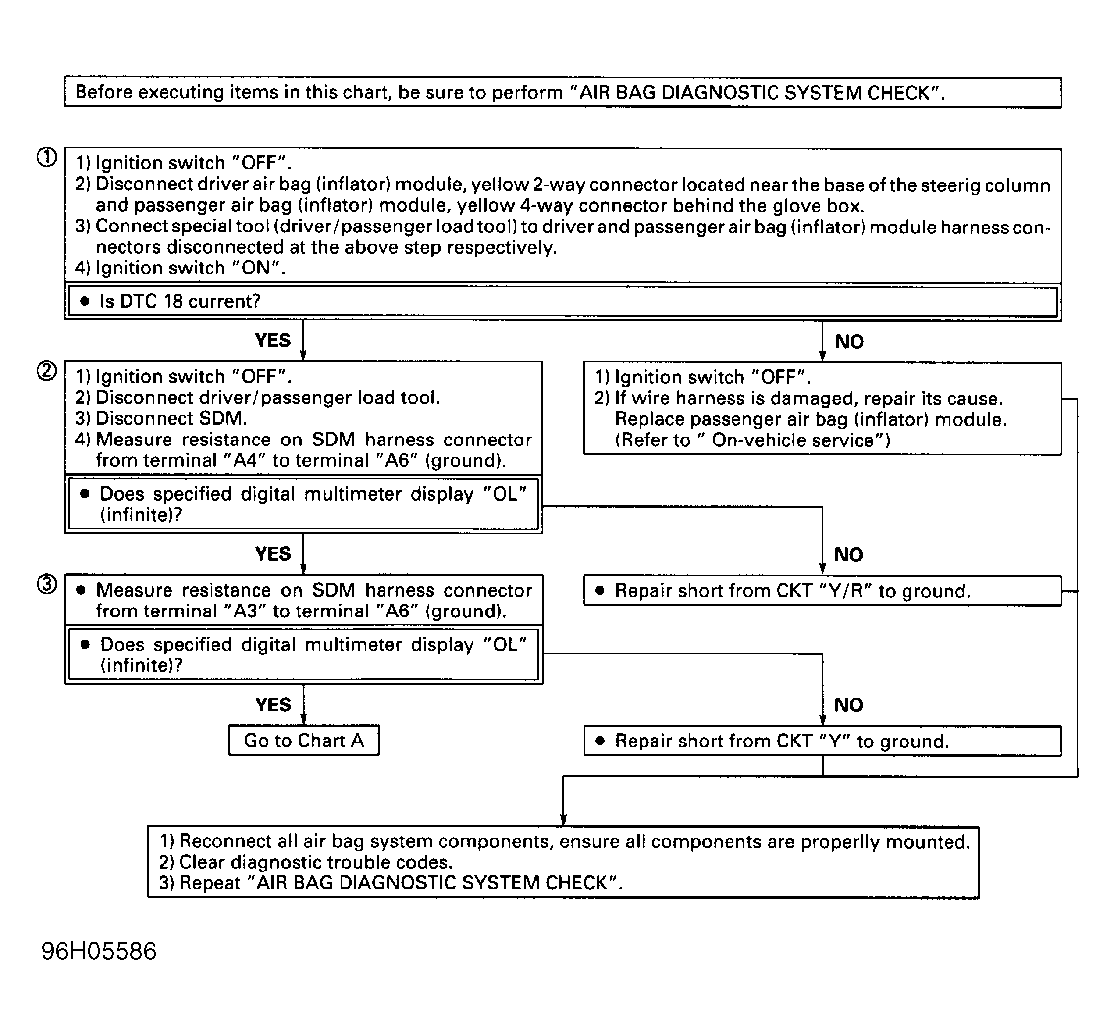

Fig 1: DTC 18: Passenger-Side Initiator Circuit Short To Ground

Courtesy of SUZUKI MOTOR CORP.
