Diagnostic Aids

An intermittent condition is likely to be caused by poor connection at terminal No. B1 and B2 of passenger-side air bag, SDM terminal No. A3 and A4, or poor wire to terminal connection in CKT Y/R or Y.

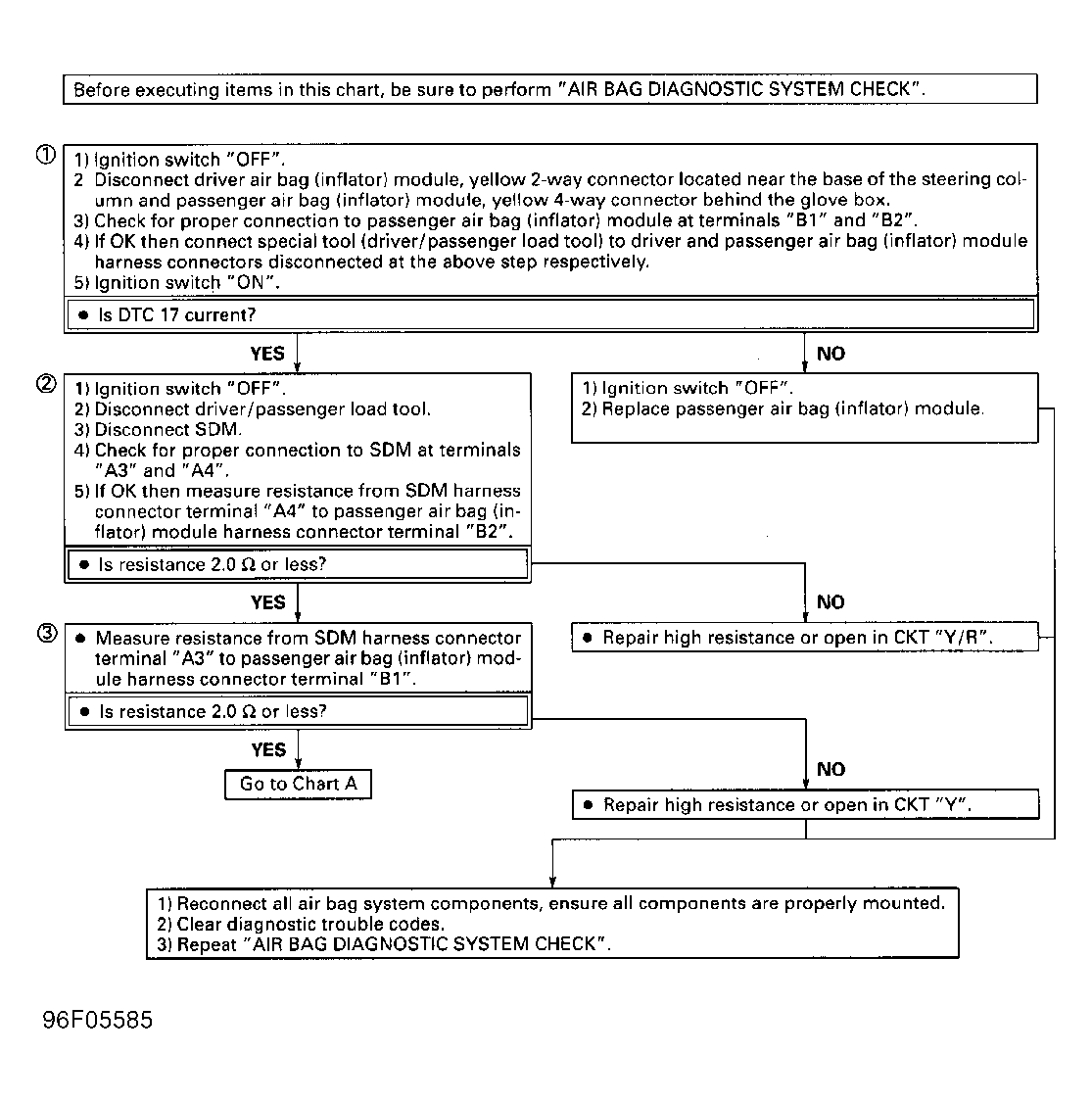

Fig 1: DTC 17: Passenger-Side Initiator Circuit Open
G96F05585Courtesy of SUZUKI MOTOR CORP.
